- Heavy-duty, chemical resistant polyethylene tank with 1.3 Specific Gravity (SG)
- Fully draining sump for complete drainage and decontamination
- 455mm hinged lid with basket filter
- No spill containment lip around lid
- 2″ MBSP poly outlet fitted
- Easy to read calibrated measurements
- Hot-dip galvanised steel frame for correct tank support
- Steel support frame required to give sump clearance
- 4 mounting pins supplied for easy & secure mounting
- 25-Year Tank Warranty

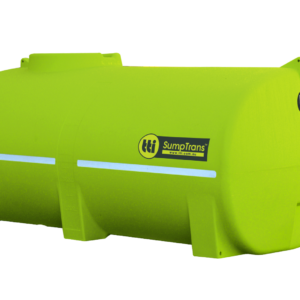

- Available Without Steel Frame – Tank Only
| Tank Only | With Frame | |
| Weight: | 314.93kg | 514.02kg |
| Length: | 2761mm | 2761mm |
| Width: | 2000mm | 2000mm |
| Height: | 1520mm | 1561mm |
SumpTrans™

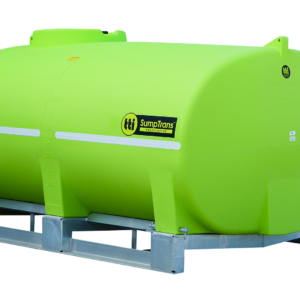

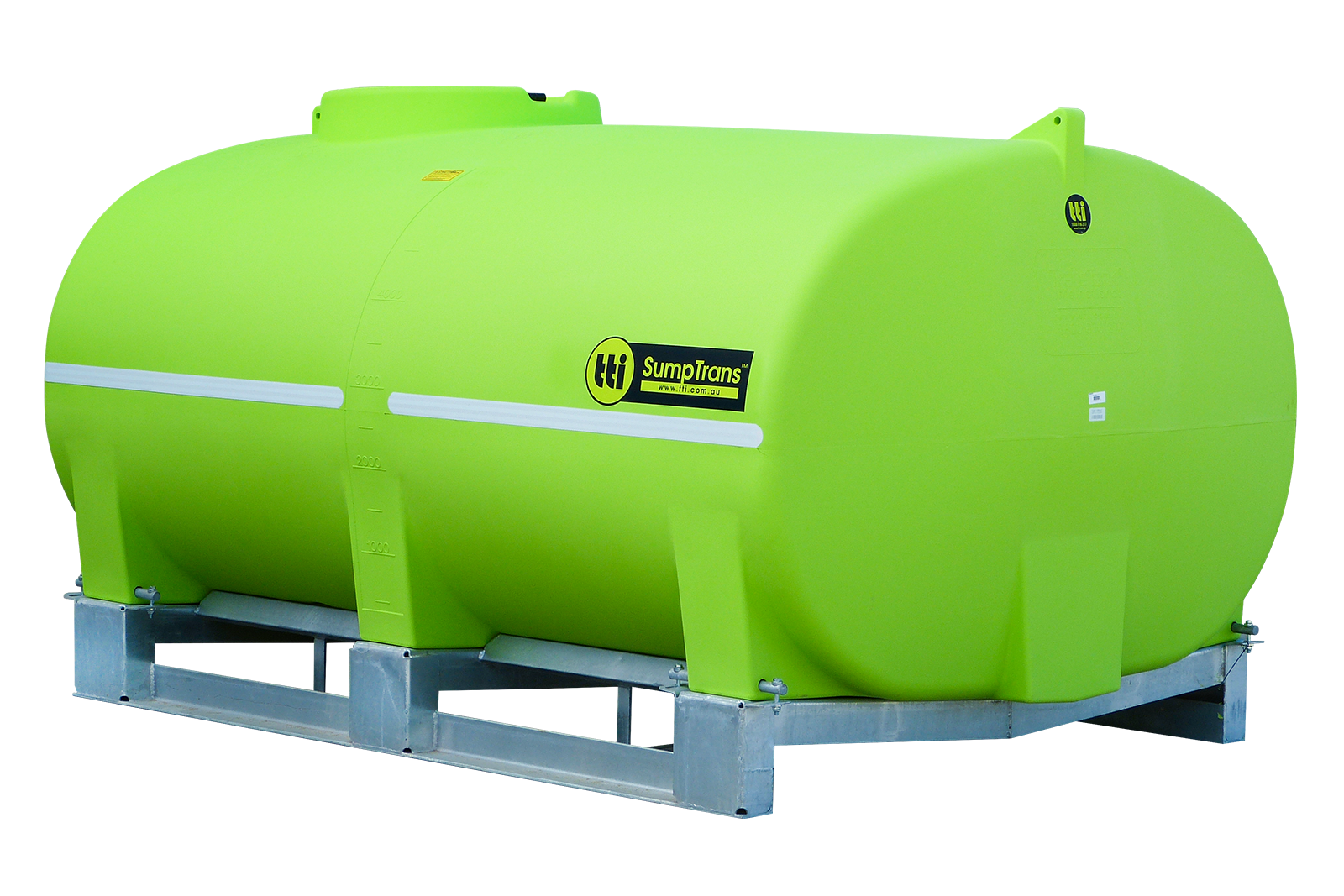

5000L SumpTrans™ Fully-Drainable Spray Tank
5000L SumpTrans™
PRICING DISPLAYED IS THE FROM PRICE. COST MAY VARY DUE TO OPTIONAL INCLUSIONS
1800 816 277
Contact our team to find out:
- If this product is right for you
- Info and pricing on options & accessories
- Stock availability & delivery timeframe
- More about our nation-wide subsidised freight
- Heavy-duty, chemical resistant polyethylene tank with 1.3 Specific Gravity (SG)
- Fully draining sump for complete drainage and decontamination
- 455mm hinged lid with basket filter
- No spill containment lip around lid
- 2″ MBSP poly outlet fitted
- Easy to read calibrated measurements

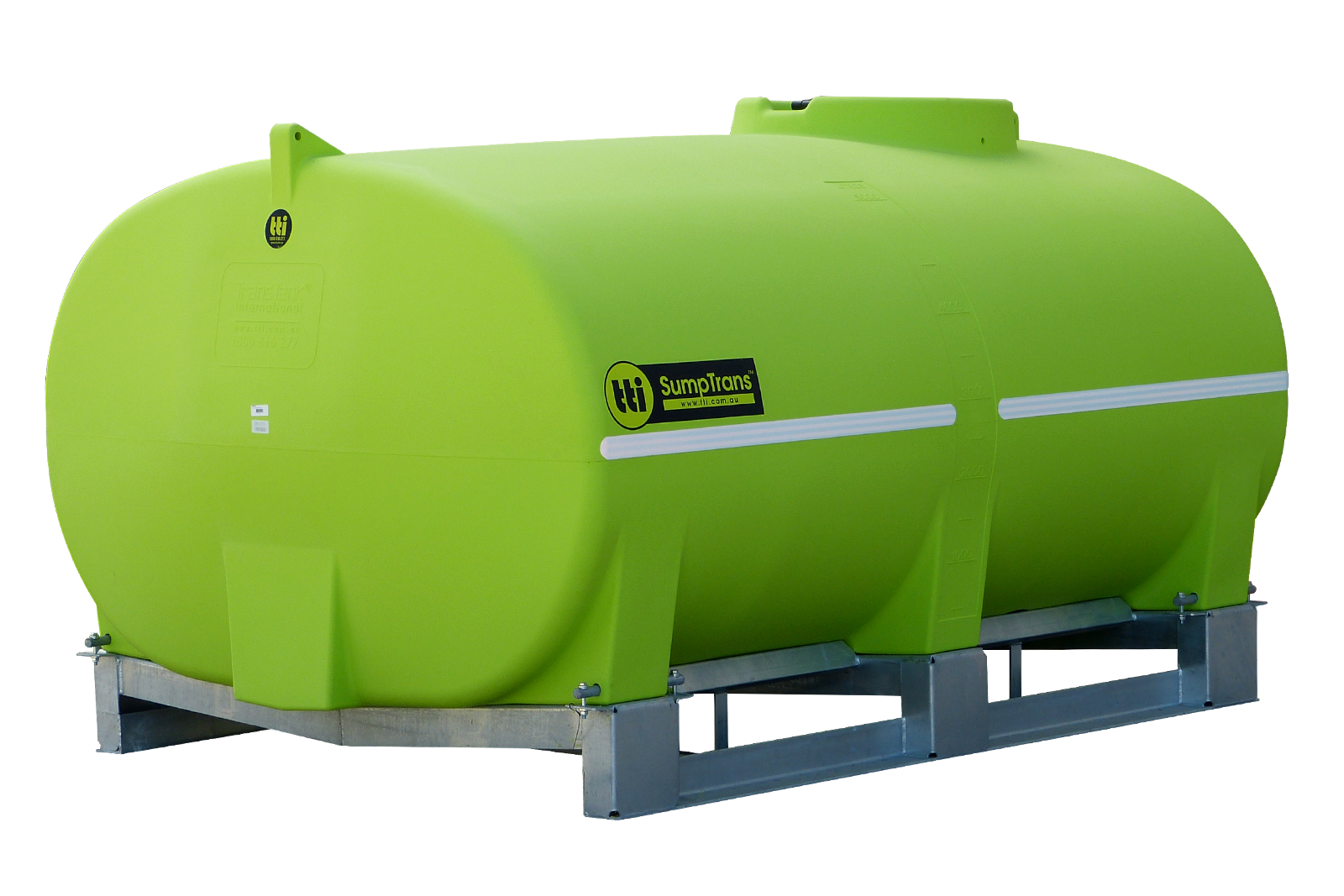

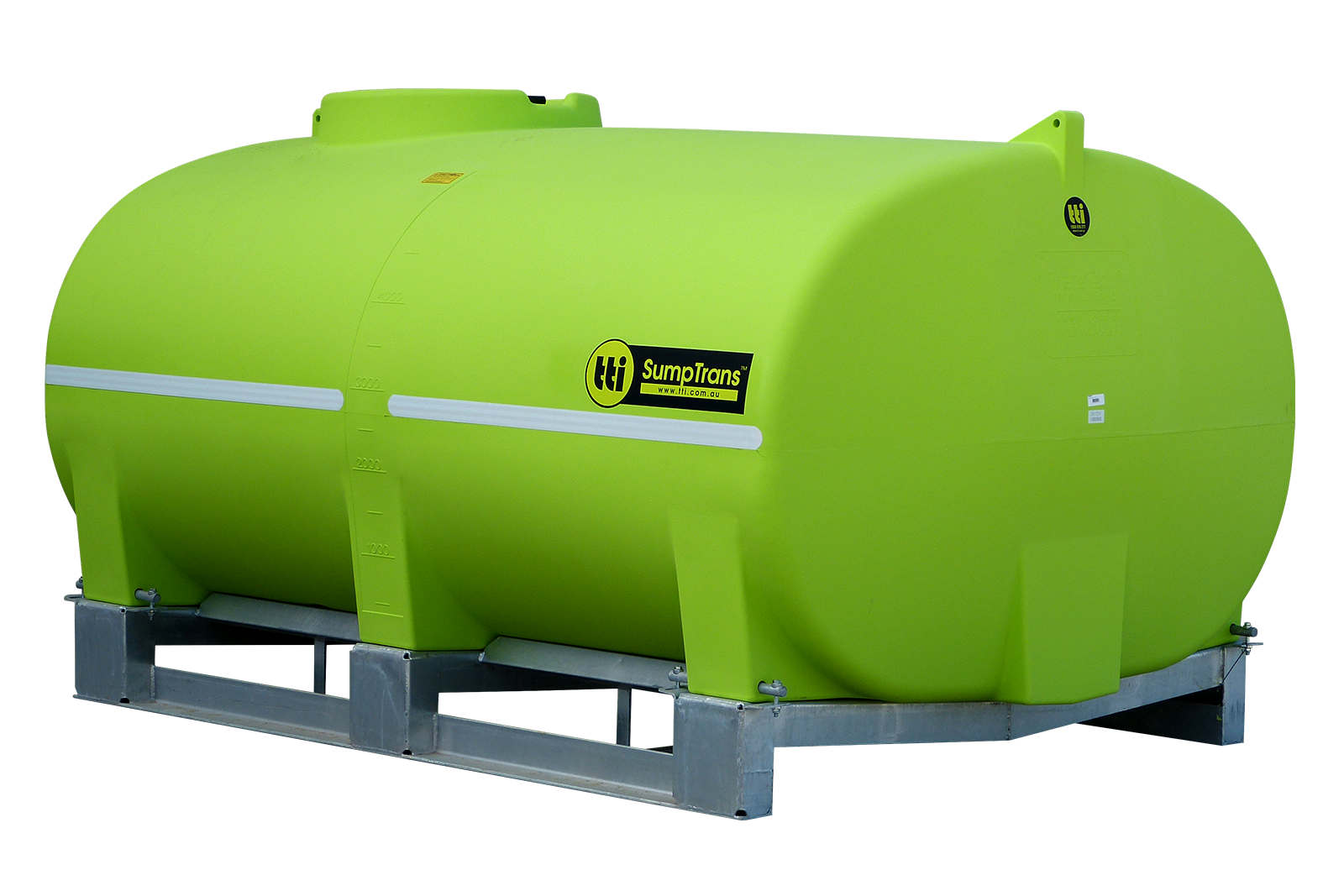

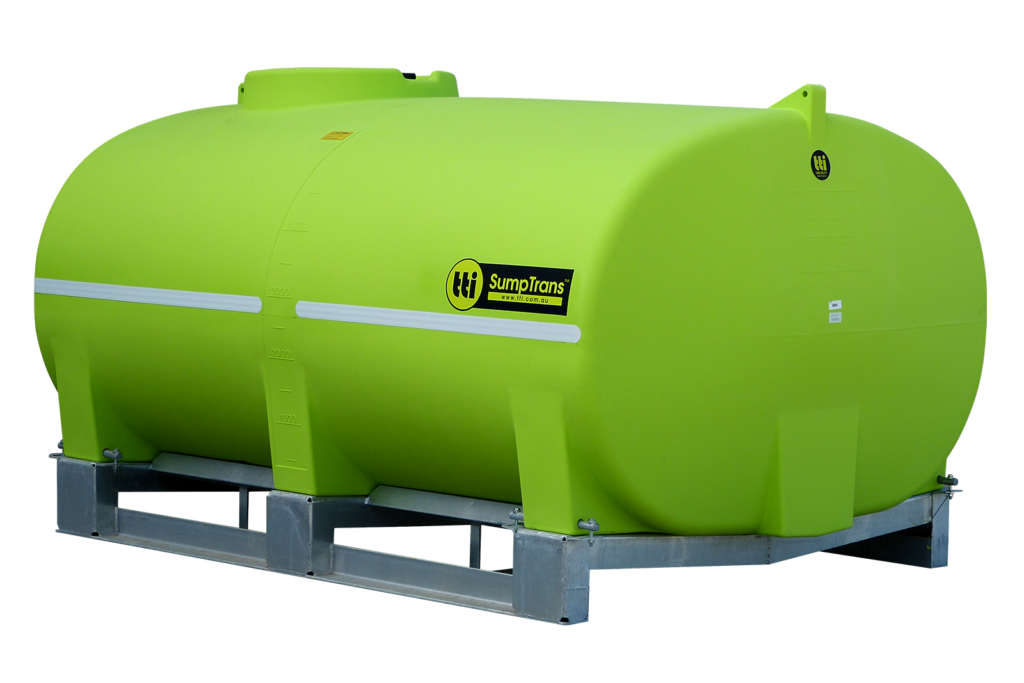

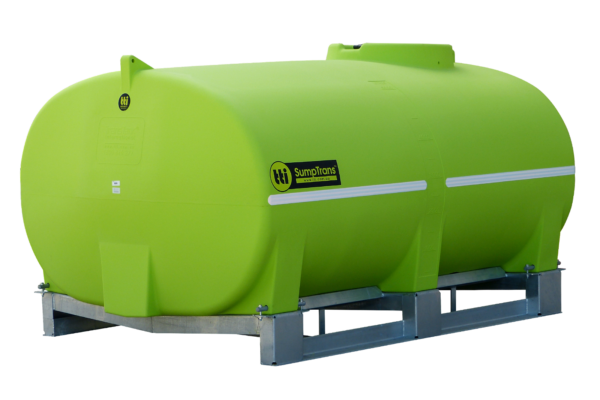

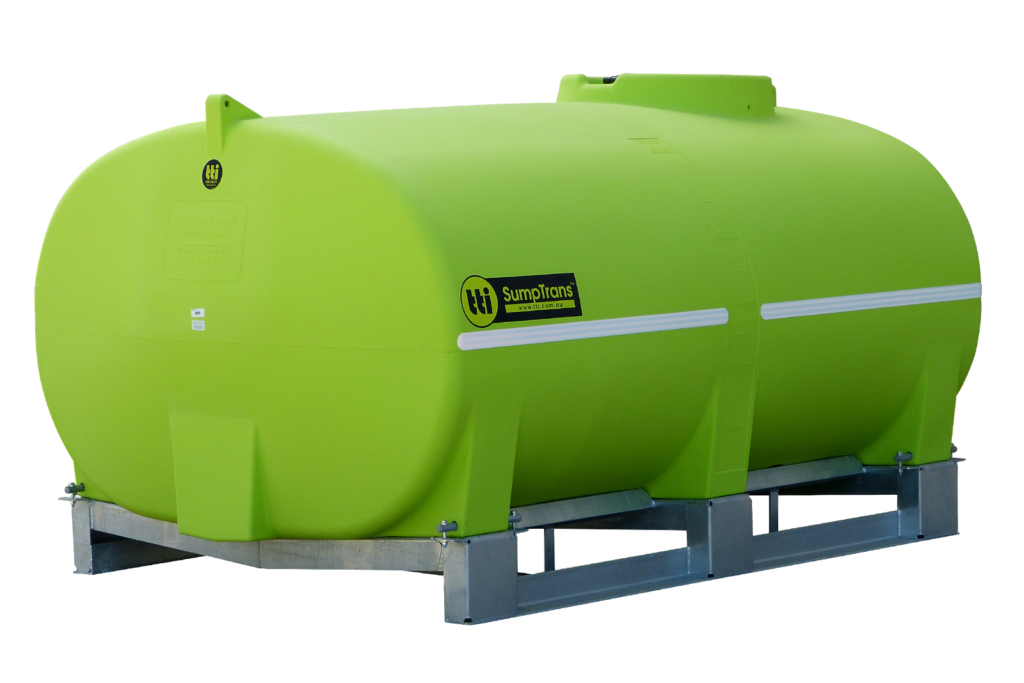

- Hot-dip galvanised steel frame for correct tank support
- Steel support frame required to give sump clearance
- 4 mounting pins supplied for easy & secure mounting
- 25-Year Tank Warranty

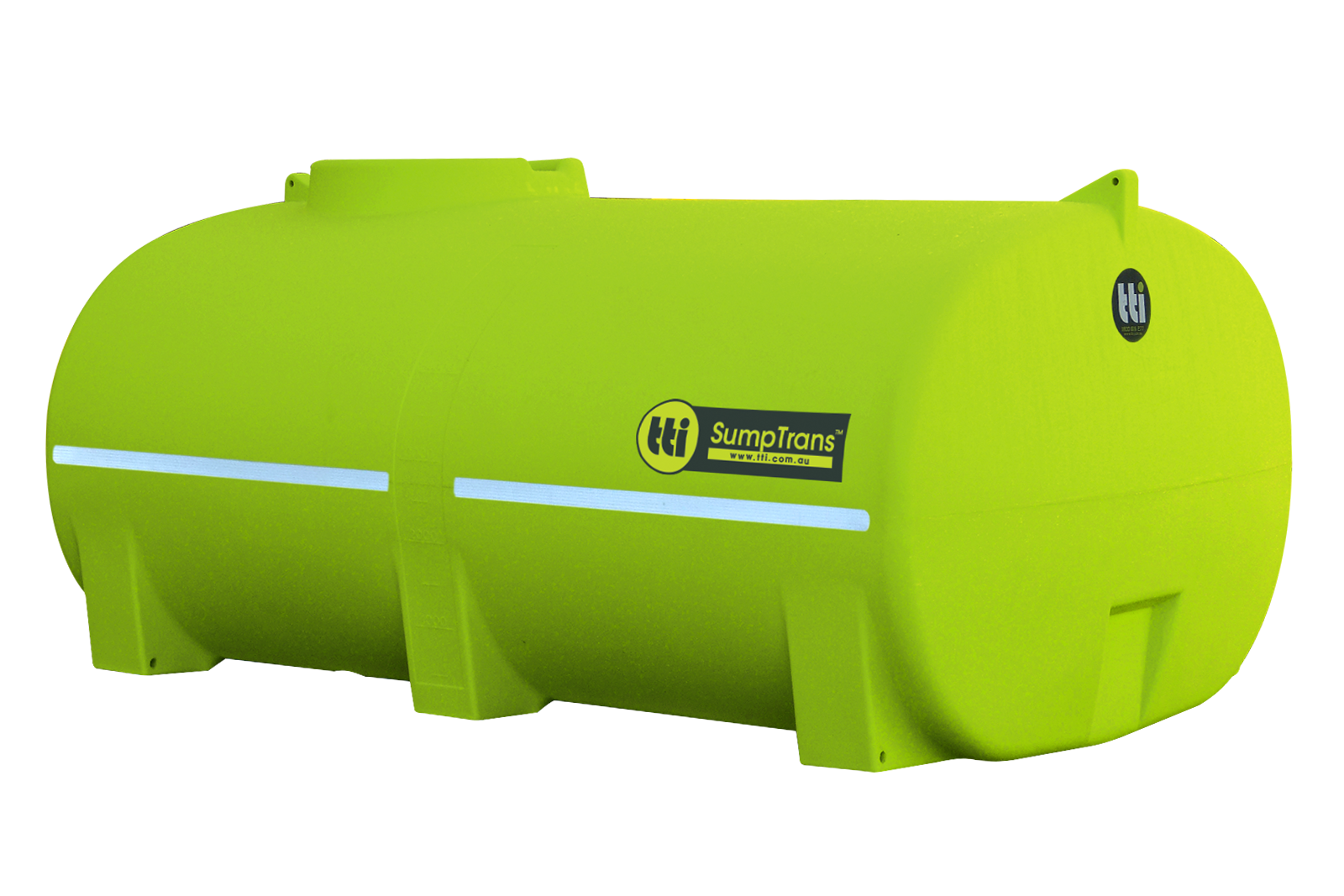

- Available Without Steel Frame – Tank Only
| Tank Only | With Frame | |
| Weight: | 314.93kg | 514.02kg |
| Length: | 2761mm | 2761mm |
| Width: | 2000mm | 2000mm |
| Height: | 1520mm | 1561mm |
Features

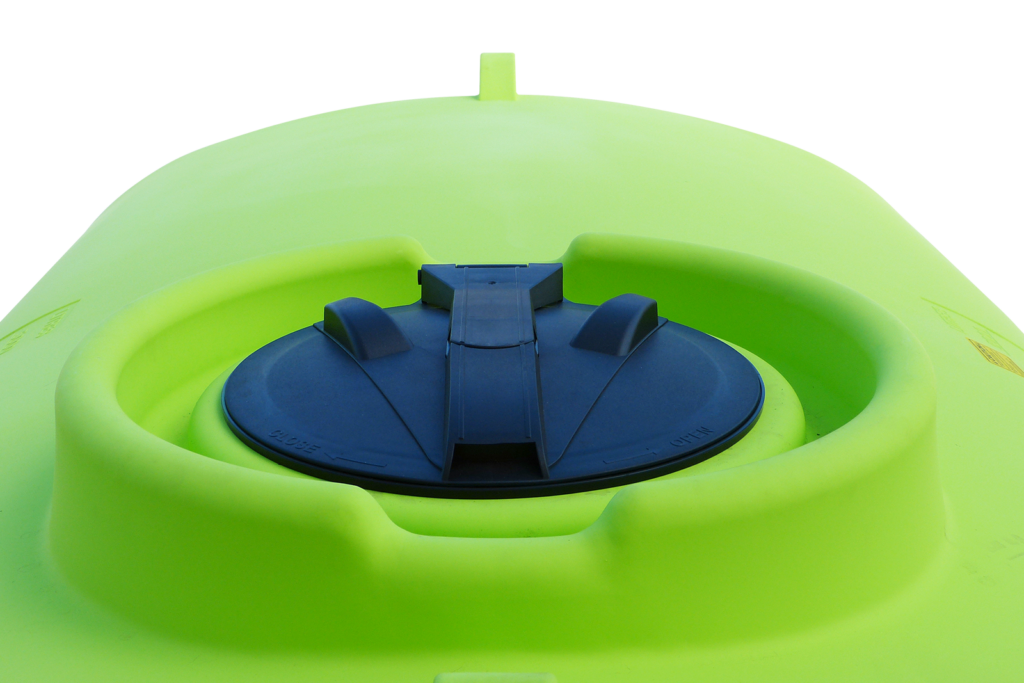

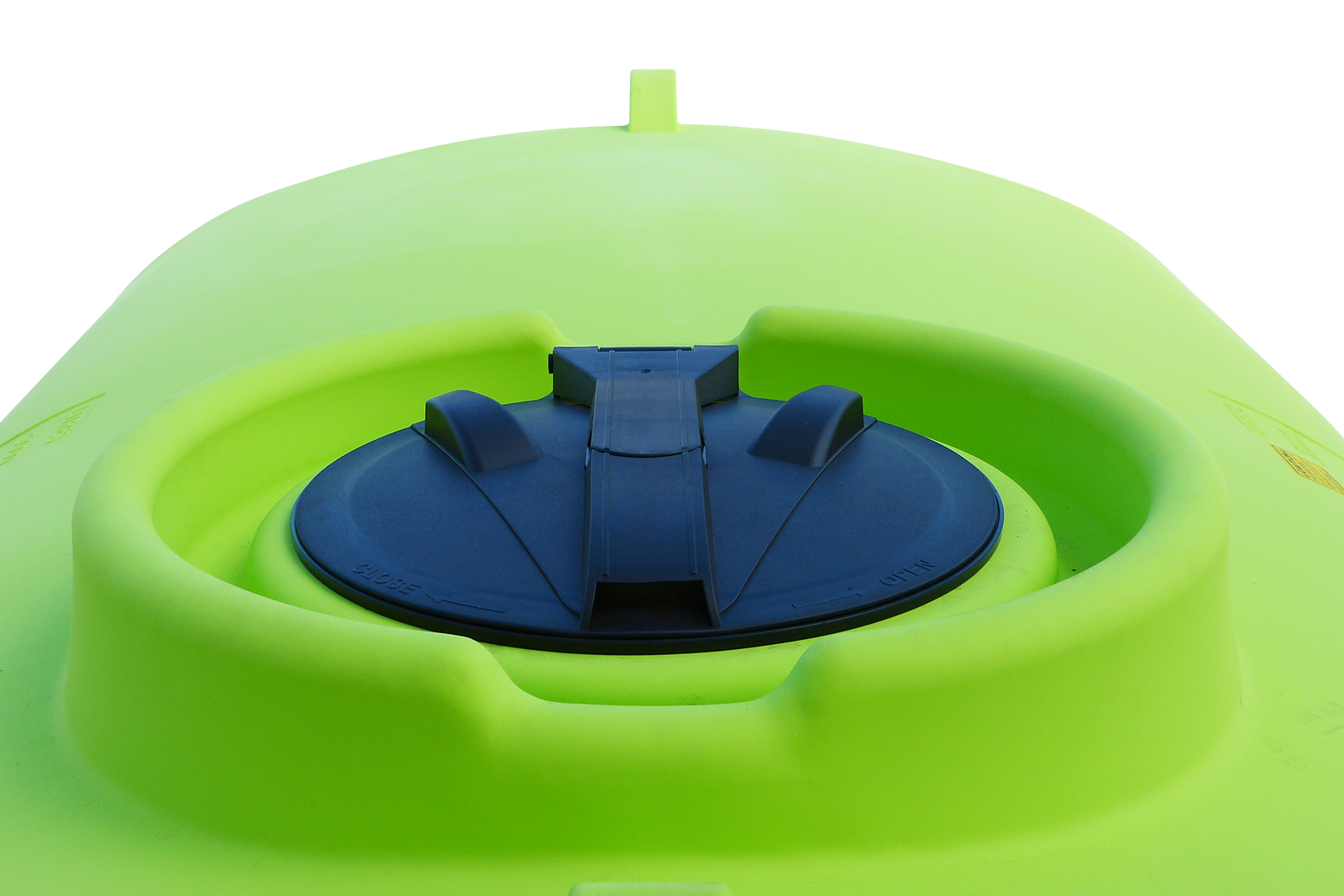

Large tank opening for fast, easy filling. Sealed with 455mm lid with labyrinth breather
Easy fill, No-Spill containment lip around lid
Marked with easy to read calibration on side wall of tank for quick measurement of contents
Fully drainable smooth interior tank with outlet fitted integral sump for complete drainage and decontamination
The optional fully galvanised steel frame is supplied with 4 pcs. galvanised mounting pins for easy and sure fit mounting
FAQs
Can the SumpTrans tank be used for mixing different chemicals?
Yes. The SumpTrans tank is built for chemical mixing. The fully drainable sump supports complete emptying and effective decontamination after use.
What type of chemicals can be stored in the SumpTrans tank?
The tank suits many chemicals that are compatible with polyethylene. Always confirm chemical compatibility before use to protect the tank and maintain safety.
How should the SumpTrans tank be mounted for correct operation?
Mount the tank securely using the supplied four mounting pins. Use the hot dip galvanised steel frame to maintain sump clearance and allow full drainage.
What is the correct way to clean the SumpTrans tank after chemical use?
Fully drain the tank through the sump outlet. Clean it using suitable cleaning agents for the chemical used. Remove all residue before refilling.
What is the maximum weight of the SumpTrans tank when full?
The tank is rated to a specific gravity of 1.3. At full 5000L capacity, the maximum filled weight is approximately 6500kg. Ensure the mounting surface can safely support this load.
What lid does the SumpTrans 5,000 litre tank have?
The tank has a 455mm hinged lid with basket filter and no spill containment lip around the lid.
What outlet does the SumpTrans 5,000 litre tank have?
It is fitted with a 2 inch MBSP poly outlet. MBSP stands for male British standard pipe, so the matching fitting needs a female BSP thread.
What load rating and warranty does the SumpTrans 5,000 litre tank have?
It has a 1.3 SG load rating, meaning it can carry liquids up to 1.3 times the weight of water. The heavy duty, chemical resistant polyethylene tank carries a 25 year warranty.
