- Heavy-duty, chemical resistant polyethylene tank with 1.3 Specific Gravity (SG)
- Fully draining sump for complete drainage and decontamination
- 455mm hinged lid with basket filter
- No spill containment lip around lid
- 2″ MBSP poly outlet fitted
- Easy to read calibrated measurements
- Hot-dip galvanised steel frame for correct tank support
- Steel support frame required to give sump clearance
- 4 mounting pins supplied for easy & secure mounting
- 25-Year Tank Warranty

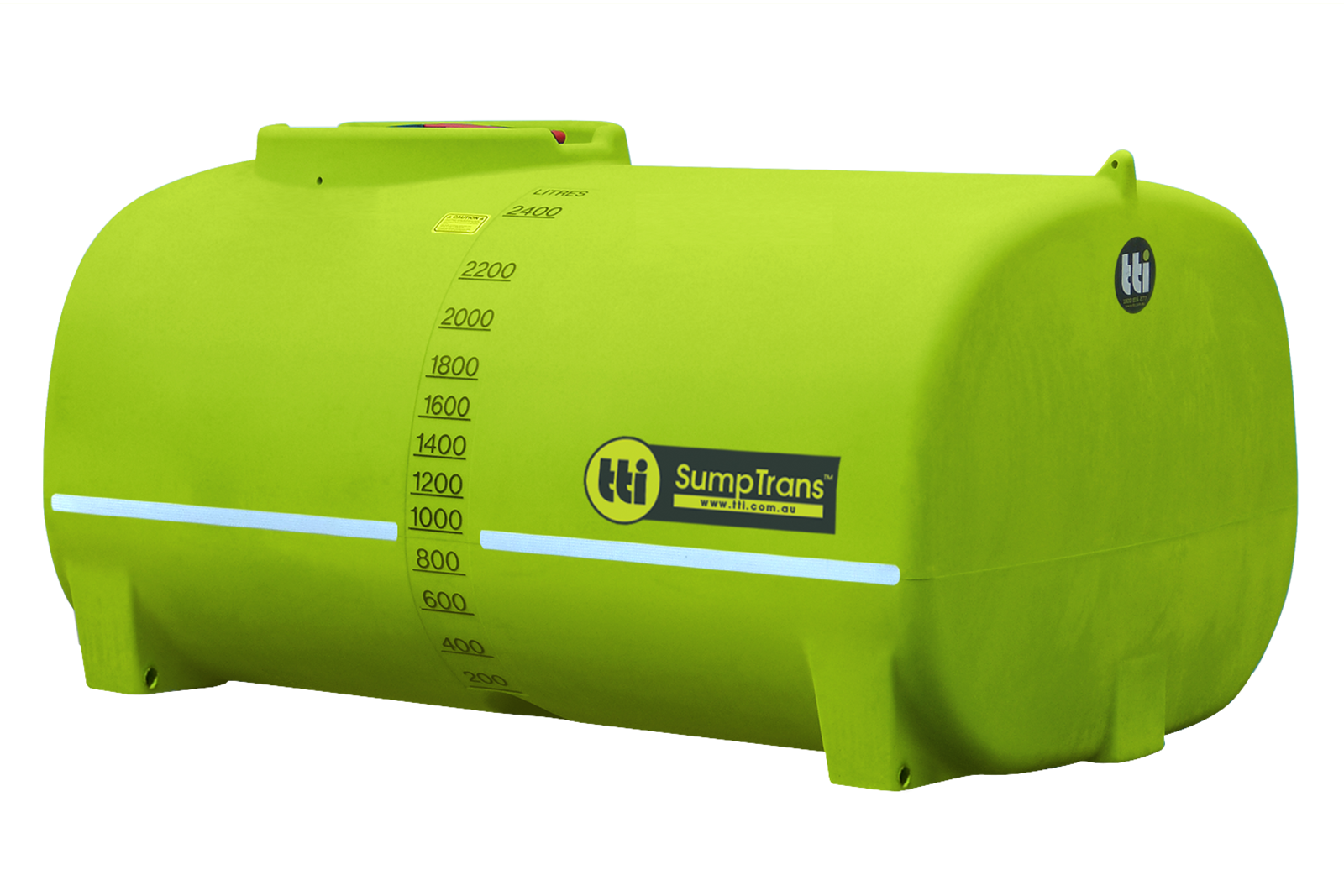

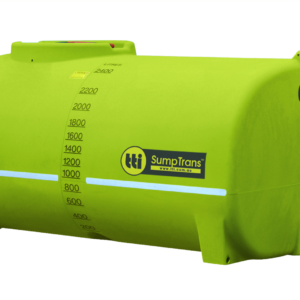

- Available Without Steel Frame – Tank Only
| Tank Only | With Frame | |
| Weight: | 148kg | 242kg |
| Length: | 2150mm | 2150mm |
| Width: | 1410mm | 1410mm |
| Height: | 1232mm | 1286mm |
SumpTrans™

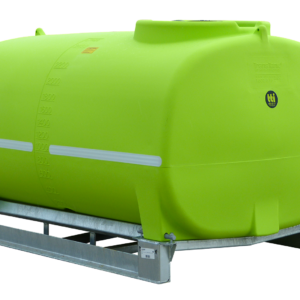

2400L SumpTrans™ Fully-Drainable Spray Tank
2400L SumpTrans™
PRICING DISPLAYED IS THE FROM PRICE. COST MAY VARY DUE TO OPTIONAL INCLUSIONS
1800 816 277
Contact our team to find out:
- If this product is right for you
- Info and pricing on options & accessories
- Stock availability & delivery timeframe
- More about our nation-wide subsidised freight
- Heavy-duty, chemical resistant polyethylene tank with 1.3 Specific Gravity (SG)
- Fully draining sump for complete drainage and decontamination
- 455mm hinged lid with basket filter
- No spill containment lip around lid
- 2″ MBSP poly outlet fitted
- Easy to read calibrated measurements

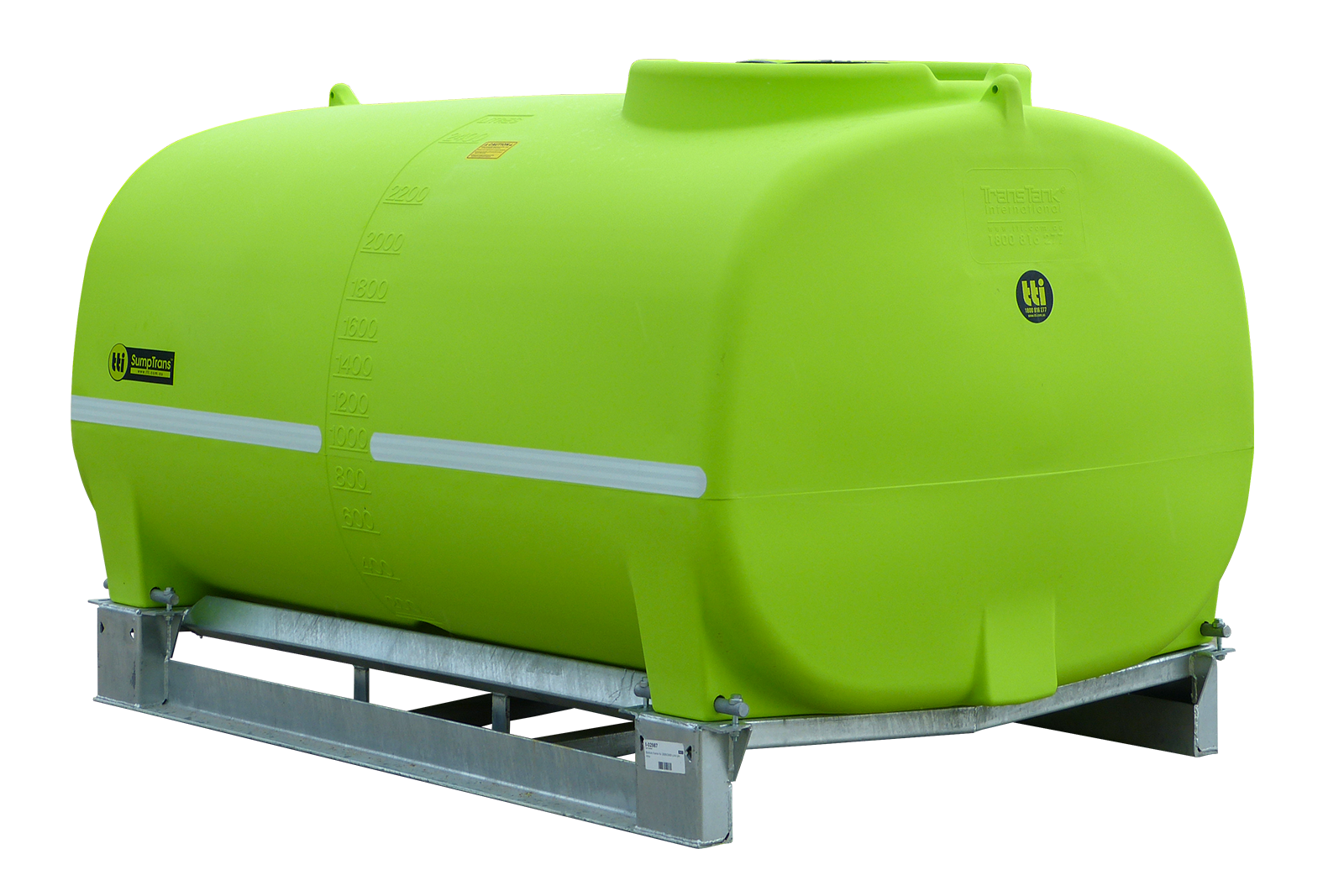

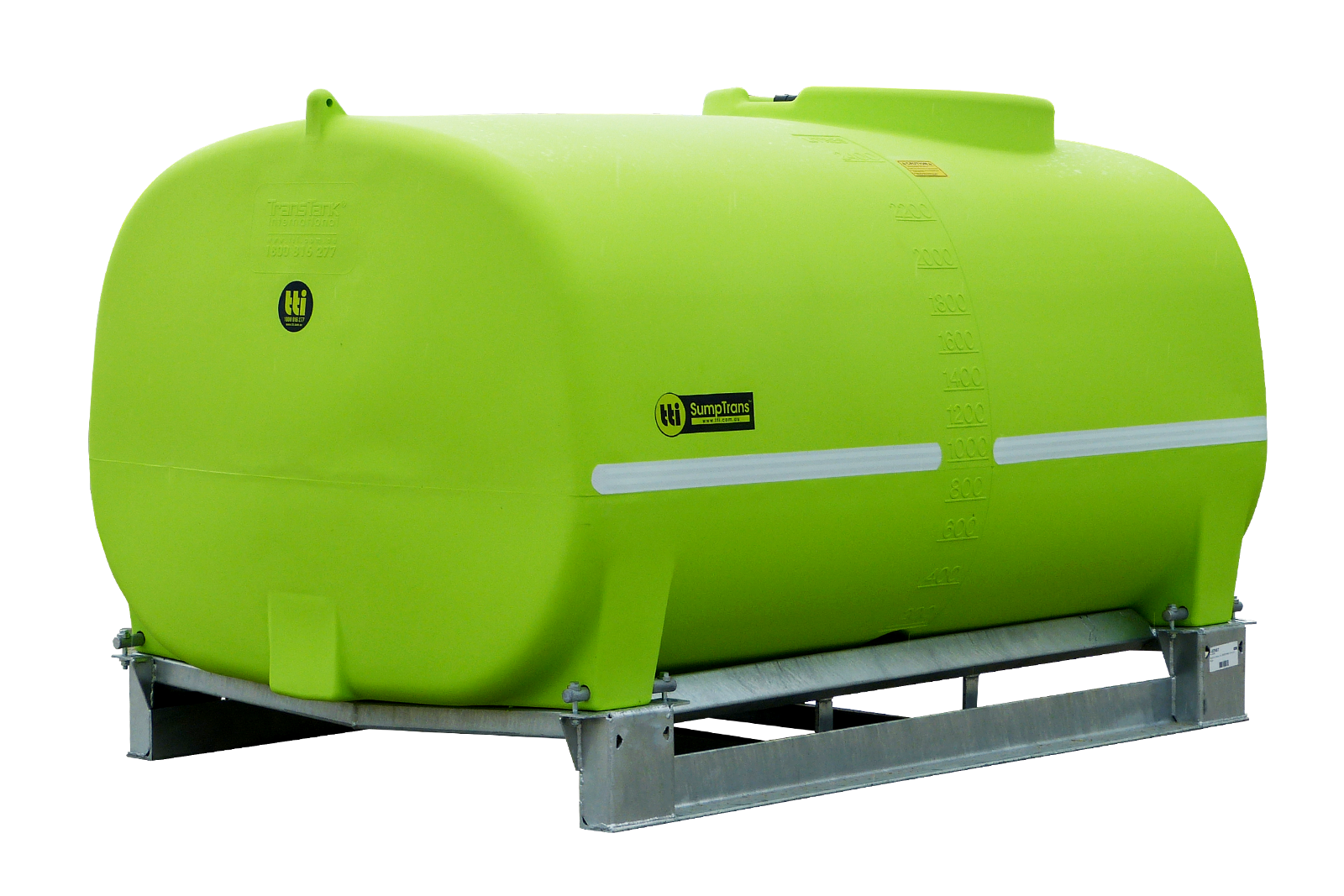

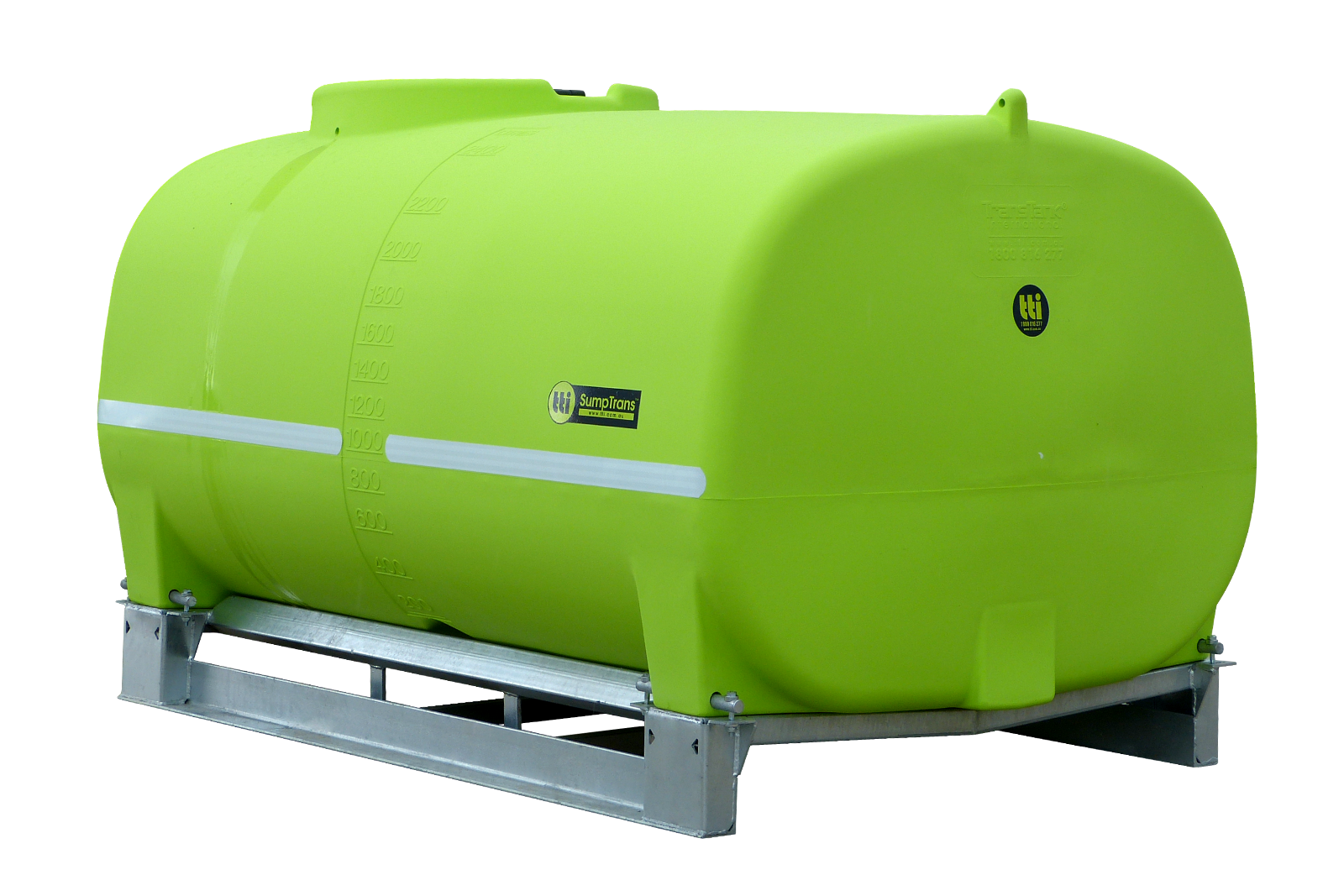

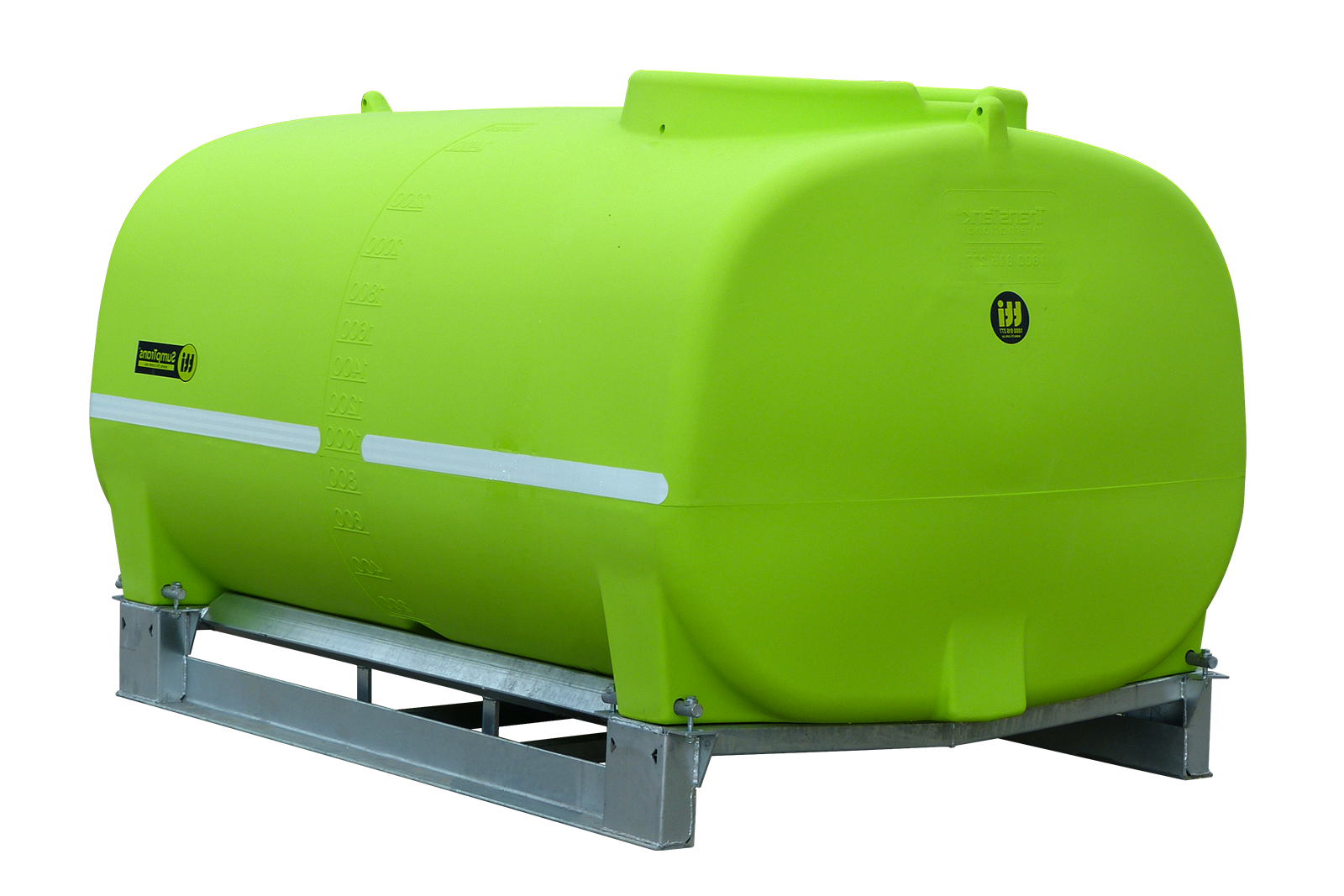

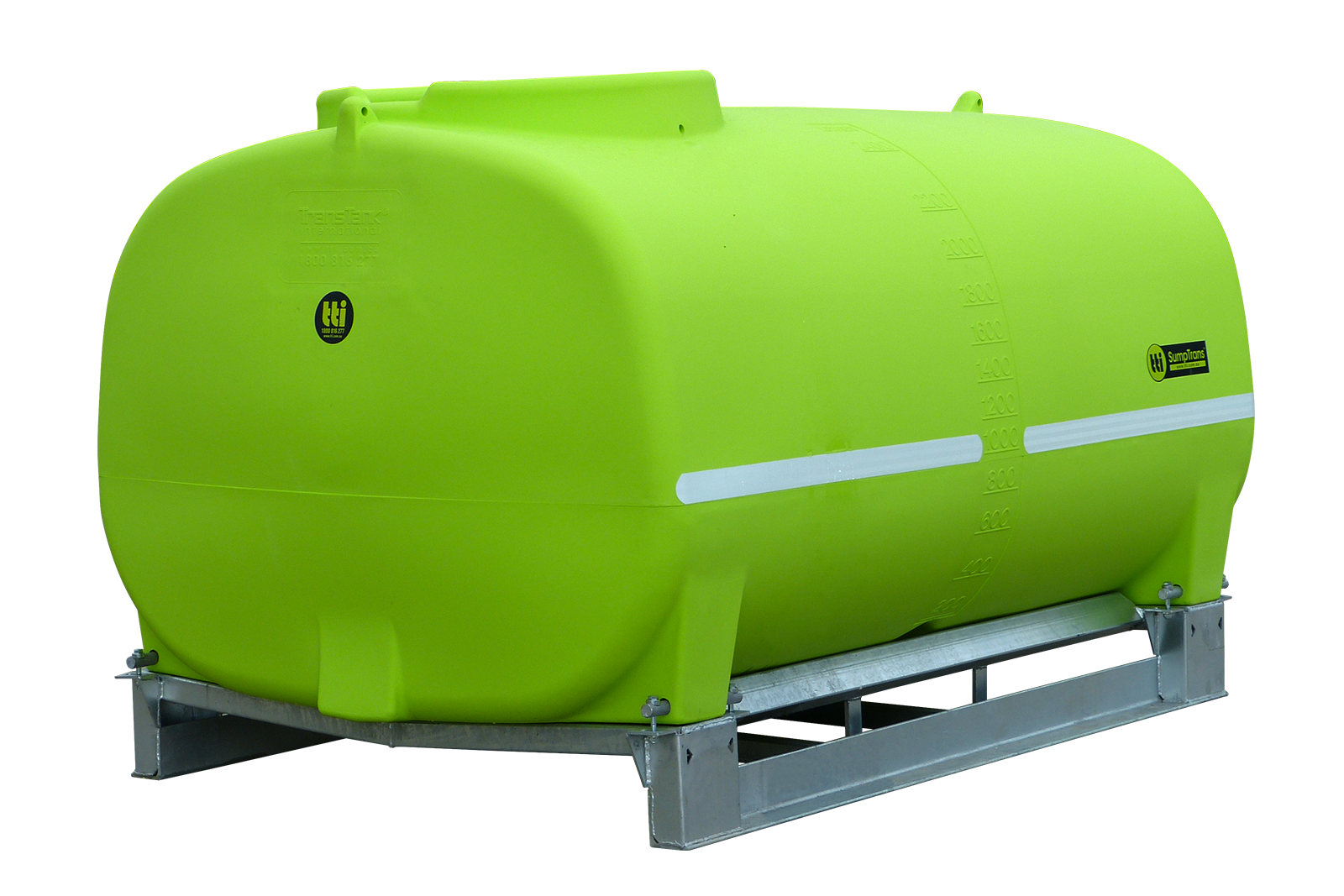

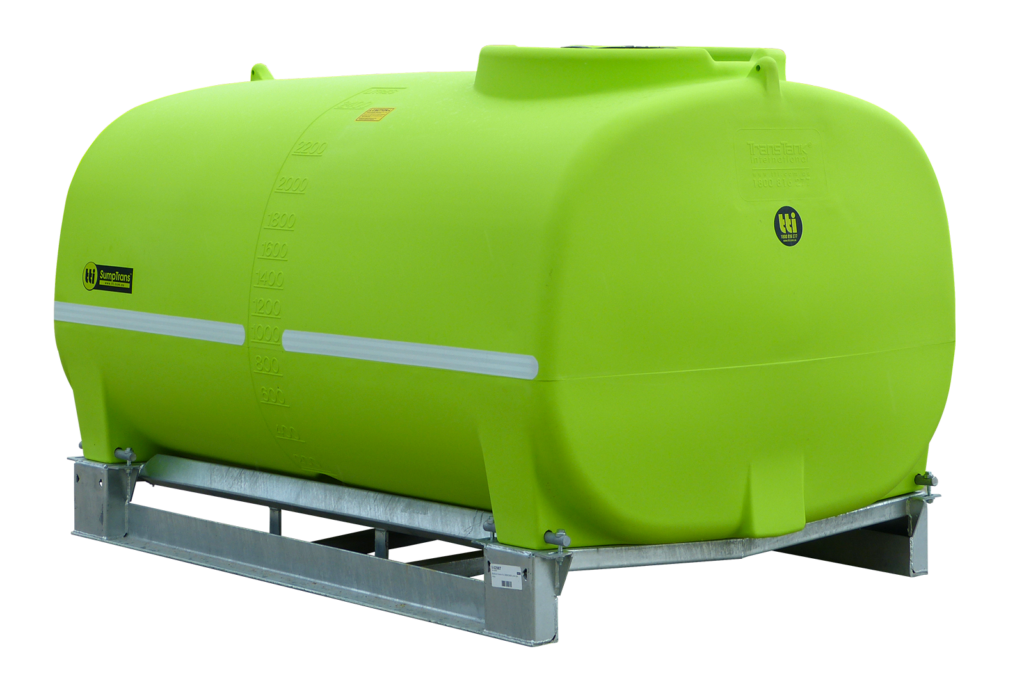

- Hot-dip galvanised steel frame for correct tank support
- Steel support frame required to give sump clearance
- 4 mounting pins supplied for easy & secure mounting
- 25-Year Tank Warranty
- Available Without Steel Frame – Tank Only
| Tank Only | With Frame | |
| Weight: | 148kg | 242kg |
| Length: | 2150mm | 2150mm |
| Width: | 1410mm | 1410mm |
| Height: | 1232mm | 1286mm |
Features
Large tank opening for fast, easy filling. Sealed with 455mm lid with labyrinth breather
Easy fill, No-Spill containment lip around lid
Marked with easy to read calibration on side wall of tank for quick measurement of contents (when sight level tube fitted on tank)
Fully drainable smooth interior tank with outlet fitted integral sump for complete drainage and decontamination
The optional fully galvanised steel frame is supplied with 4 pcs. galvanised mounting pins for easy and sure fit mounting
FAQs
Can the SumpTrans tank be used for purposes other than chemical storage?
Yes. The SumpTrans tank also suits chemical mixing applications. Its fully drainable design supports effective cleaning between uses.
What type of chemicals can I store in the SumpTrans tank?
The SumpTrans tank suits many agricultural and industrial chemicals that are compatible with polyethylene. Always confirm chemical compatibility before use.
How do I ensure proper drainage of the SumpTrans tank?
Install the tank on a level surface to support complete drainage. Keep the sump outlet clear to allow gravity-assisted emptying.
What maintenance is required for the SumpTrans tank?
Inspect the tank regularly for wear or damage. Keep the lid and outlet clean to maintain reliable operation.
Can I use this tank for potable water storage?
No. The SumpTrans tank is not designed for potable water. Use a tank rated specifically for drinking water applications.
What accessories are available for the SumpTrans tank?
Compatible mounting options, pumps, and filtration accessories are listed on the product page. Review these options to match your application.
What lid does the SumpTrans 2,400 litre tank have?
The tank has a 455mm hinged lid with basket filter and no spill containment lip around the lid.
What outlet does the SumpTrans 2,400 litre tank have?
It is fitted with a 2 inch MBSP poly outlet. MBSP stands for male British standard pipe, so the matching fitting needs a female BSP thread.
Can I buy the SumpTrans 2,400 litre tank without the steel frame?
Yes, it is available as a tank only. TTi notes a steel support frame is required to give sump clearance, so a tank only purchase still needs a support that provides this.
How is the SumpTrans 2,400 litre tank mounted?
It is pin mounted, with 4 mounting pins supplied for easy and secure mounting on the hot dip galvanised steel frame.
