- Heavy-duty, fully-drainable, UV Stabilised poly tank with 25-year warranty
- Built to high-level ADR requirements – manufactured from specially formulated diesel-grade polyethylene, complying with Australian Standards AS1940-2004 and AS2809.2-2008 for the safe transportation of flammable liquids and dangerous goods by road.
- Strong heavy-duty Hot-dipped galvanised chassis with 50mm tow hitch
- 60L/min 12v Piusi pump mounted in lockable toolbox
- LiquidLocker™ baffle system fitted
- 65mm 4T-rated solid galvanised axles with 15″ Landcruiser wheels which provide high ground clearance and manoeuvrability with wheel nut indicators fitted
- Recessed LED combination tail lights & license plate light
- Large, 455mm lid opening with breather and filler cap
- 10m retractable reel with anti-kink 25mm hose & 1″ Nozzle
- Fitted with a 4-digit mechanical flow meter for accurate fuel measurement
- Cartridge filter fitted for pump protection and clean fuel delivery
- 2″ Lockable filling point
- Puncture resistant 6 ply radial tyres, helping heavy load capability
- Heavy duty jockey wheel and chequer plate mudguards
- ROVER Vehicle Type Approval – Certified & Compliant
- Hydraulic Override Braked (On-Road/Registrable) – On Farm (Unbraked) option available
| UnBraked | Braked | |
| Weight: | 421kg | 508kg |
| Length: | 3833mm | 3883mm |
| Width: | 1910mm | 1900mm |
| Height: | 1345mm | 1450mm |

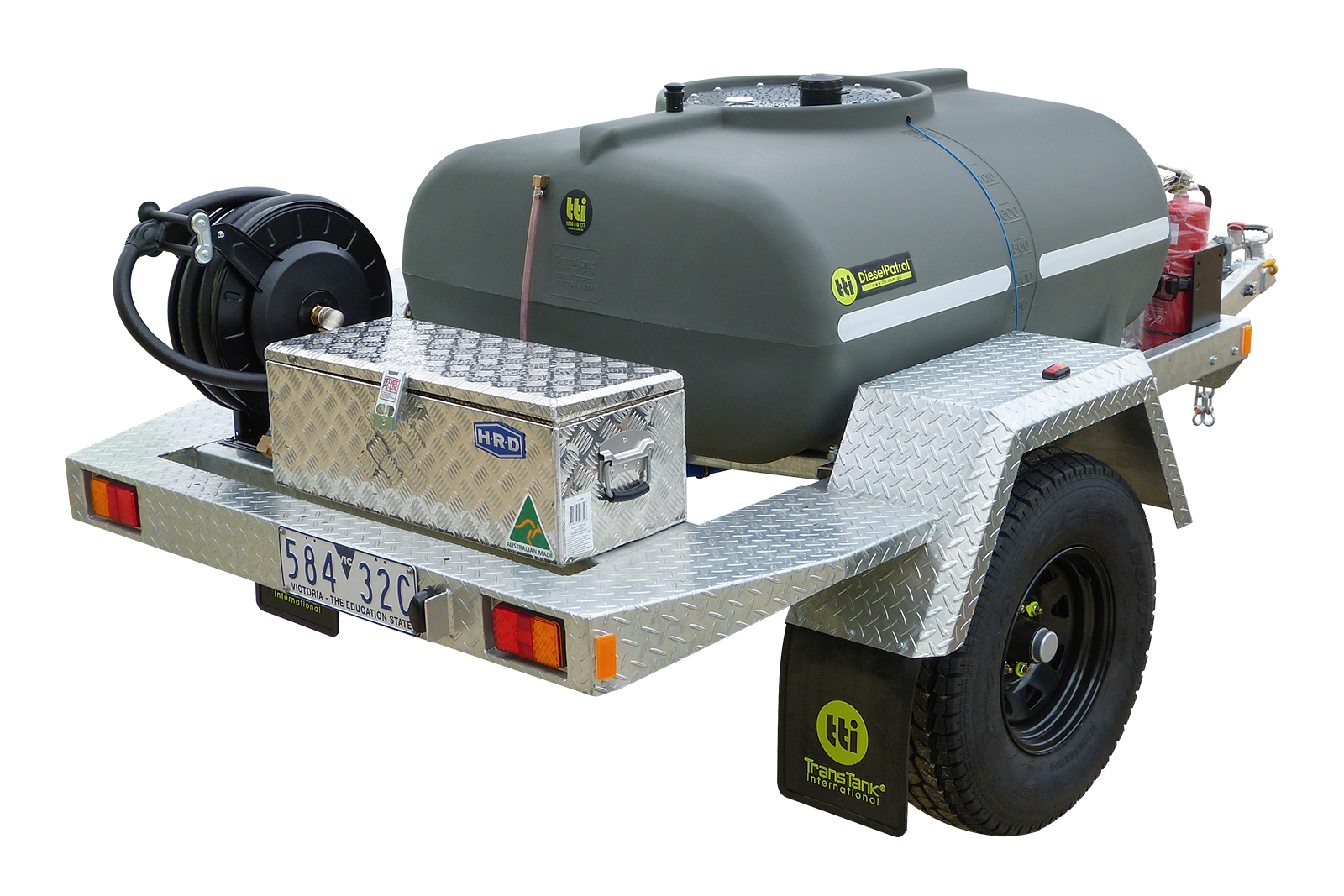

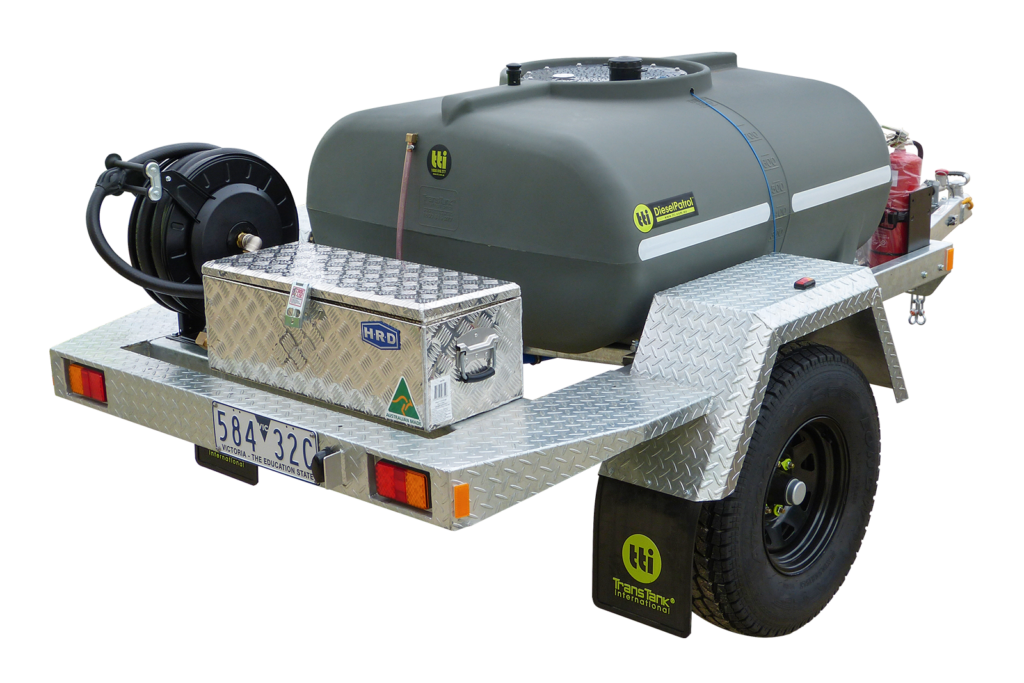

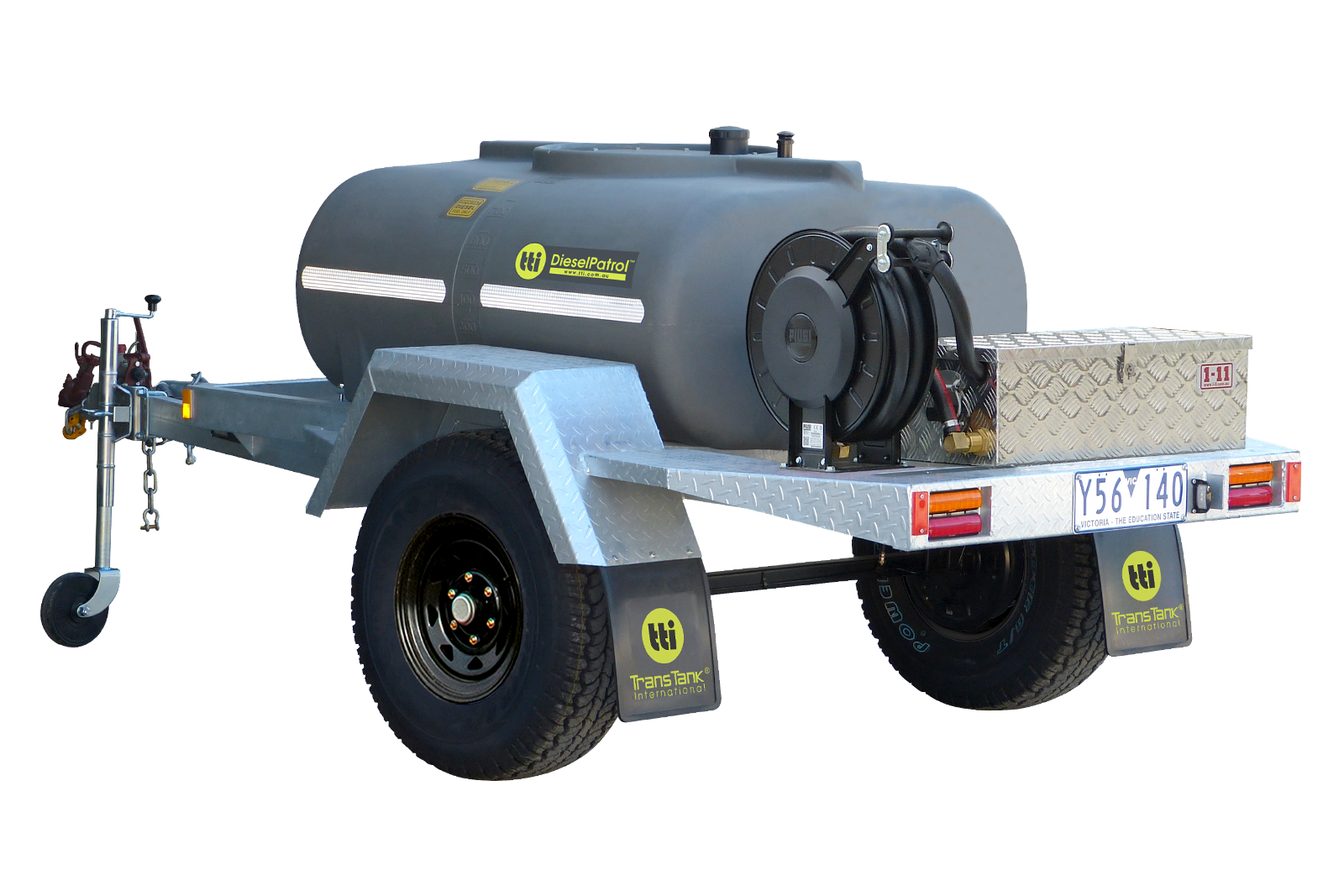

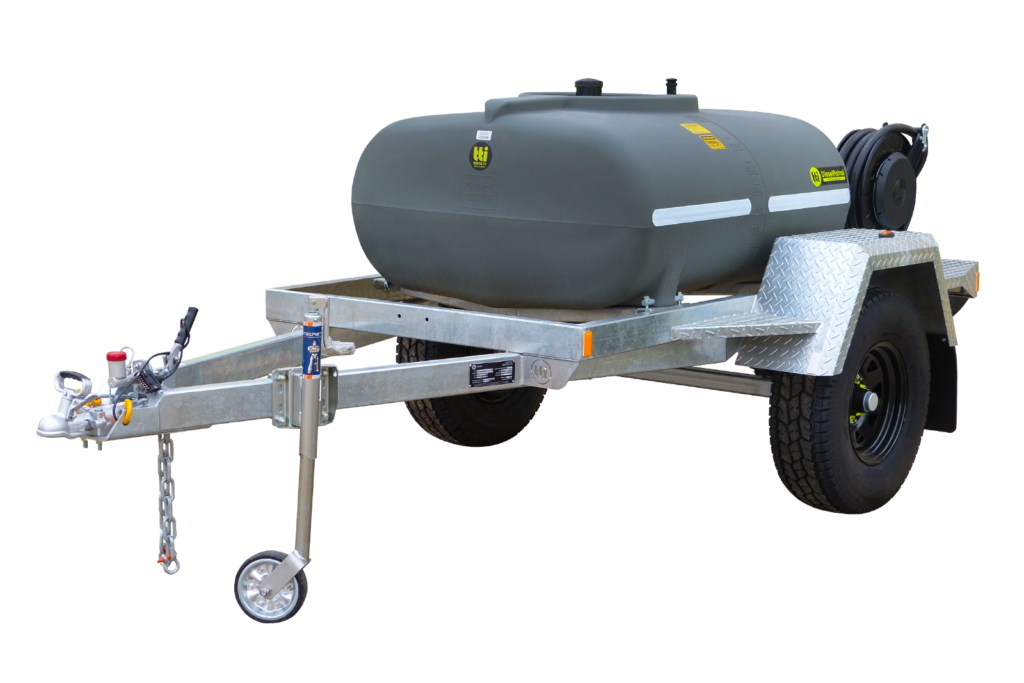

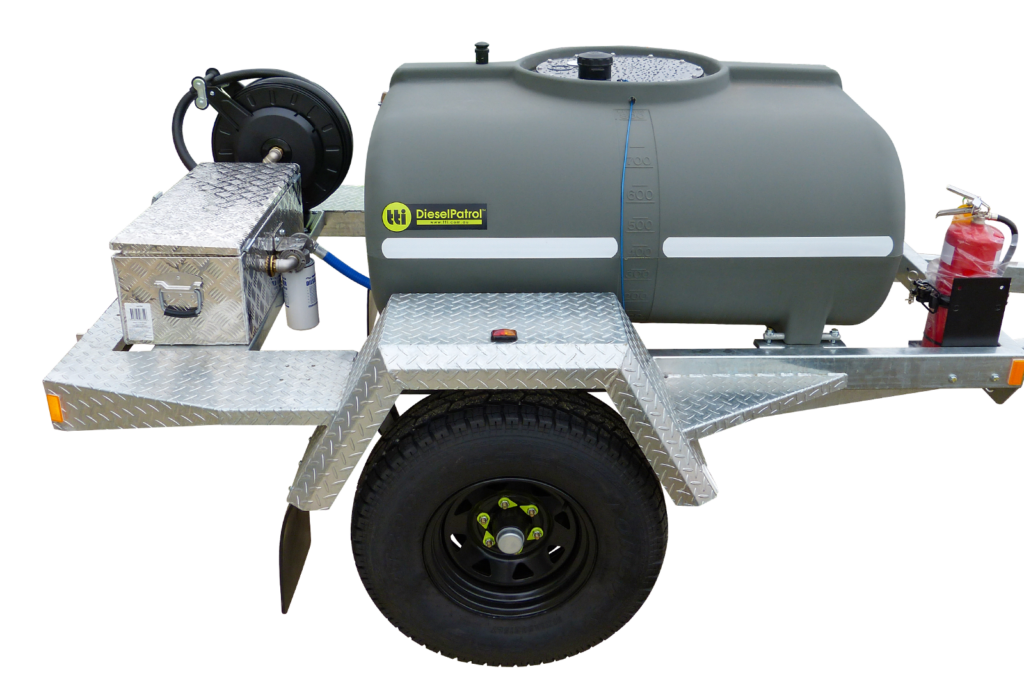

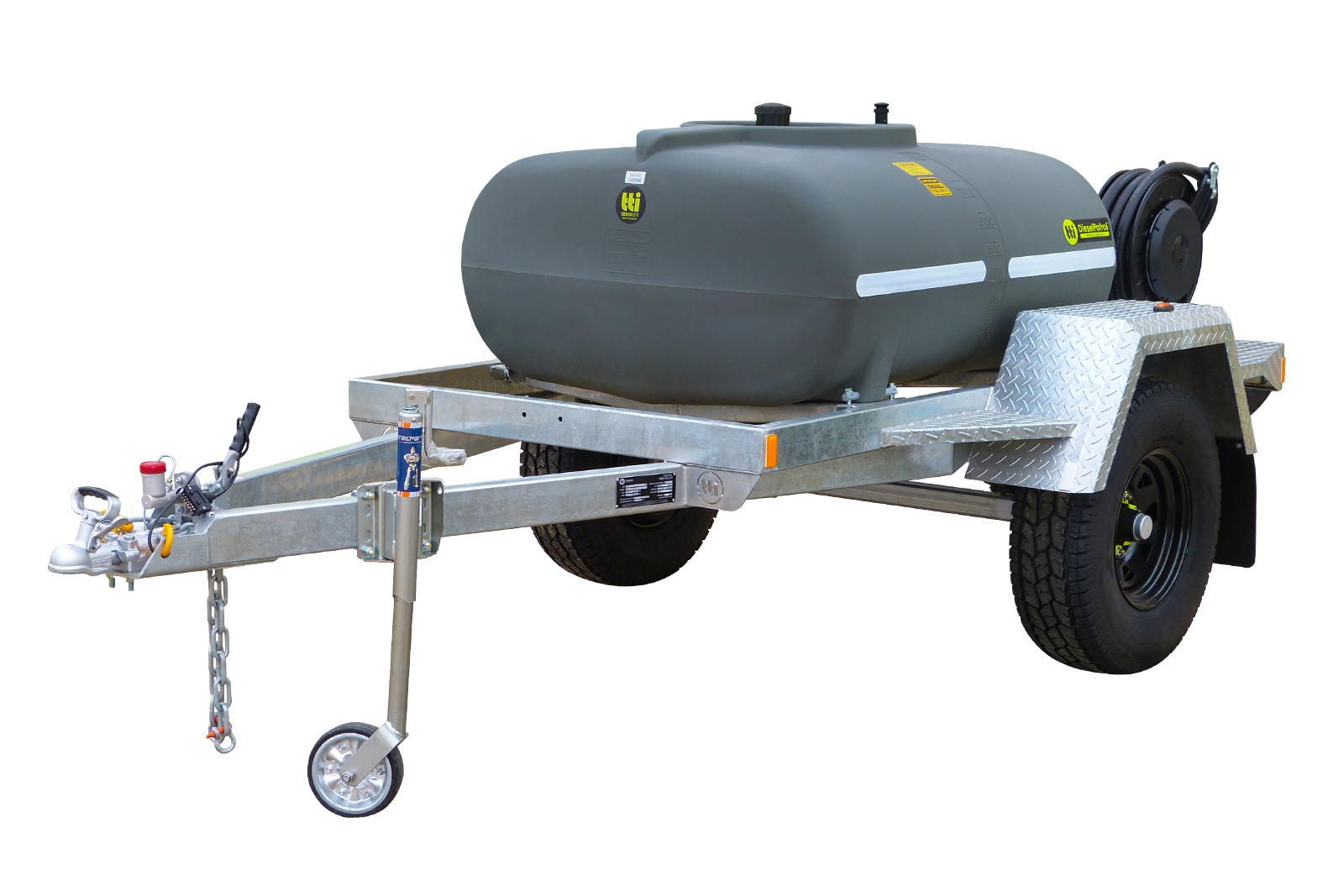

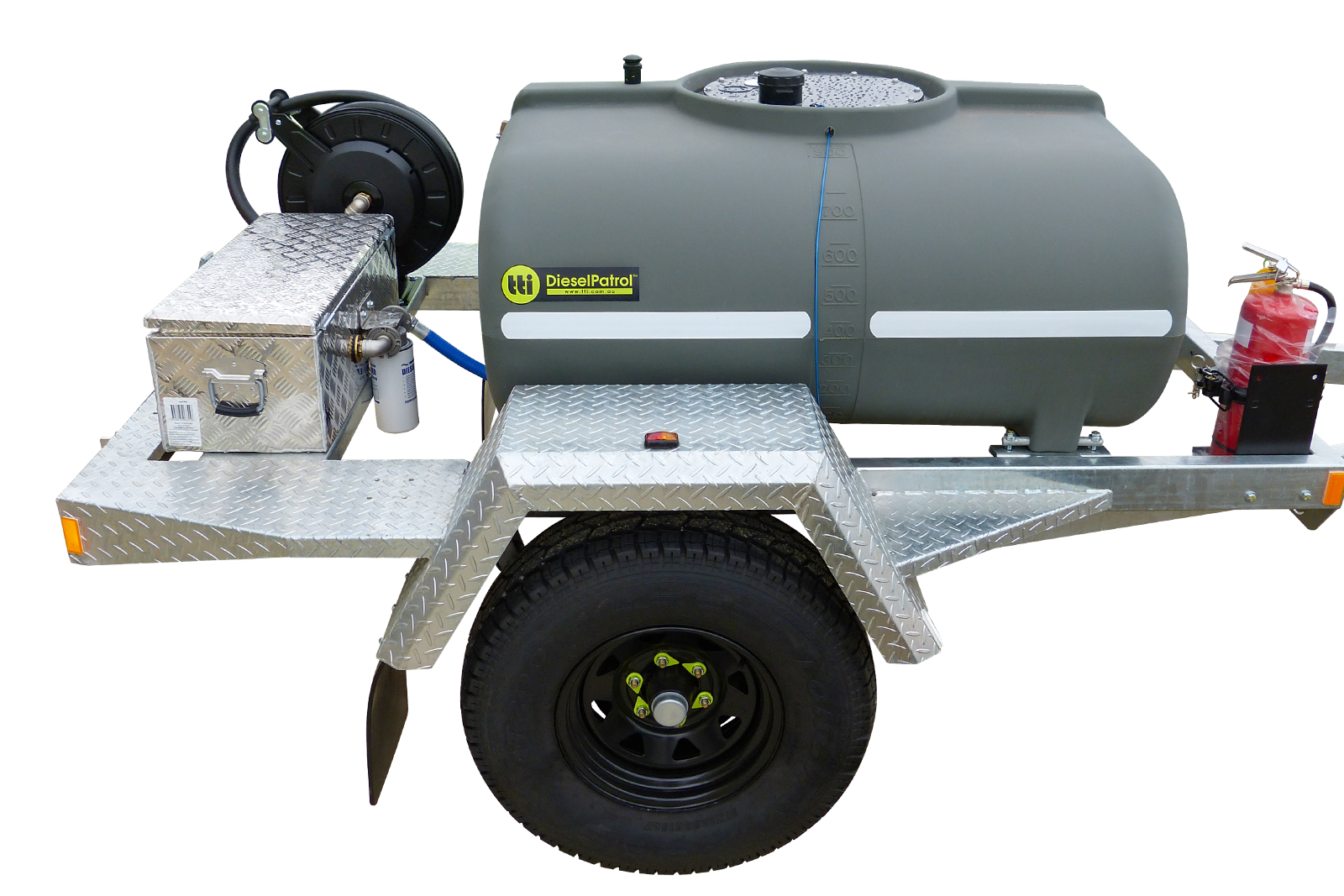

DieselPatrol15™ Refueling Trailer

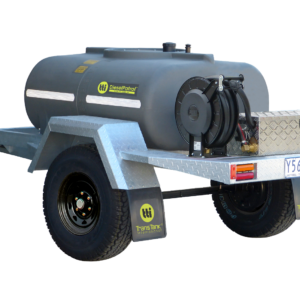

800L DieselPatrol15™ Diesel Fuel Trailer
800L DieselPatrol15™
PRICING DISPLAYED IS THE FROM PRICE. COST MAY VARY DUE TO OPTIONAL INCLUSIONS
1800 816 277
Contact our team to find out:
- If this product is right for you
- Info and pricing on options & accessories
- Stock availability & delivery timeframe
- More about our nation-wide subsidised freight
- Heavy-duty, fully-drainable, UV Stabilised poly tank with 25-year warranty
- Built to high-level ADR requirements – manufactured from specially formulated diesel-grade polyethylene, complying with Australian Standards AS1940-2004 and AS2809.2-2008 for the safe transportation of flammable liquids and dangerous goods by road.
- Strong heavy-duty Hot-dipped galvanised chassis with 50mm tow hitch
- 60L/min 12v Piusi pump mounted in lockable toolbox
- LiquidLocker™ baffle system fitted
- 65mm 4T-rated solid galvanised axles with 15″ Landcruiser wheels which provide high ground clearance and manoeuvrability with wheel nut indicators fitted
- Recessed LED combination tail lights & license plate light
- Large, 455mm lid opening with breather and filler cap
- 10m retractable reel with anti-kink 25mm hose & 1″ Nozzle
- Fitted with a 4-digit mechanical flow meter for accurate fuel measurement
- Cartridge filter fitted for pump protection and clean fuel delivery
- 2″ Lockable filling point
- Puncture resistant 6 ply radial tyres, helping heavy load capability
- Heavy duty jockey wheel and chequer plate mudguards
- ROVER Vehicle Type Approval – Certified & Compliant
- Hydraulic Override Braked (On-Road/Registrable) – On Farm (Unbraked) option available
| UnBraked | Braked | |
| Weight: | 421kg | 508kg |
| Length: | 3833mm | 3883mm |
| Width: | 1910mm | 1900mm |
| Height: | 1345mm | 1450mm |
Features
To reduce surge and increase stability
High flow 60L/min 12v Pump Mounted in Lockable Toolbox
(Optional Reel Pictured)
For maximum protection for tough, long term durable performance
Provide high ground clearance and excellent maneuverability & wheel nut indicators fitted
Complete with breather & filler cap for easy access for cleaning if required
Recessed LED Combination Tail Lights & License Plate Light
For smooth towing on both the highway and rough terrain
“This [unit] has now pumped out 16,000L without an issue – good quality retractable hose, right down to good quality nozzles which pump out 85L/min …. Hasn’t had one hiccup – been extremely reliable. I fully recommend TTi, they produce a good quality product! “
Dean, Ho’s Hire – DieselPatrol™
FAQs
What are the best practices for maintaining the DieselPatrol15™ Diesel Fuel Trailer?
Inspect the pump and filter often to catch early wear. Keep the tank free from debris and check hoses for leaks. Avoid cleaning the diesel tank with water to prevent contamination.
Can I use the DieselPatrol15™ for transporting other types of liquids?
No. The trailer is engineered for diesel only. Other liquids can affect safety and may breach transport regulations.
What should I do if I experience a fuel leak?
Stop using the trailer right away and secure the area. Follow the troubleshooting steps in the manual and use proper spill containment materials to control the leak.
Is the DieselPatrol15™ suitable for off-road use?
Yes. It handles rugged conditions well. Make sure the load is secured and stays within safe weight limits during off-road travel.
What accessories are compatible with the DieselPatrol15™?
Common options include extra hose lengths and replacement filters. Review the product page for the full list of compatible accessories.
How does the LiquidLocker™ baffle system work during transport?
The LiquidLocker™ system reduces internal fuel movement. It limits sloshing and improves stability when travelling over uneven ground.
