- Heavy-duty, fully-drainable, UV Stabilised poly tank with 25-year warranty
- Built to high-level ADR requirements – manufactured from specially formulated diesel-grade polyethylene, complying with Australian Standards AS1940-2004 and AS2809.2-2008 for the safe transportation of flammable liquids and dangerous goods by road.
- Strong heavy-duty Hot-dipped galvanised chassis with 50mm tow hitch
- 60L/min 12v Piusi pump mounted in lockable toolbox
- LiquidLocker™ baffle system fitted
- 65mm 4T-rated solid galvanised axles with 15″ Landcruiser wheels which provide high ground clearance and manoeuvrability with wheel nut indicators fitted
- Recessed LED combination tail lights & license plate light
- Large, 455mm lid opening with breather and filler cap
- 10m retractable reel with anti-kink 25mm hose & 1″ Nozzle
- Fitted with a 4-digit mechanical flow meter for accurate fuel measurement
- Cartridge filter fitted for pump protection and clean fuel delivery
- 2″ Lockable filling point
- Puncture resistant 6 ply radial tyres, helping heavy load capability
- Heavy duty jockey wheel and chequer plate mudguards
- ROVER Vehicle Type Approval – Certified & Compliant
- Electric braked with breakaway system (On-Road/Registrable) – On-Farm (Unbraked) option available
| UnBraked | Braked | |
| Weight: | 711kg | 853kg |
| Length: | 4697mm | 4662mm |
| Width: | 2110mm | 2110mm |
| Height: | 1641mm | 1641mm |

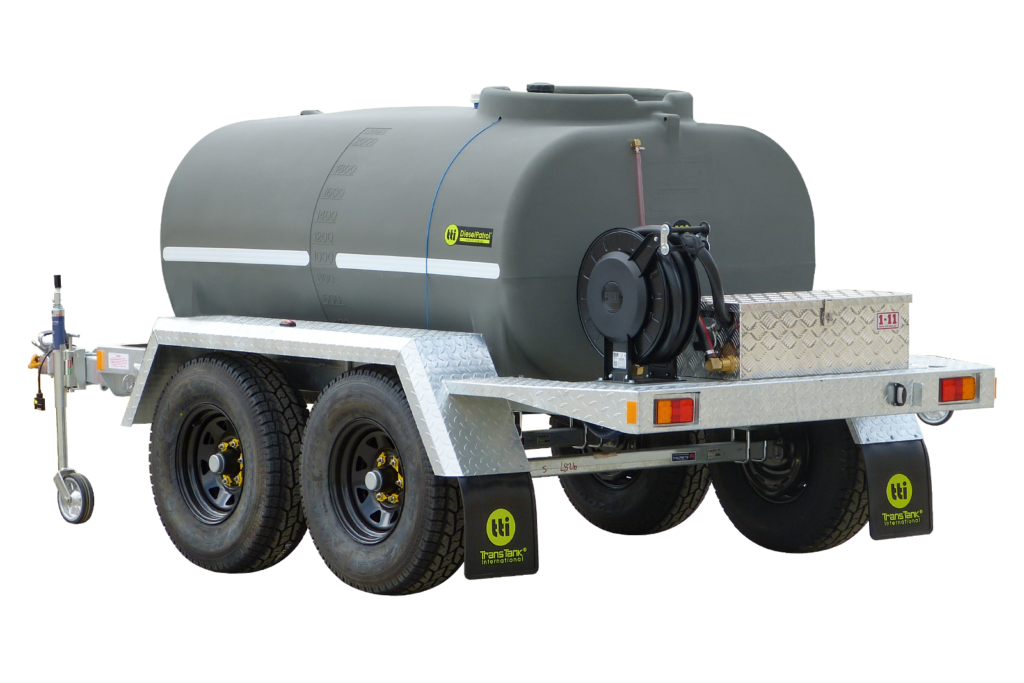

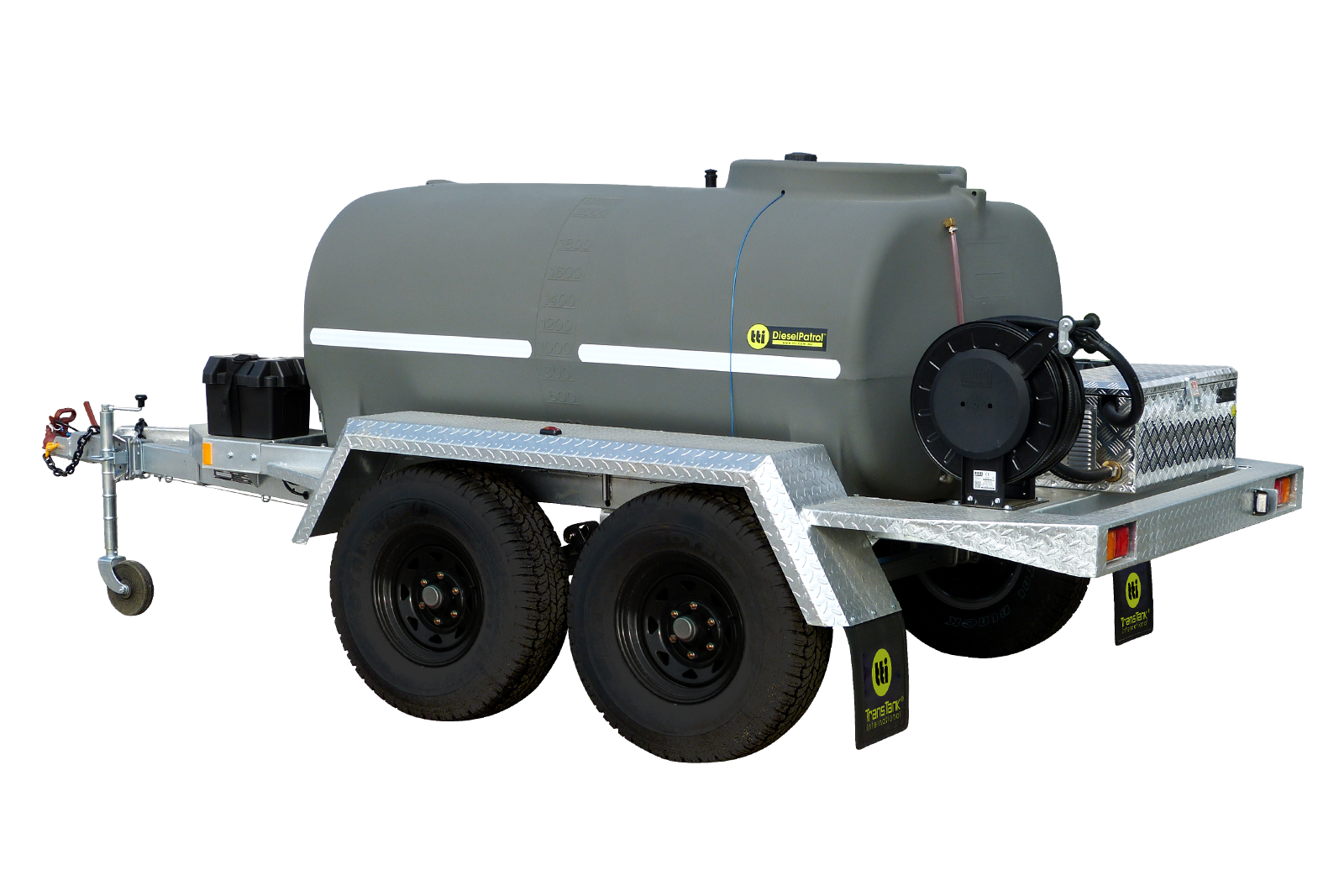

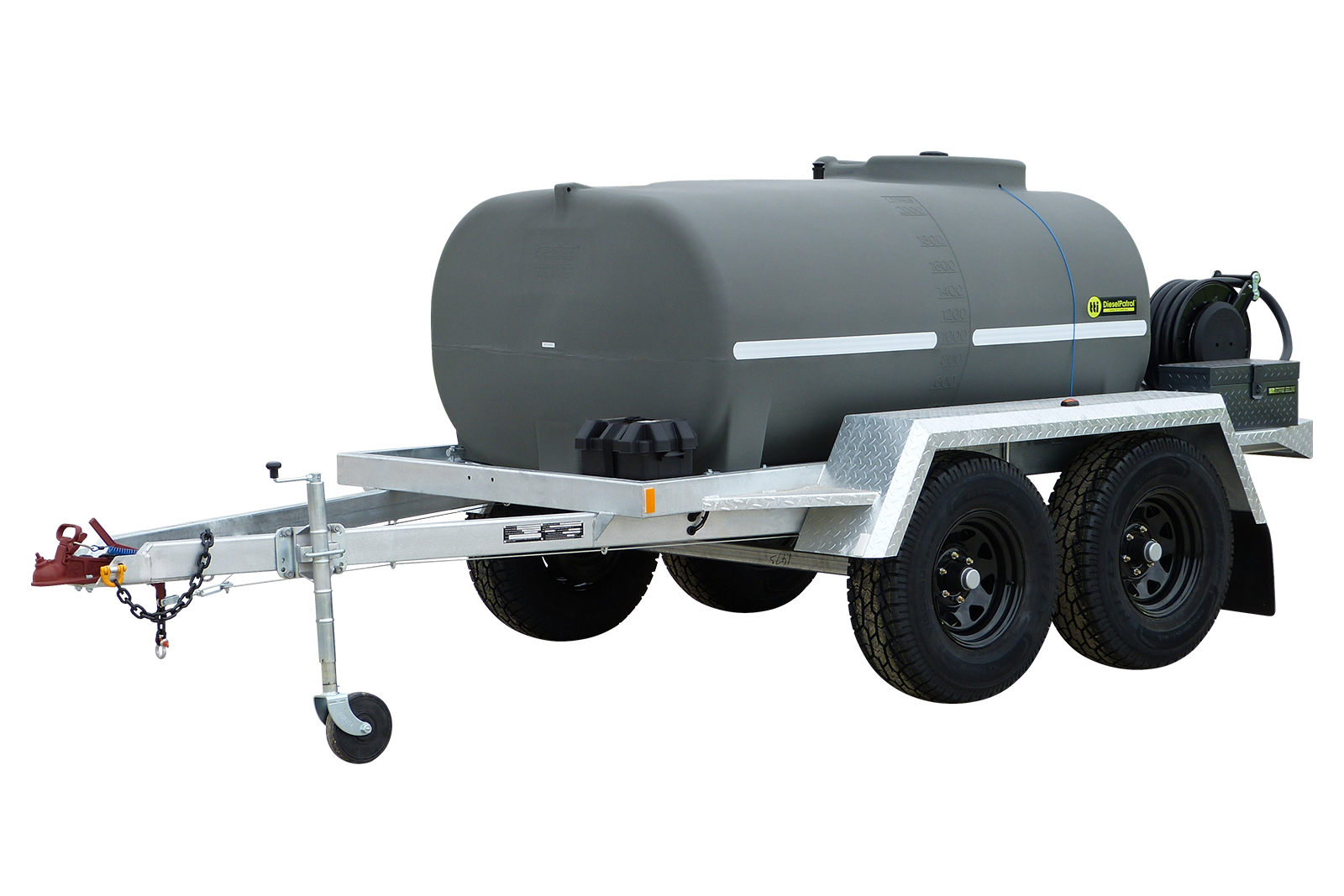

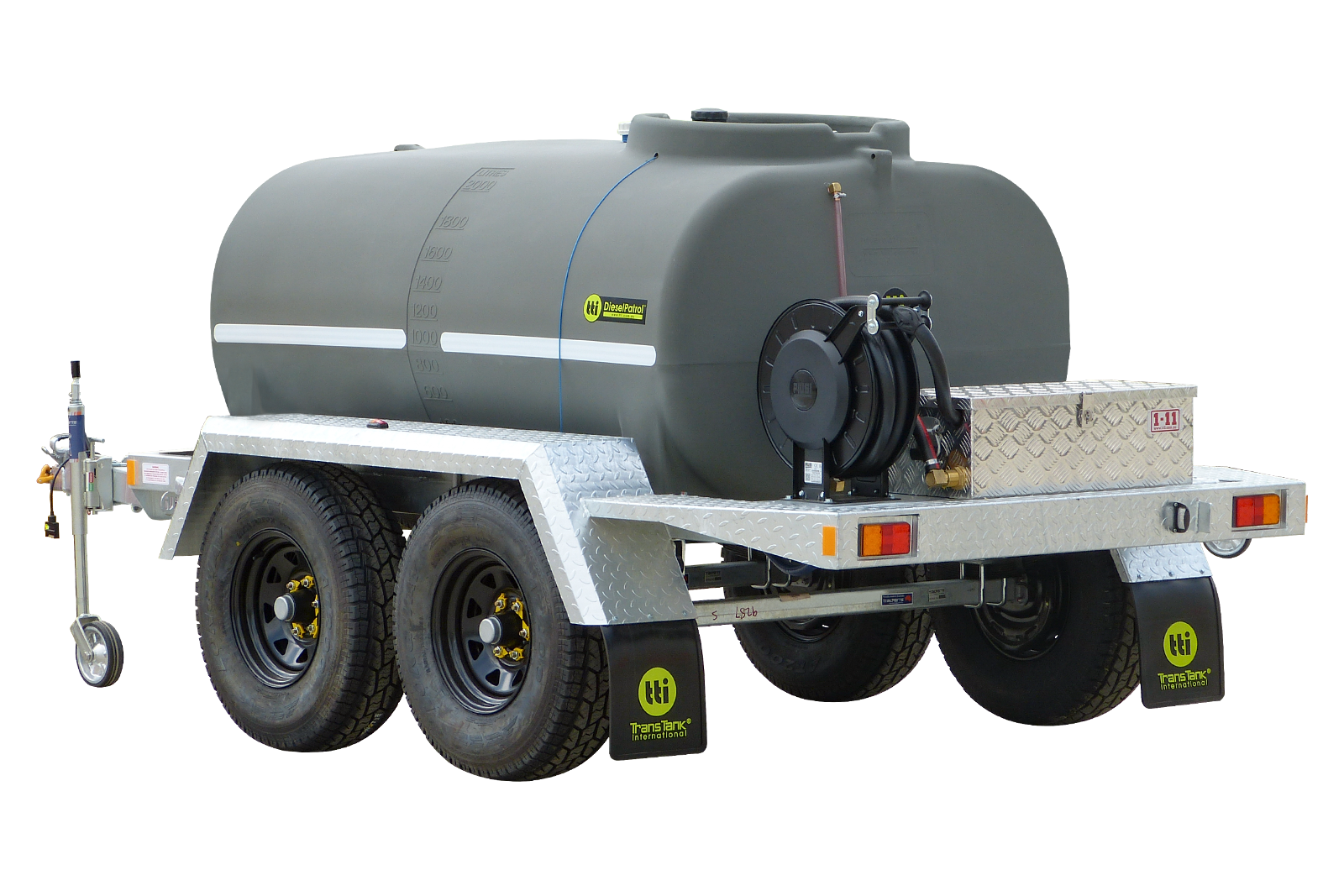

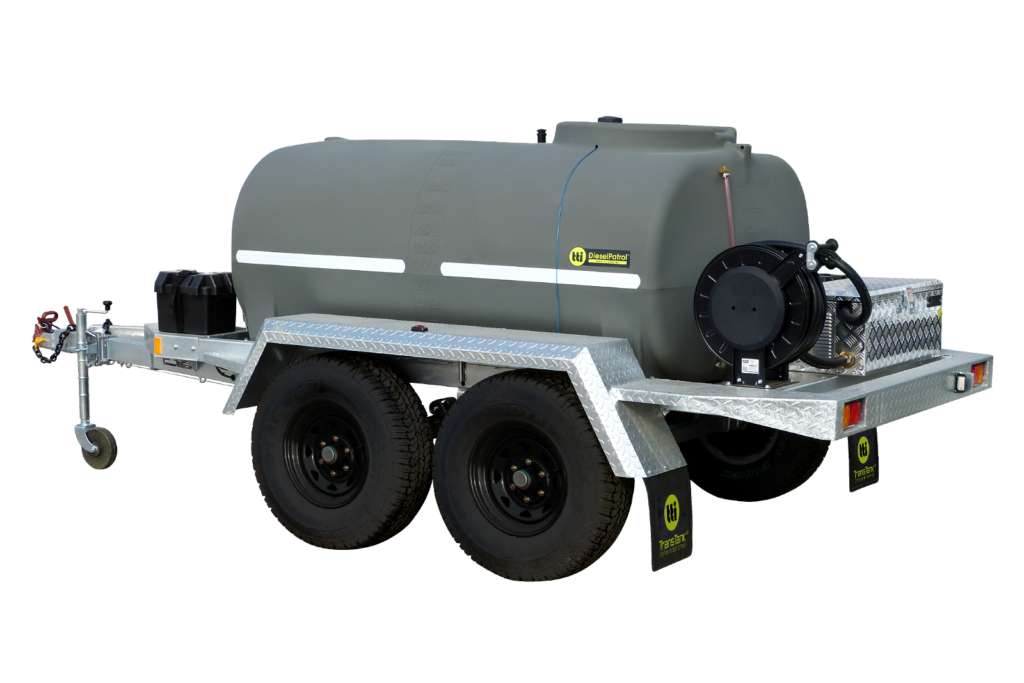

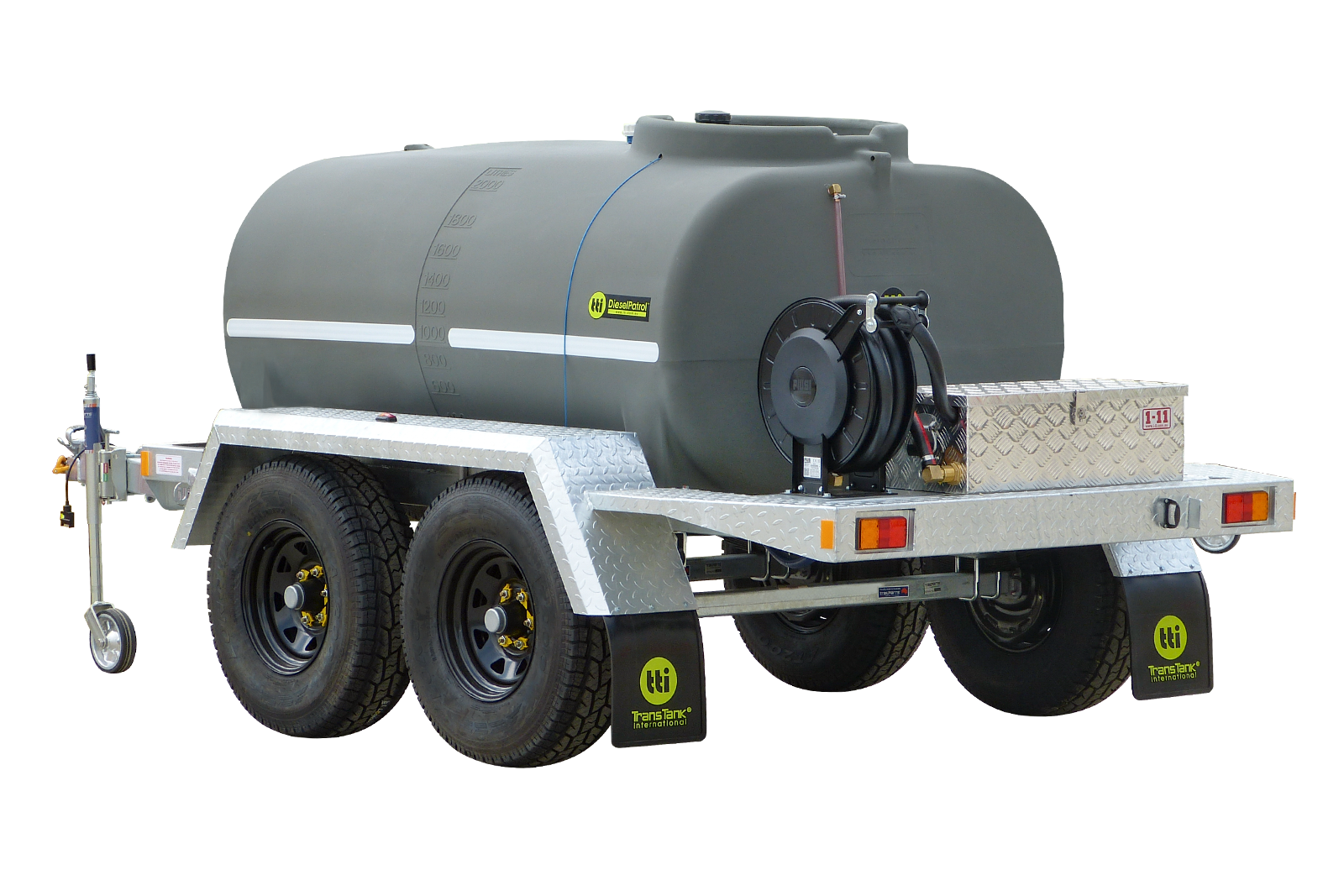

DieselPatrol15™ Refueling Trailer

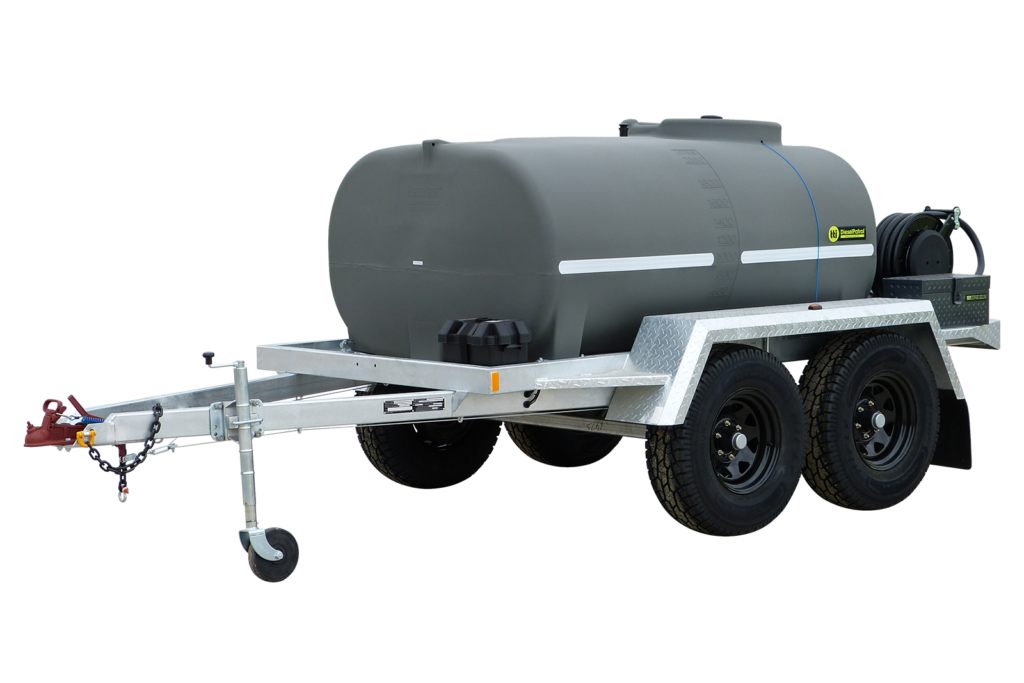

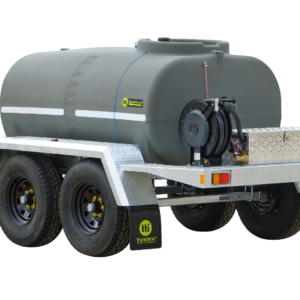

2000L DieselPatrol15™ Diesel Fuel Trailer
2000L DieselPatrol15™
PRICING DISPLAYED IS THE FROM PRICE. COST MAY VARY DUE TO OPTIONAL INCLUSIONS
1800 816 277
Contact our team to find out:
- If this product is right for you
- Info and pricing on options & accessories
- Stock availability & delivery timeframe
- More about our nation-wide subsidised freight
- Heavy-duty, fully-drainable, UV Stabilised poly tank with 25-year warranty
- Built to high-level ADR requirements – manufactured from specially formulated diesel-grade polyethylene, complying with Australian Standards AS1940-2004 and AS2809.2-2008 for the safe transportation of flammable liquids and dangerous goods by road.
- Strong heavy-duty Hot-dipped galvanised chassis with 50mm tow hitch
- 60L/min 12v Piusi pump mounted in lockable toolbox
- LiquidLocker™ baffle system fitted
- 65mm 4T-rated solid galvanised axles with 15″ Landcruiser wheels which provide high ground clearance and manoeuvrability with wheel nut indicators fitted
- Recessed LED combination tail lights & license plate light
- Large, 455mm lid opening with breather and filler cap
- 10m retractable reel with anti-kink 25mm hose & 1″ Nozzle
- Fitted with a 4-digit mechanical flow meter for accurate fuel measurement
- Cartridge filter fitted for pump protection and clean fuel delivery
- 2″ Lockable filling point
- Puncture resistant 6 ply radial tyres, helping heavy load capability
- Heavy duty jockey wheel and chequer plate mudguards
- ROVER Vehicle Type Approval – Certified & Compliant
- Electric braked with breakaway system (On-Road/Registrable) – On-Farm (Unbraked) option available
| UnBraked | Braked | |
| Weight: | 711kg | 853kg |
| Length: | 4697mm | 4662mm |
| Width: | 2110mm | 2110mm |
| Height: | 1641mm | 1641mm |
Features
To reduce surge and increase stability

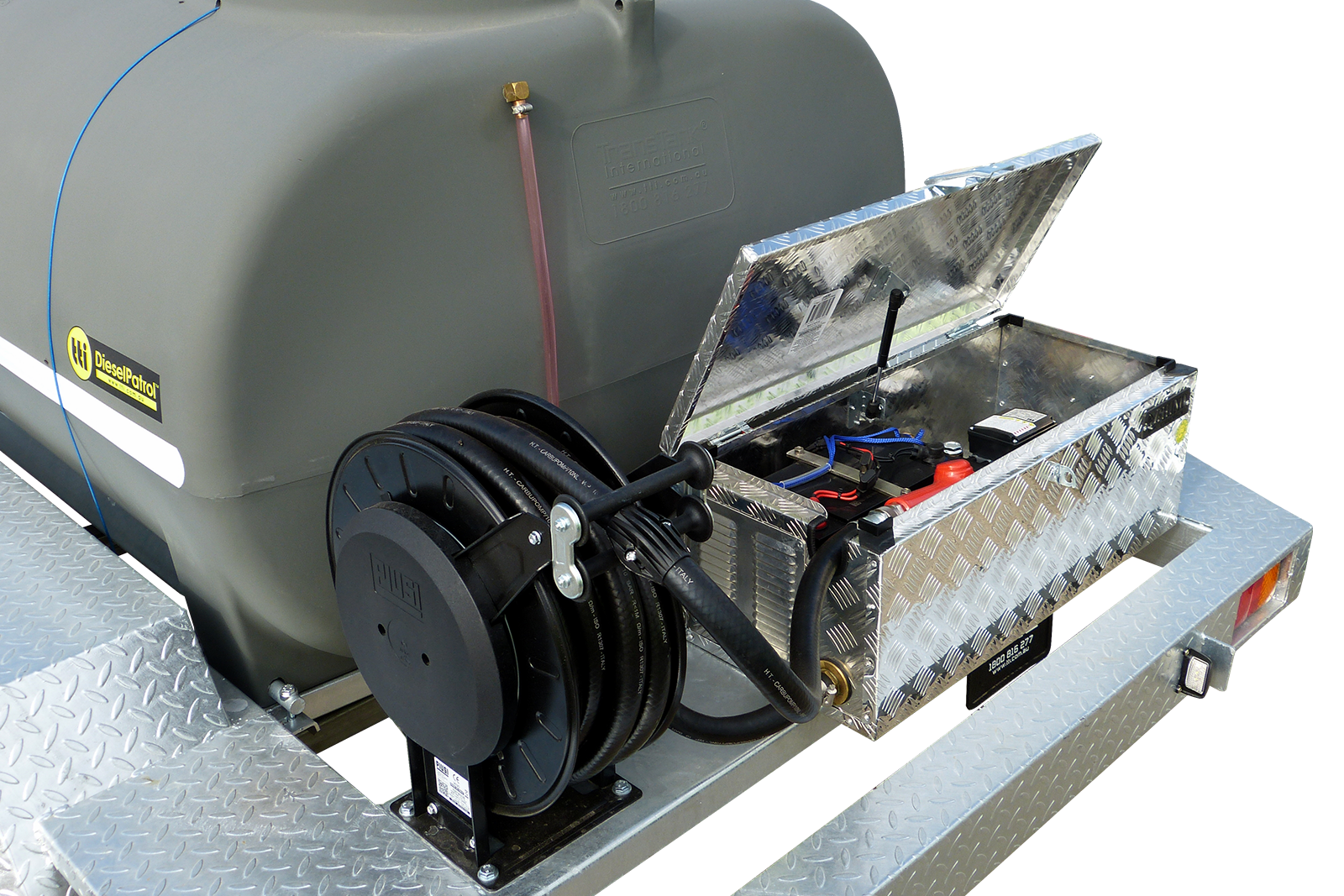

High flow Fluid Italian 60L/min 12v pump mounted in lockable toolbox
(Optional Reel Pictured)
For maximum protection for tough, long term durable performance
Provide high ground clearance and excellent maneuverability & wheel nut indicators fitted
For smooth towing on both the highway and rough terrain
Complete with breather & filler cap for easy access for cleaning if required
Recessed LED Combination Tail Lights & License Plate Light
FAQs
What types of vehicles can tow the DieselPatrol15™ Diesel Fuel Trailer?
The DieselPatrol15™ is equipped with a 70mm tow ball coupling, making it suitable for a wide range of towing vehicles, including 4WDs, utes, and light trucks. Always ensure that your vehicle’s towing capacity meets or exceeds the trailer’s total loaded weight and that your braking system complies with local regulations.
Can the DieselPatrol15™ be used for transporting other liquids?
No. The DieselPatrol15™ is purpose-built for diesel fuel and manufactured from diesel-grade polyethylene. Using it for other liquids may compromise safety, affect performance, and void compliance with Australian Standards. Always use the trailer only for diesel transport.
How do I maintain the pump and ensure its longevity?
Inspect the pump and hoses regularly for wear or damage. Replace the cartridge filter periodically to maintain clean, efficient fuel delivery and protect the pump from contaminants. When not in use, store the trailer in a shaded, secure area to protect the tank and fittings from prolonged UV exposure.
What safety measures should I take when refuelling?
Always refuel in a well-ventilated area away from ignition sources. Ensure the hose and nozzle are properly grounded to prevent static build-up. Use the lockable toolbox to secure refuelling equipment when not in use, and utilise the mechanical flow meter for accurate, controlled fuel dispensing.
Is there a specific way to store the DieselPatrol15™ when not in use?
Yes. Store the DieselPatrol15™ in a cool, dry environment away from direct sunlight. If storing the trailer for an extended period, either empty the tank completely or add a diesel stabiliser to prevent fuel degradation. Check tyres, wiring, and seals periodically to ensure the trailer remains in road-ready condition.
“This [unit] has now pumped out 16,000L without an issue – good quality retractable hose, right down to good quality nozzles which pump out 85L/min …. Hasn’t had one hiccup – been extremely reliable. I fully recommend TTi, they produce a good quality product! “
Dean, Ho’s Hire – DieselPatrol™
