• Exceptionally smooth towing with excellent weight distribution
  • Heavy-duty, fully-drainable, UV Stabilised poly tank with 15-year warranty
  • Fitted with LiquidLocker™ baffle system
  • Manufactured from specifically formulated diesel grade polyethylene that meets International Regulation ECE R34.01 requirements, and complies with AS1940-2004 and AS2809.2-2008
  • Built to high level ADR requirements, with heavy duty steel chassis featuring hot-dip galvanising for maximum protection for tough, long term durable performance
  • Fluid Italian 60L/min 12v Pump mounted in lockable toolbox
  • 65mm 2T-rated solid galvanised axles with 15″ Landcruiser wheels
  • Recessed LED combination tail lights & license plate light
  • Large, 455mm lid opening with breather and filler cap
  • 50mm tow hitch
  • 2″ Lockable filling point
  • Heavy duty chequer plate mudguards
  • Heavy duty jockey wheel
  • Greatly improved puncture resistance with our 6 ply radial tyres, which also helps heavy load capability
  • Hydraulic Override Braked (On-Road/Registrable) – On Farm (Unbraked) option available
Variant: Unbraked Braked
Weight: 550kg 570kg
Length: 4000mm 4000mm
Width: 1900mm 1900mm
Height: 1410mm 1410mm

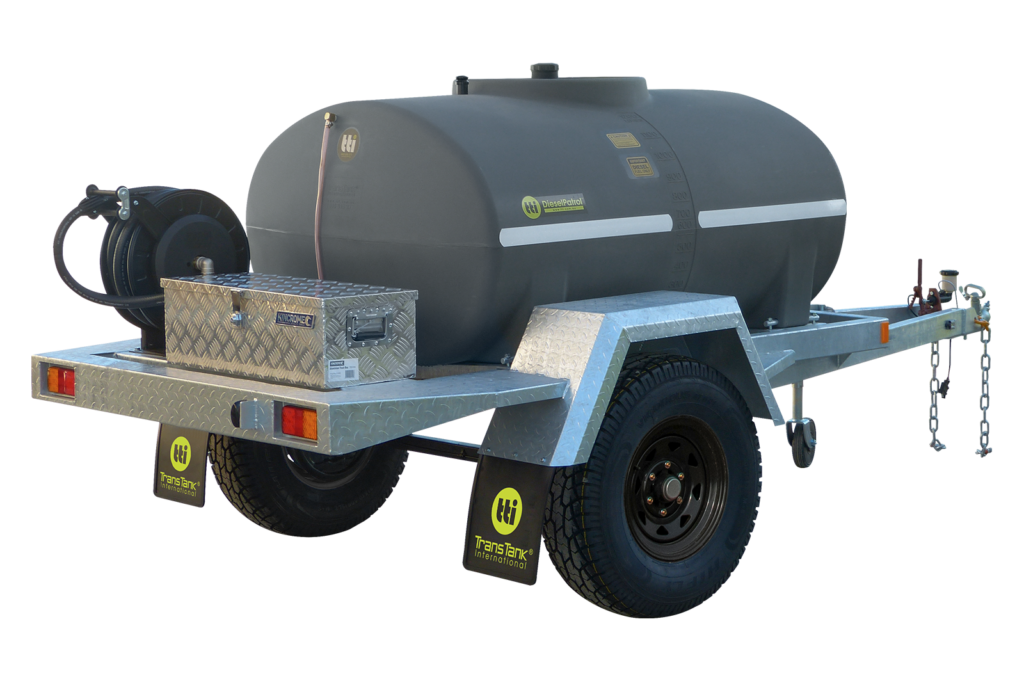

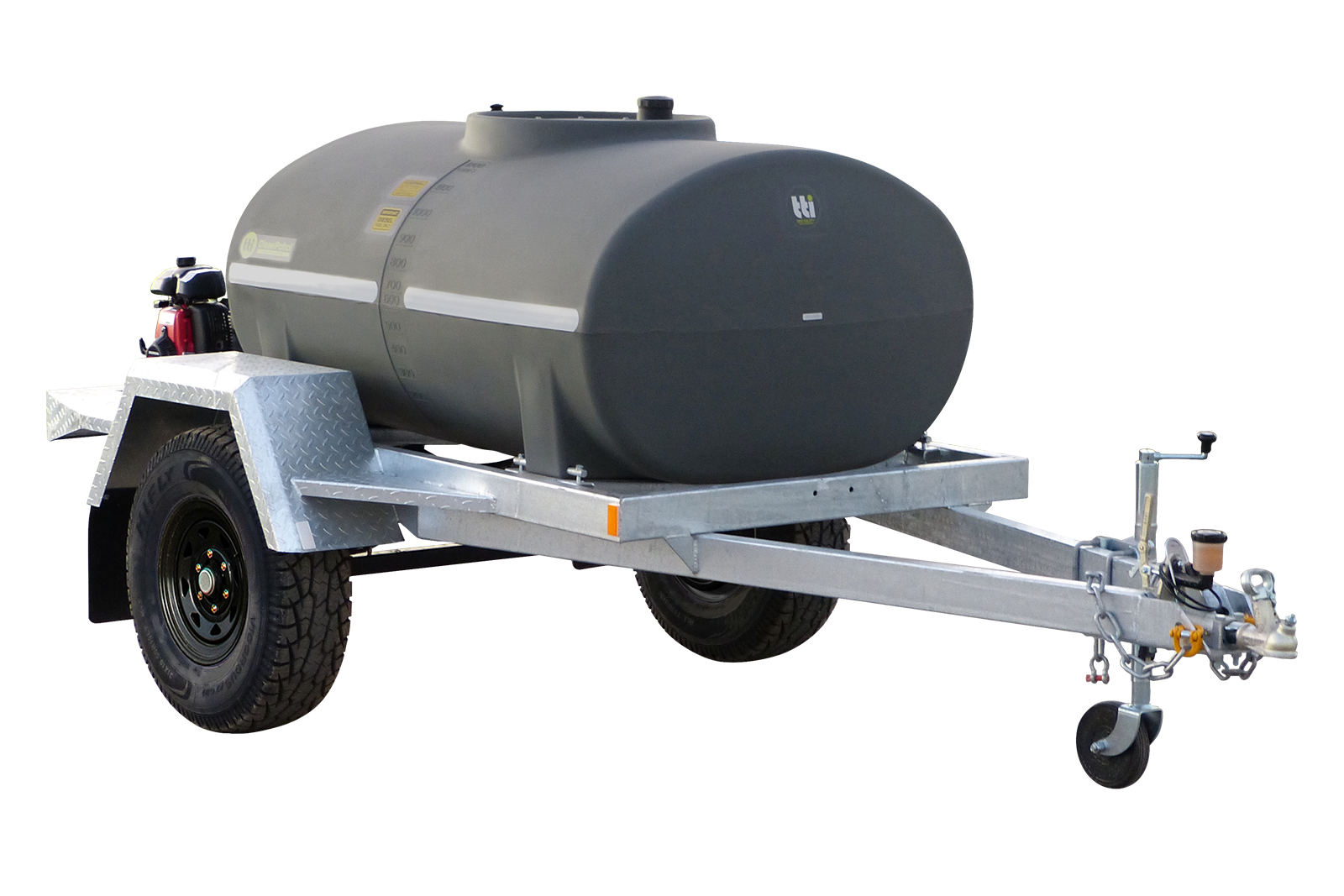

DieselPatrol15™ Refuelling Trailer

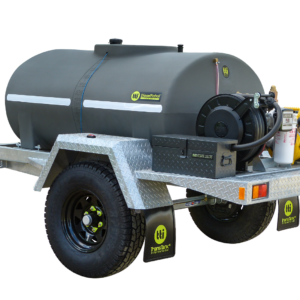

1200L DieselPatrol15™ Diesel Fuel Trailer

1200L DieselPatrol15™
Clear

$9,905.00$13,501.00 Incl GST

Variants:
UnBraked, Non Registrable
$9,905.00Incl GST
DRX1200LF060V1
Braked, Road Registrable
$13,501.00Incl GST
DRQ1200LF060V1

*Pricing displayed is the from price. Cost may vary due to optional inclusions.

Contact our team to find out:

  • If this product is right for you
  • Info and pricing on options & accessories
  • Delivery timeframe
Upgrade options (Enquire for Pricing)
10m Retractable Diesel Hose Reel
4-Digit Mechanical Flow Meter (000.0 L)
5-Digit Flow Meter
Cartridge Filter to suit GX50

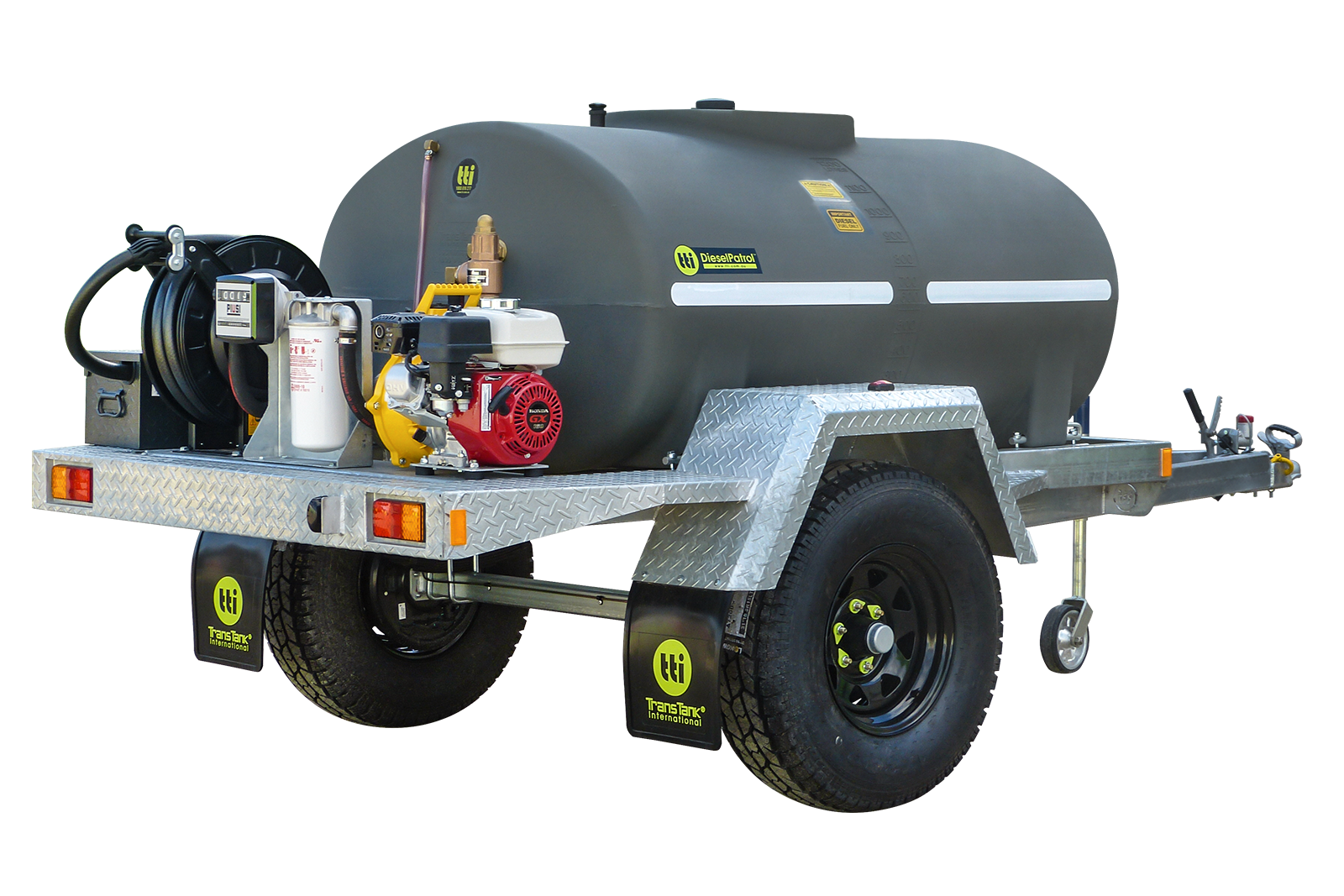

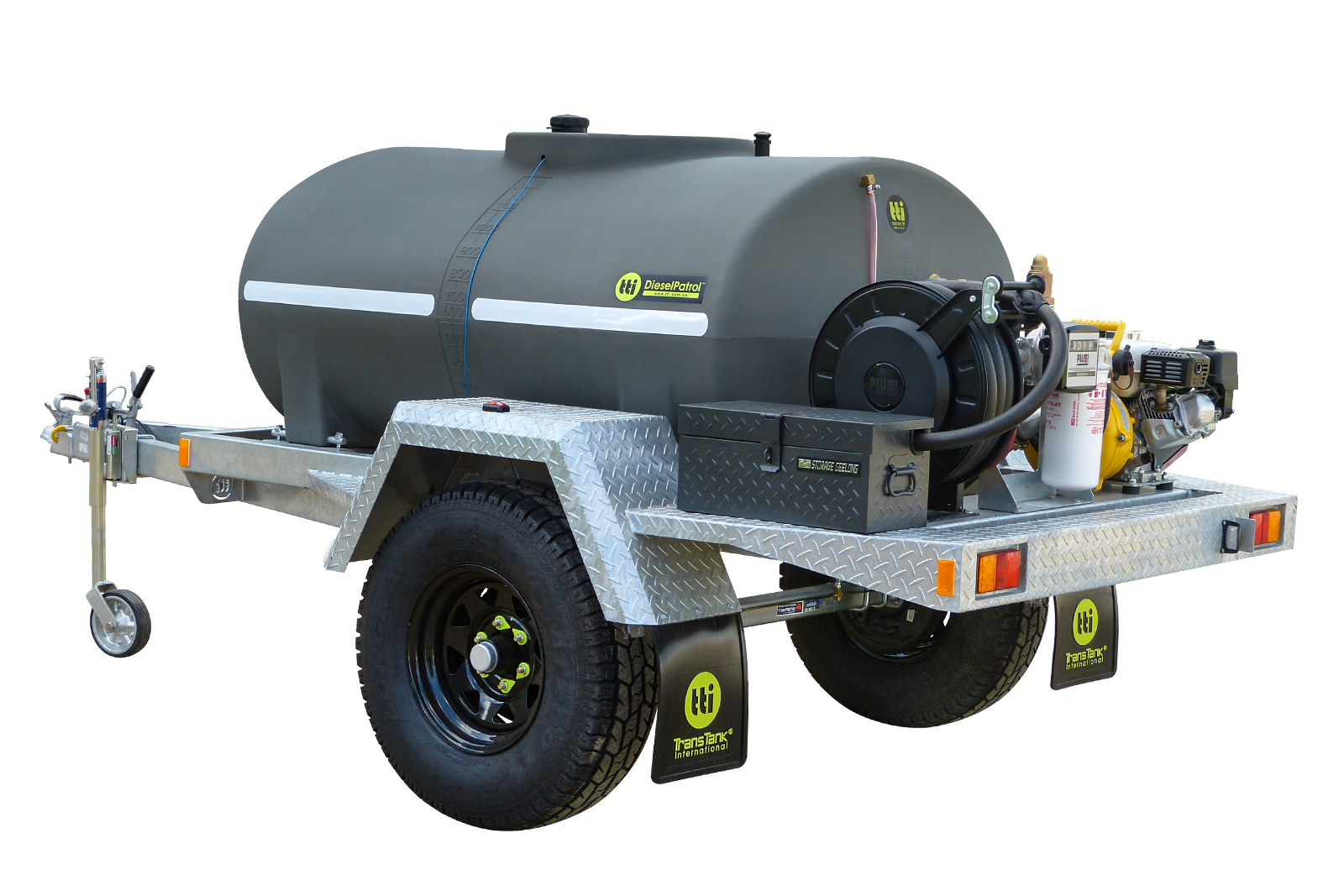

GX50 Honda Engine
  • Exceptionally smooth towing with excellent weight distribution
  • Heavy-duty, fully-drainable, UV Stabilised poly tank with 15-year warranty
  • Fitted with LiquidLocker™ baffle system
  • Manufactured from specifically formulated diesel grade polyethylene that meets International Regulation ECE R34.01 requirements, and complies with AS1940-2004 and AS2809.2-2008
  • Built to high level ADR requirements, with heavy duty steel chassis featuring hot-dip galvanising for maximum protection for tough, long term durable performance
  • Fluid Italian 60L/min 12v Pump mounted in lockable toolbox
  • 65mm 2T-rated solid galvanised axles with 15″ Landcruiser wheels
  • Recessed LED combination tail lights & license plate light
  • Large, 455mm lid opening with breather and filler cap
  • 50mm tow hitch
  • 2″ Lockable filling point
  • Heavy duty chequer plate mudguards
  • Heavy duty jockey wheel
  • Greatly improved puncture resistance with our 6 ply radial tyres, which also helps heavy load capability
  • Hydraulic Override Braked (On-Road/Registrable) – On Farm (Unbraked) option available
Variant: Unbraked Braked
Weight: 550kg 570kg
Length: 4000mm 4000mm
Width: 1900mm 1900mm
Height: 1410mm 1410mm

Features

Fully-Drainable UV Stabilised Poly Tank Fitted with LiquidLocker™ Baffle System

To reduce surge and increase stability

Heavy Duty Hot-dip Galvanised Steel Chassis

For maximum protection for tough, long term durable performance

Fluid Italian 60L/min 12v Pump

High flow 60L/min 12v Pump Mounted in Lockable Toolbox

6m Hose and Auto Shut Off Nozzle

(Optional Reel Pictured)

Large 455mm Lid Opening

Complete with breather & filler cap for easy access for cleaning if required

65mm 2T-rated Galvanised Axles with 15″ Landcruiser Wheels

For strength, maximum ground clearance, and excellent maneuverability

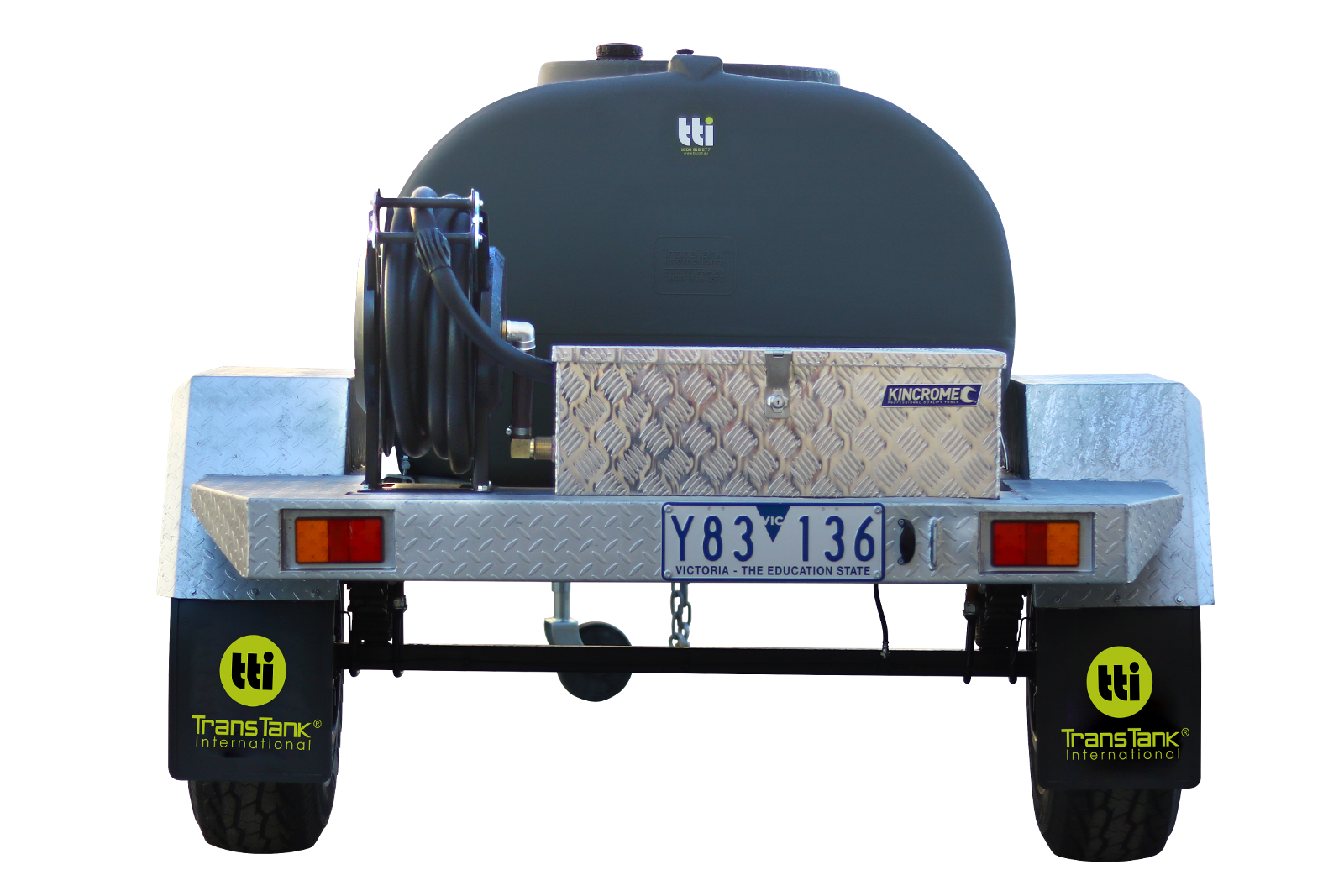

Recessed LED Combination Tail Lights & License Plate Light

To make the trailer more visible.

Unique Tank Positioning

For smooth towing on both the highway and rough terrain
