- Heavy-duty, fully-drainable, UV Stabilised poly tank with 25-year warranty
- Built to high-level ADR requirements – manufactured from specially formulated diesel-grade polyethylene, complying with Australian Standards AS1940-2004 and AS2809.2-2008 for the safe transportation of flammable liquids and dangerous goods by road.
- Strong heavy-duty Hot-dipped galvanised chassis with 50mm tow hitch
- 60L/min 12v Piusi pump mounted in lockable toolbox
- LiquidLocker™ baffle system fitted
- 65mm 4T-rated solid galvanised axles with 15″ Landcruiser wheels which provide high ground clearance and manoeuvrability with wheel nut indicators fitted
- Recessed LED combination tail lights & license plate light
- Large, 455mm lid opening with breather and filler cap
- 10m retractable reel with anti-kink 25mm hose & 1″ Nozzle
- Fitted with a 4-digit mechanical flow meter for accurate fuel measurement
- Cartridge filter fitted for pump protection and clean fuel delivery
- 2″ Lockable filling point
- Puncture resistant 6 ply radial tyres, helping heavy load capability
- Heavy duty jockey wheel and chequer plate mudguards
- ROVER Vehicle Type Approval – Certified & Compliant
- Hydraulic Override Braked (On-Road/Registrable) – On Farm (Unbraked) option available
| UnBraked | Braked | |
| Weight: | 487kg | 513kg |
| Length: | 3833mm | 3883mm |
| Width: | 1910mm | 19010mm |
| Height: | 1582mm | 1597mm |

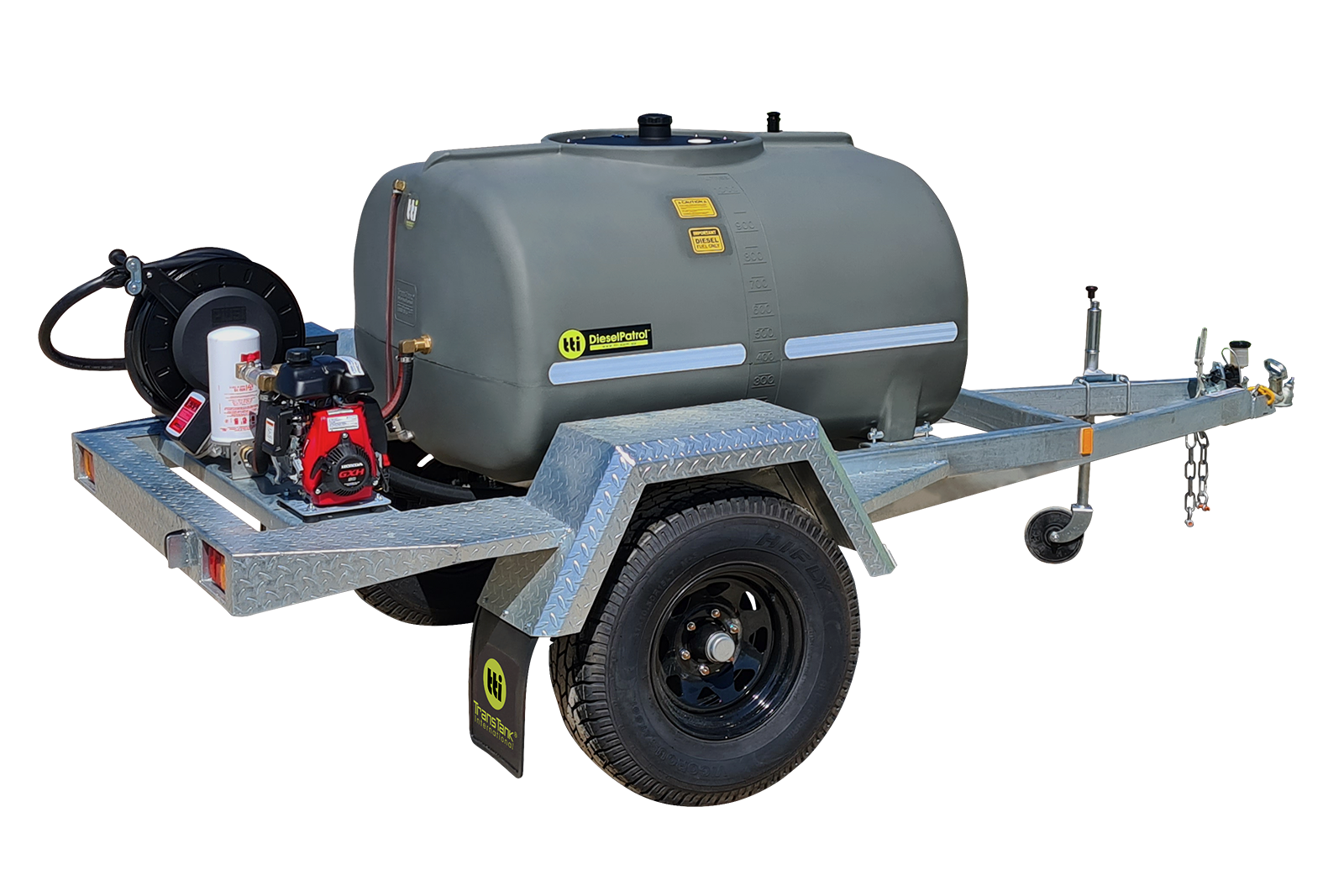

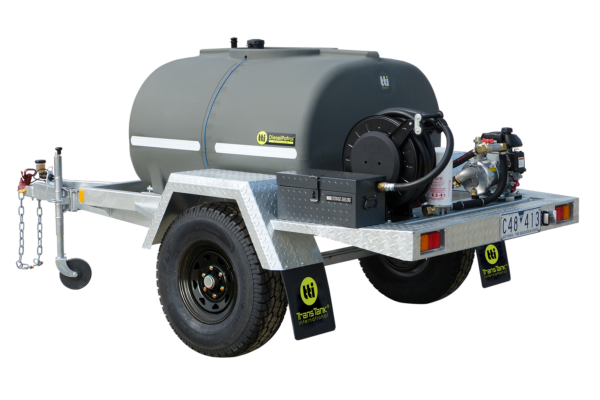

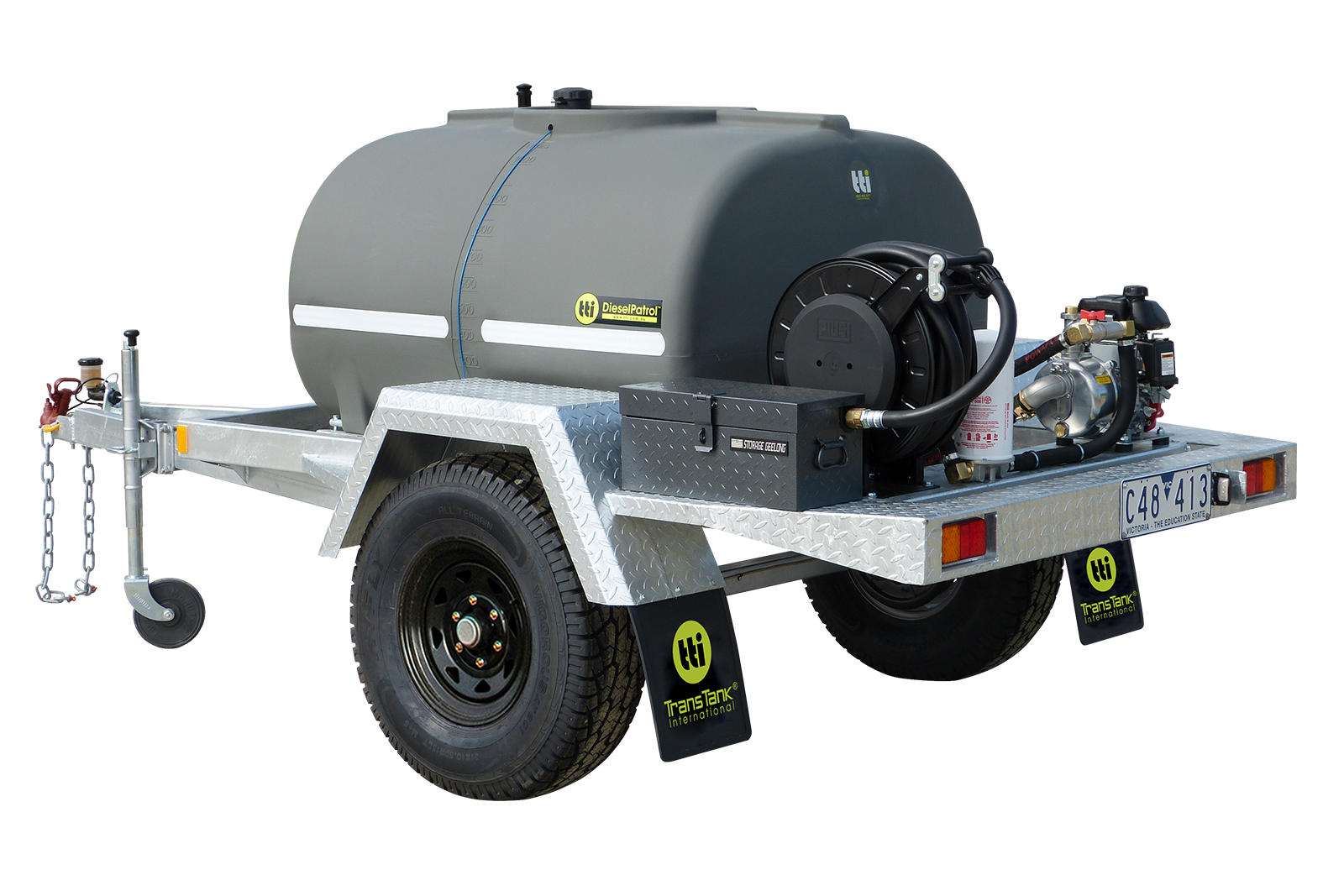

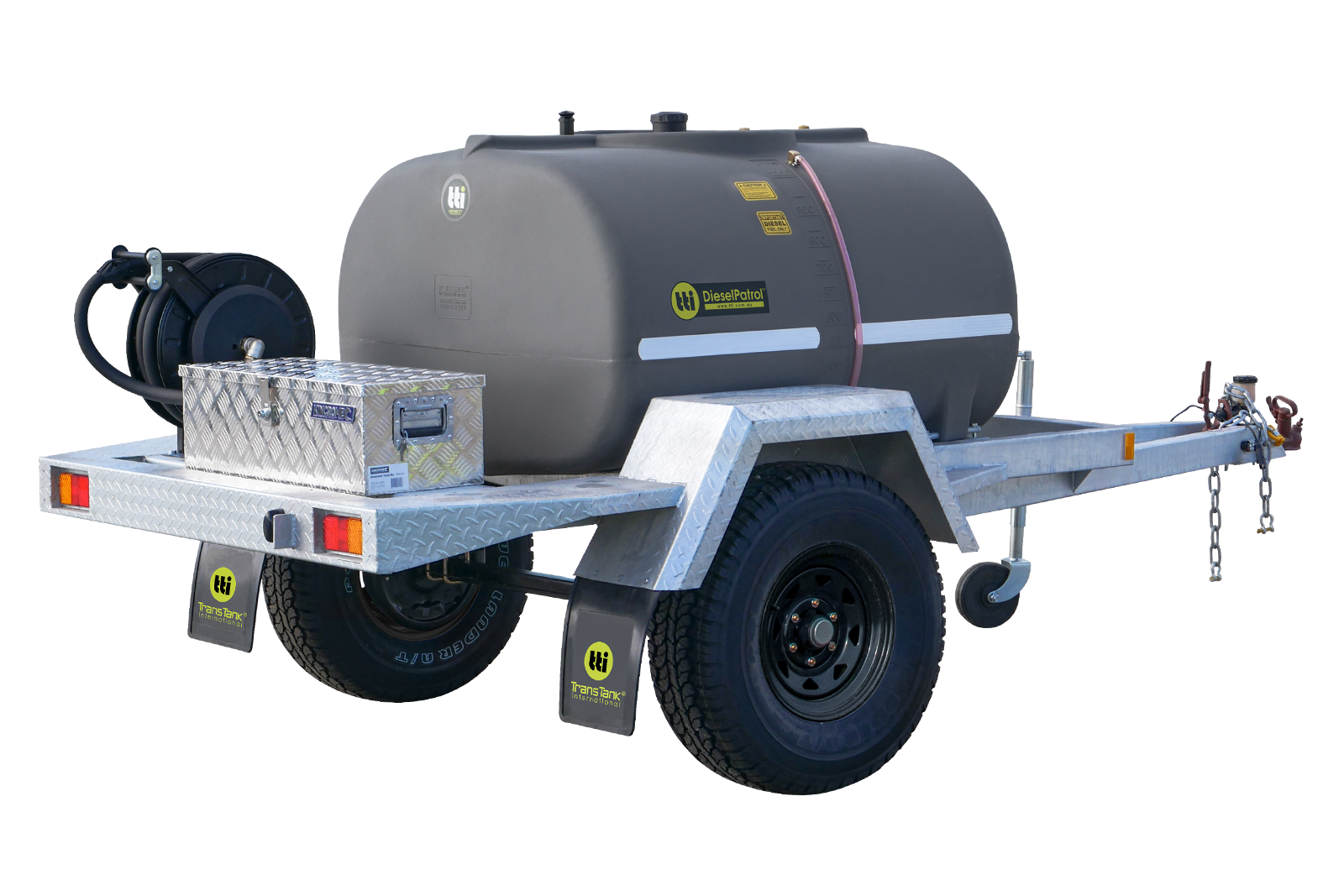

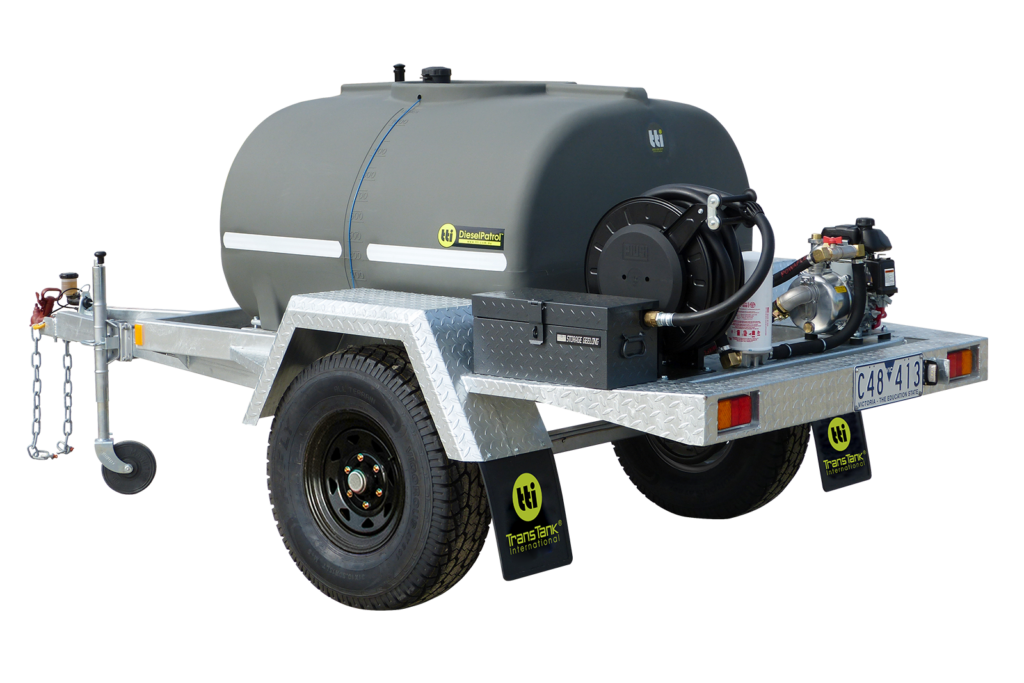

DieselPatrol15™ Refueling Trailer

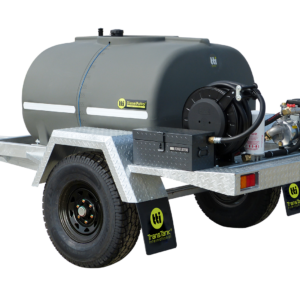

1000L DieselPatrol15™ Diesel Fuel Trailer
1000L DieselPatrol15™
PRICING DISPLAYED IS THE FROM PRICE. COST MAY VARY DUE TO OPTIONAL INCLUSIONS
1800 816 277
Contact our team to find out:
- If this product is right for you
- Info and pricing on options & accessories
- Stock availability & delivery timeframe
- More about our nation-wide subsidised freight
- Heavy-duty, fully-drainable, UV Stabilised poly tank with 25-year warranty
- Built to high-level ADR requirements – manufactured from specially formulated diesel-grade polyethylene, complying with Australian Standards AS1940-2004 and AS2809.2-2008 for the safe transportation of flammable liquids and dangerous goods by road.
- Strong heavy-duty Hot-dipped galvanised chassis with 50mm tow hitch
- 60L/min 12v Piusi pump mounted in lockable toolbox
- LiquidLocker™ baffle system fitted
- 65mm 4T-rated solid galvanised axles with 15″ Landcruiser wheels which provide high ground clearance and manoeuvrability with wheel nut indicators fitted
- Recessed LED combination tail lights & license plate light
- Large, 455mm lid opening with breather and filler cap
- 10m retractable reel with anti-kink 25mm hose & 1″ Nozzle
- Fitted with a 4-digit mechanical flow meter for accurate fuel measurement
- Cartridge filter fitted for pump protection and clean fuel delivery
- 2″ Lockable filling point
- Puncture resistant 6 ply radial tyres, helping heavy load capability
- Heavy duty jockey wheel and chequer plate mudguards
- ROVER Vehicle Type Approval – Certified & Compliant
- Hydraulic Override Braked (On-Road/Registrable) – On Farm (Unbraked) option available
| UnBraked | Braked | |
| Weight: | 487kg | 513kg |
| Length: | 3833mm | 3883mm |
| Width: | 1910mm | 19010mm |
| Height: | 1582mm | 1597mm |
Features
To reduce surge and increase stability
60L/min 12v Puisi pump mounted in lockable toolbox
(Optional Reel Pictured)
For maximum protection for tough, long term durable performance
Provide high ground clearance and excellent maneuverability & wheel nut indicators fitted
Recessed LED Combination Tail Lights & License Plate Light
For smooth towing on both the highway and rough terrain
Complete with breather & filler cap for easy access for cleaning if required
“This [unit] has now pumped out 16,000L without an issue – good quality retractable hose, right down to good quality nozzles which pump out 85L/min …. Hasn’t had one hiccup – been extremely reliable. I fully recommend TTi, they produce a good quality product! “
Dean, Ho’s Hire – DieselPatrol™
FAQs
What types of vehicles can the DieselPatrol15™ Diesel Fuel Trailer be towed by?
The DieselPatrol15™ can be towed by vehicles fitted with a 50mm tow hitch. It suits utes, 4WDs, and other vehicles rated to handle the trailer’s loaded weight. Confirm your vehicle’s towing capacity before use.
Can I use the DieselPatrol15™ for transporting other liquids besides diesel?
The trailer is built for diesel only. Do not use it for other liquids, as this can affect safety and damage the tank and components.
How do I ensure the pump operates effectively?
Check the cartridge filter often and replace it when dirty. Keep the tank free from contaminants and avoid using water during cleaning. Follow the guidelines in the manual to maintain steady pump performance.
What should I do if I experience a fuel leak?
Stop using the trailer at once and secure the area. Inspect the tank and fittings for damage. Contact a qualified technician to carry out repairs and confirm the trailer remains safe to operate.
