- Heavy-duty, fully-drainable, UV Stabilised poly tank with 25-year warranty
- Built to high-level ADR requirements – manufactured from specially formulated diesel-grade polyethylene, complying with Australian Standards AS1940-2004 and AS2809.2-2008 for the safe transportation of flammable liquids and dangerous goods by road.
- Strong heavy-duty Hot-dipped galvanised chassis with 50mm tow hitch
- 60L/min 12v Piusi pump mounted in lockable toolbox
- LiquidLocker™ baffle system fitted
- 65mm 4T-rated solid galvanised axles with 15″ Landcruiser wheels which provide high ground clearance and manoeuvrability with wheel nut indicators fitted
- Recessed LED combination tail lights & license plate light
- Large, 455mm lid opening with breather and filler cap
- 10m retractable reel with anti-kink 25mm hose & 1″ Nozzle
- Fitted with a 4-digit mechanical flow meter for accurate fuel measurement
- Cartridge filter fitted for pump protection and clean fuel delivery
- 2″ Lockable filling point
- Puncture resistant 6 ply radial tyres, helping heavy load capability
- Heavy duty jockey wheel and chequer plate mudguards
- ROVER Vehicle Type Approval – Certified & Compliant
- Hydraulic Override Braked (On-Road/Registrable) – On Farm (Unbraked) option available
| UnBraked | Braked | |
| Weight: | 790kg | 800kg |
| Length: | 5000mm | 5000mm |
| Width: | 2150mm | 2150mm |
| Height: | 1600mm | 1600mm |

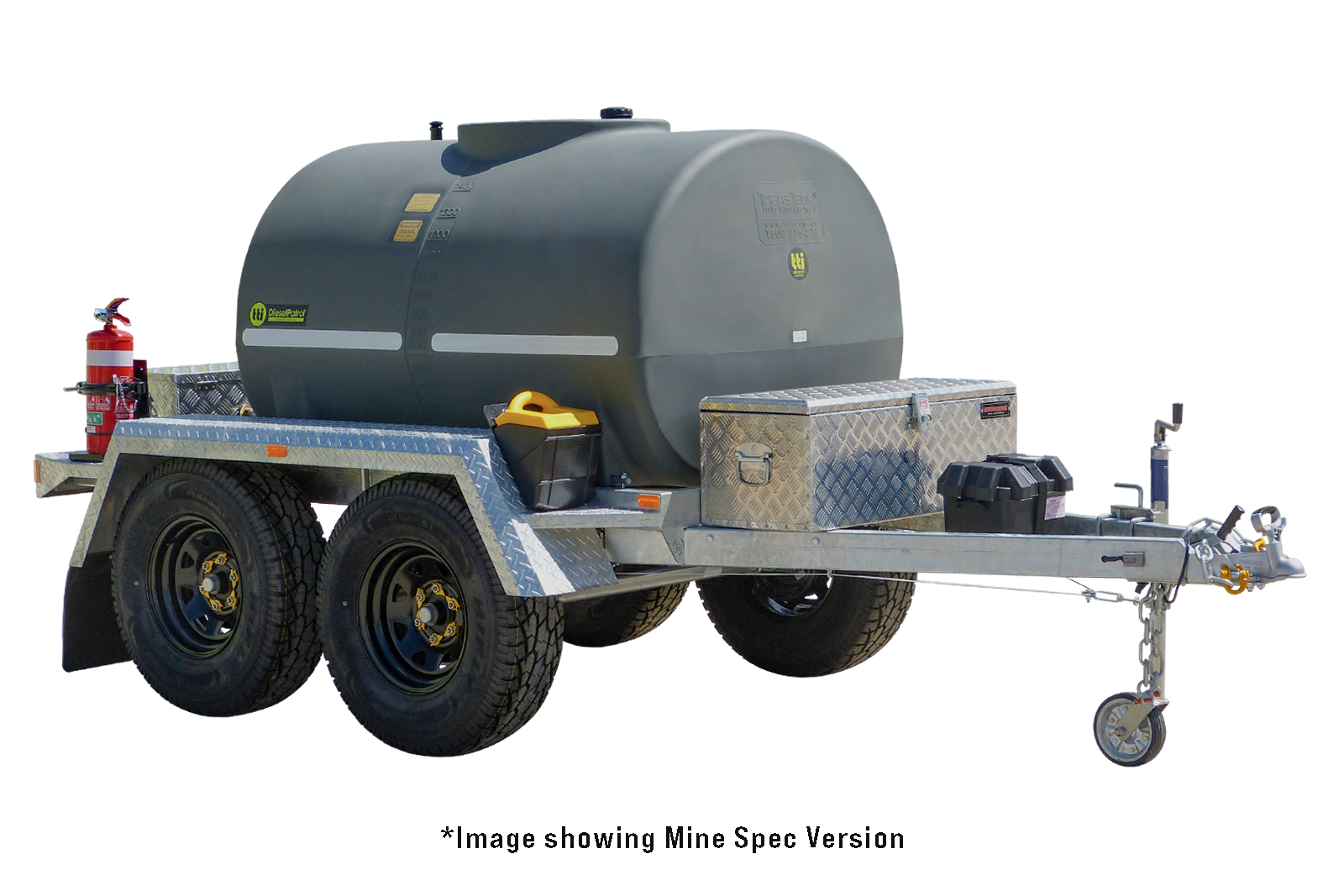

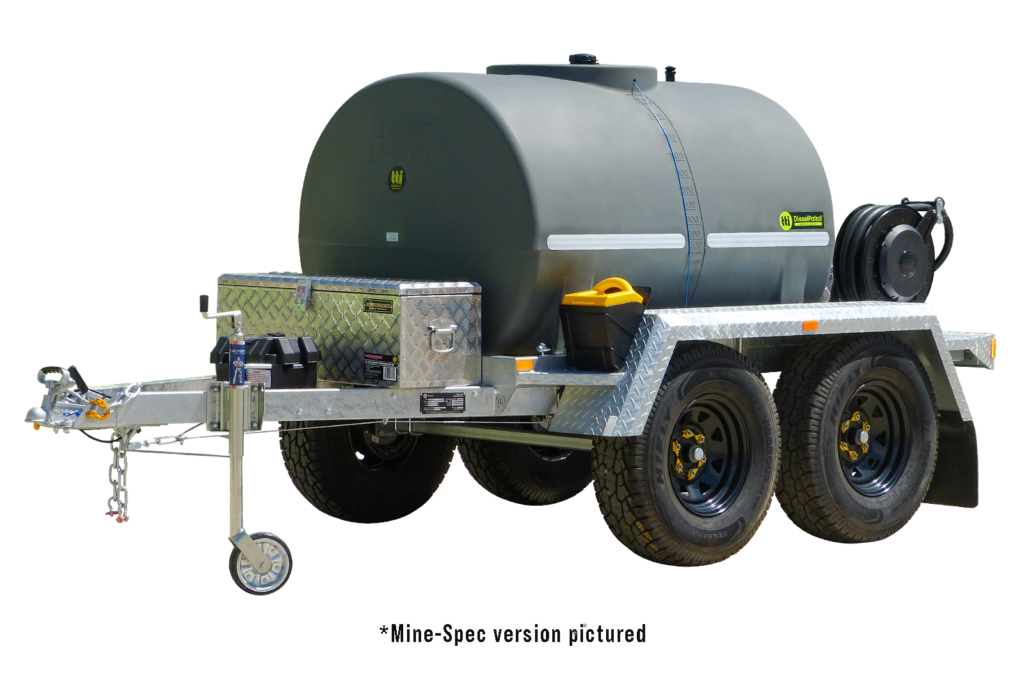

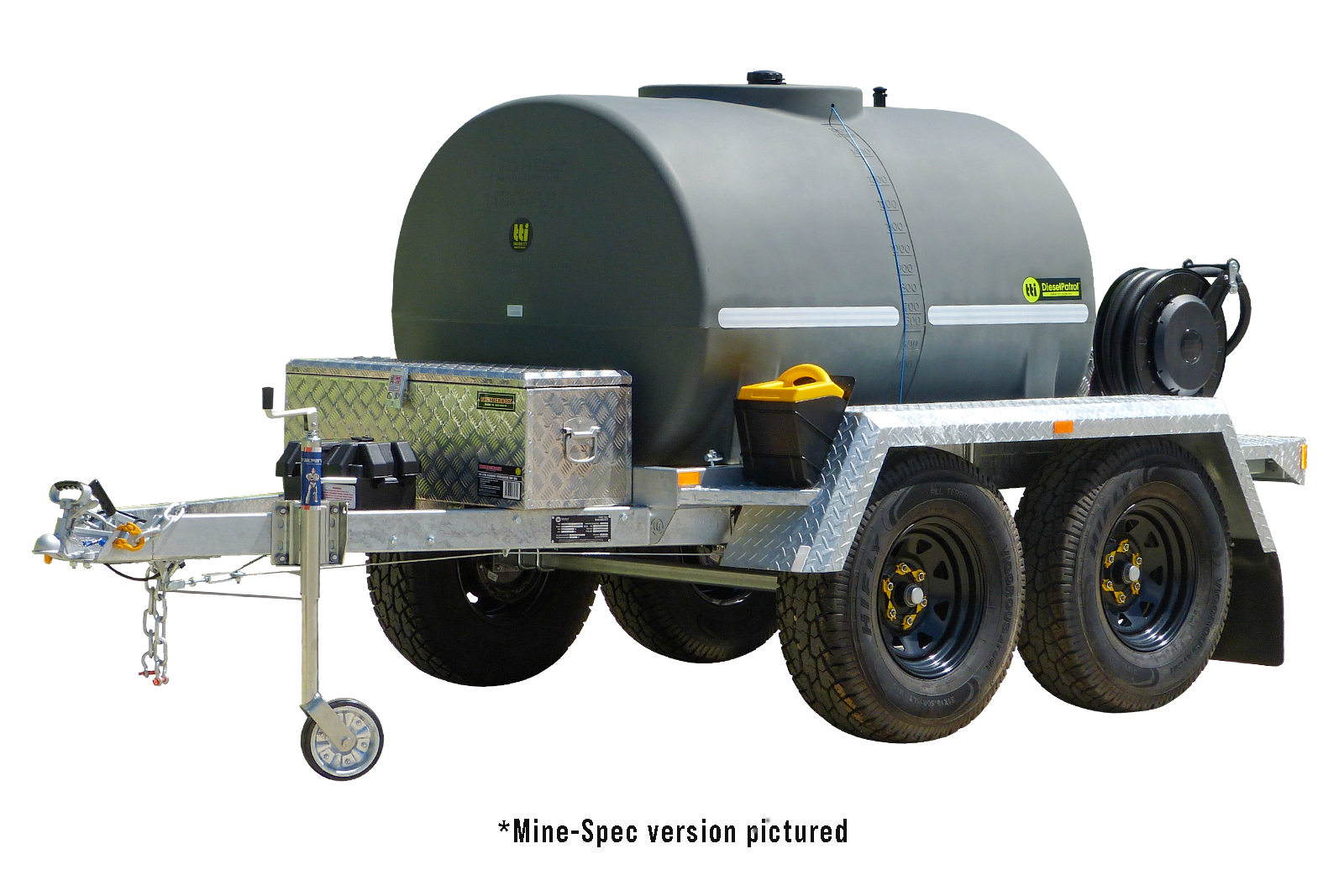

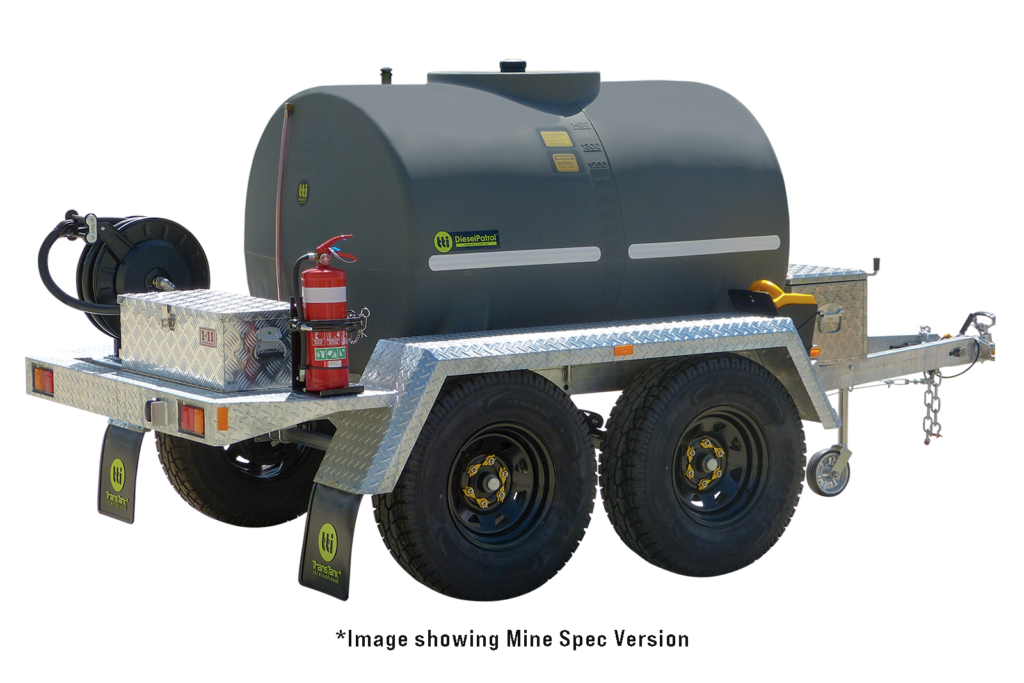

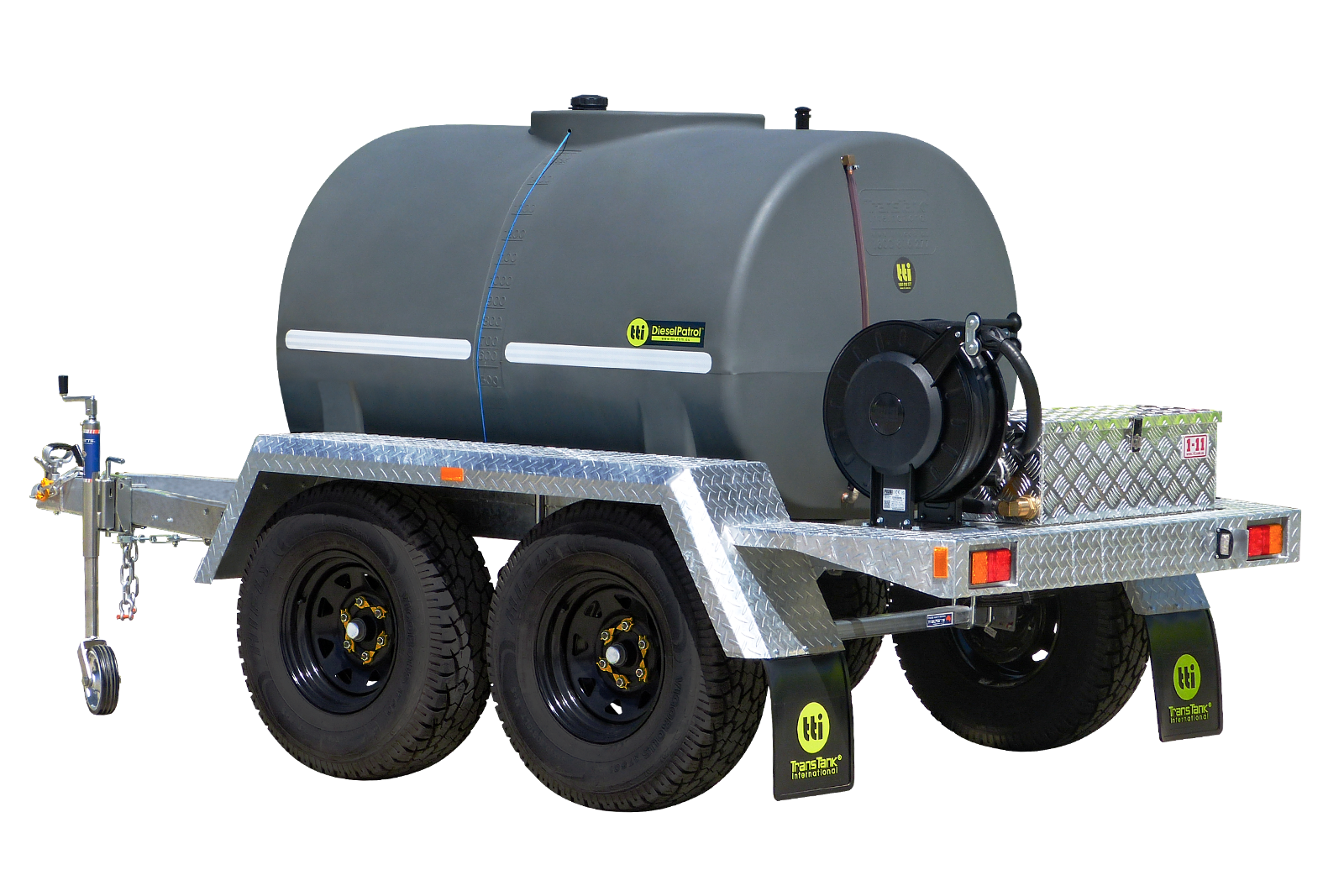

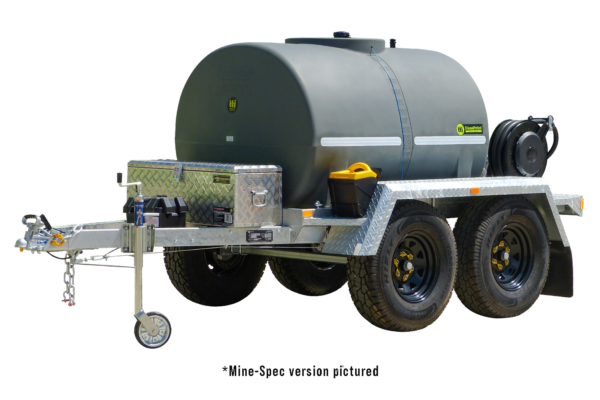

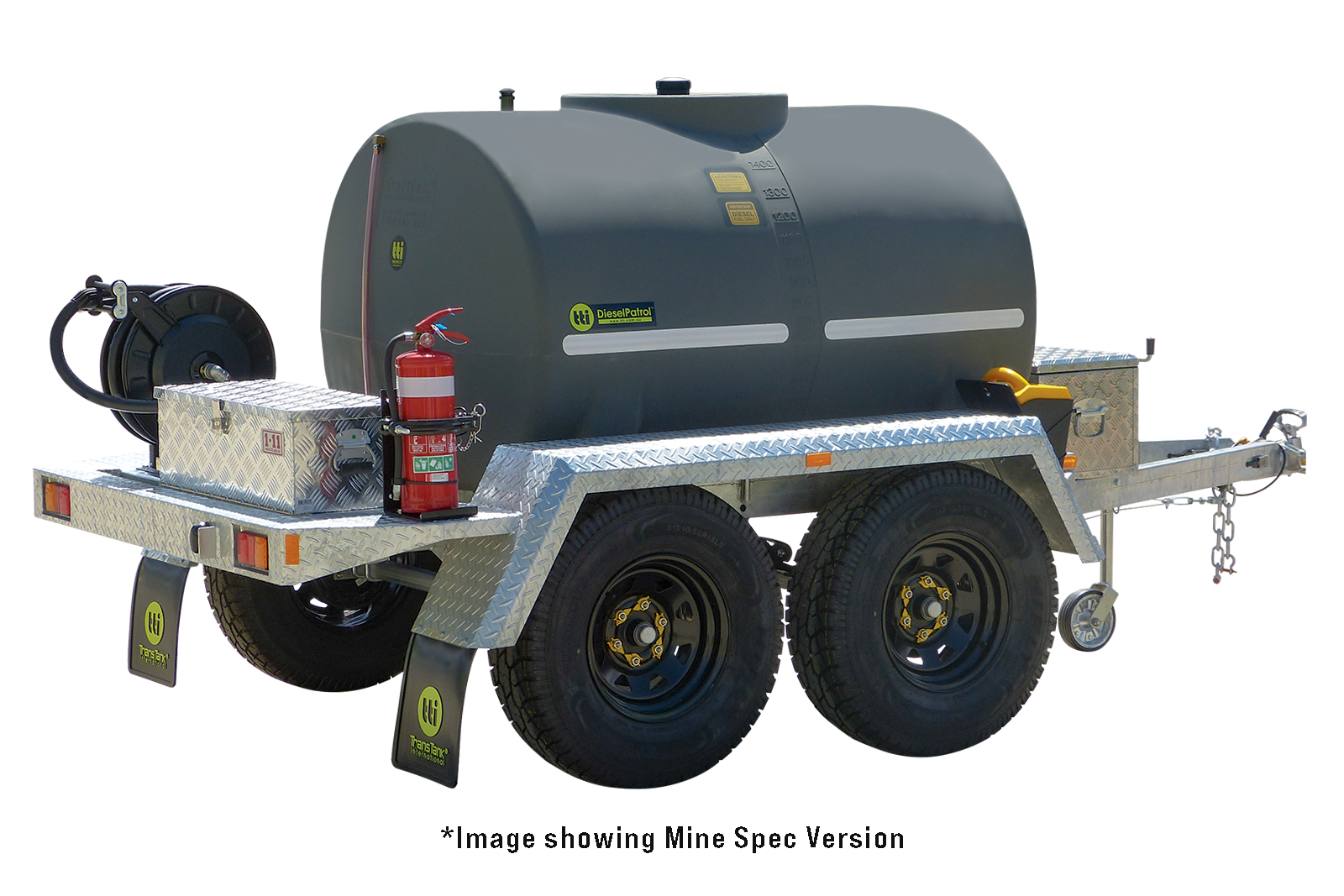

DieselPatrol15™ Refueling Trailer

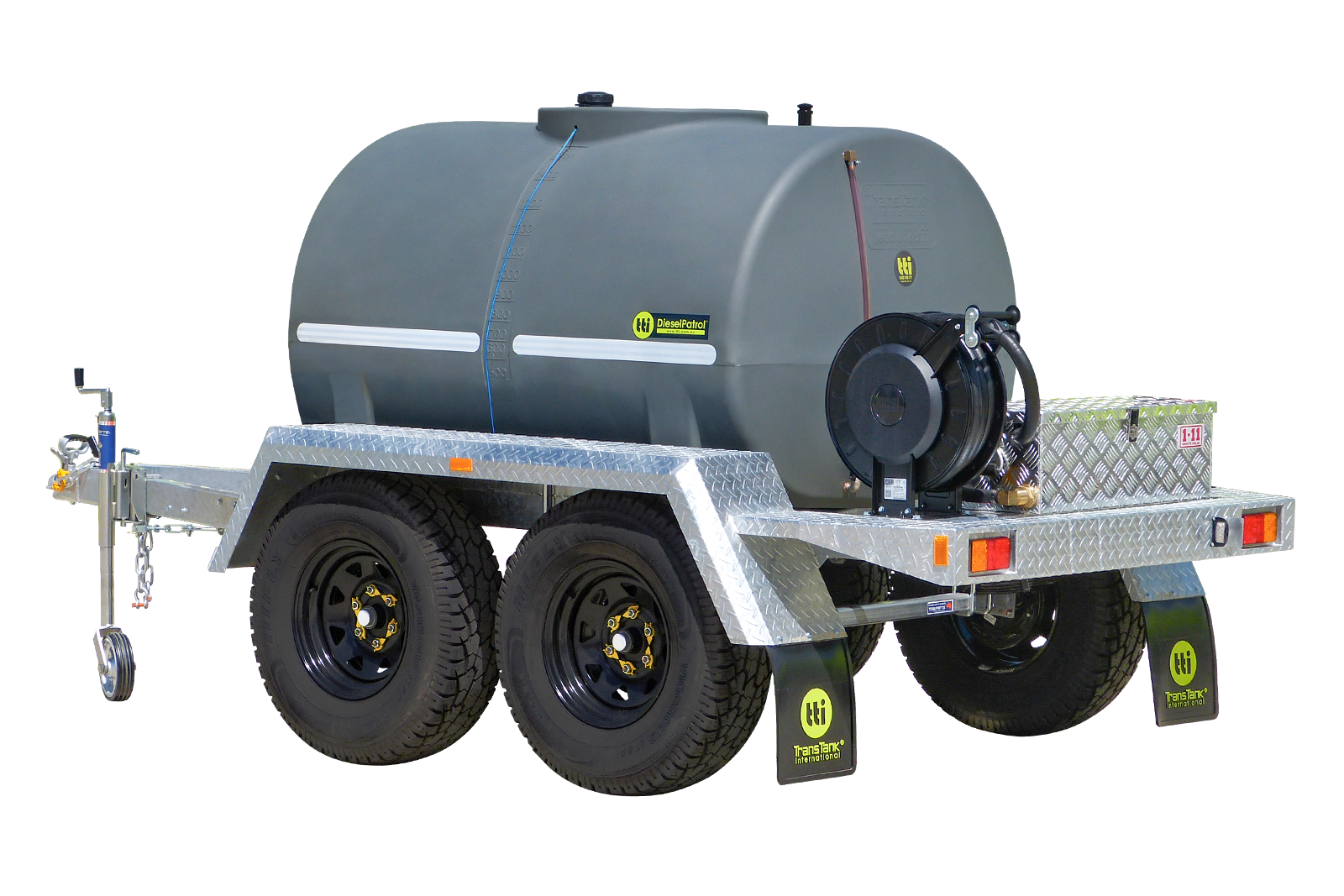

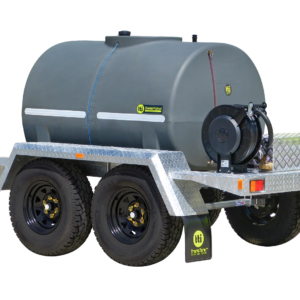

1500L DieselPatrol15™ Diesel Fuel Trailer (Dual Axle)
1500L DieselPatrol15™ (Dual Axle) *Pricing displayed is the from price. Cost may vary due to optional inclusions.
1800 816 277
Contact our team to find out:
- If this product is right for you
- Info and pricing on options & accessories
- Stock availability & delivery timeframe
- More about our nation-wide subsidised freight
- Heavy-duty, fully-drainable, UV Stabilised poly tank with 25-year warranty
- Built to high-level ADR requirements – manufactured from specially formulated diesel-grade polyethylene, complying with Australian Standards AS1940-2004 and AS2809.2-2008 for the safe transportation of flammable liquids and dangerous goods by road.
- Strong heavy-duty Hot-dipped galvanised chassis with 50mm tow hitch
- 60L/min 12v Piusi pump mounted in lockable toolbox
- LiquidLocker™ baffle system fitted
- 65mm 4T-rated solid galvanised axles with 15″ Landcruiser wheels which provide high ground clearance and manoeuvrability with wheel nut indicators fitted
- Recessed LED combination tail lights & license plate light
- Large, 455mm lid opening with breather and filler cap
- 10m retractable reel with anti-kink 25mm hose & 1″ Nozzle
- Fitted with a 4-digit mechanical flow meter for accurate fuel measurement
- Cartridge filter fitted for pump protection and clean fuel delivery
- 2″ Lockable filling point
- Puncture resistant 6 ply radial tyres, helping heavy load capability
- Heavy duty jockey wheel and chequer plate mudguards
- ROVER Vehicle Type Approval – Certified & Compliant
- Hydraulic Override Braked (On-Road/Registrable) – On Farm (Unbraked) option available
| UnBraked | Braked | |
| Weight: | 790kg | 800kg |
| Length: | 5000mm | 5000mm |
| Width: | 2150mm | 2150mm |
| Height: | 1600mm | 1600mm |
Features
To reduce surge and increase stability
High flow 60L/min 12v Pump Mounted in Lockable Toolbox
(Optional Reel Pictured)
For maximum protection for tough, long term durable performance
Provide high ground clearance and excellent maneuverability & wheel nut indicators fitted
Recessed LED Combination Tail Lights & License Plate Light
For smooth towing on both the highway and rough terrain
Complete with breather & filler cap for easy access for cleaning if required
“This [unit] has now pumped out 16,000L without an issue – good quality retractable hose, right down to good quality nozzles which pump out 85L/min …. Hasn’t had one hiccup – been extremely reliable. I fully recommend TTi, they produce a good quality product! “
Dean, Ho’s Hire – DieselPatrol™
