- Exceptionally smooth towing with excellent weight distribution
- Heavy-duty poly tank fitted with LiquidLocker™ baffle system
- 25-year warranty
- Manufactured from specially formulated diesel-grade polyethylene, our diesel tanks comply with Australian Standards AS1940-2004 and AS2809.2-2008 for the safe transportation of flammable liquids and dangerous goods by road.
- Built to high level ADR requirements, with heavy duty steel hot-dipped galvanised chassis for maximum protection for tough, long term durable performance
- Large lid opening with breather and filler cap
- 60L/min 12v Piusi pump mounted in lockable toolbox
- 50mm 2T-rated galvanised axles with 14″ wheels
- 6m of ¾” delivery hose
- ¾” auto shut off nozzle
- 50mm tow hitch
- Heavy duty chequer plate mudguards
- LED combination tail & number plate lights
- ROVER Vehicle Type Approval – Certified & Compliant
- Hydraulic Override Braked (On-Road/Registrable) – On Farm (Unbraked) option available
| UnBraked | Braked | |
| Weight: | 350kg | 380kg |
| Length: | 3558mm | 3558mm |
| Width: | 1760mm | 1760mm |
| Height: | 1441mm | 1441mm |

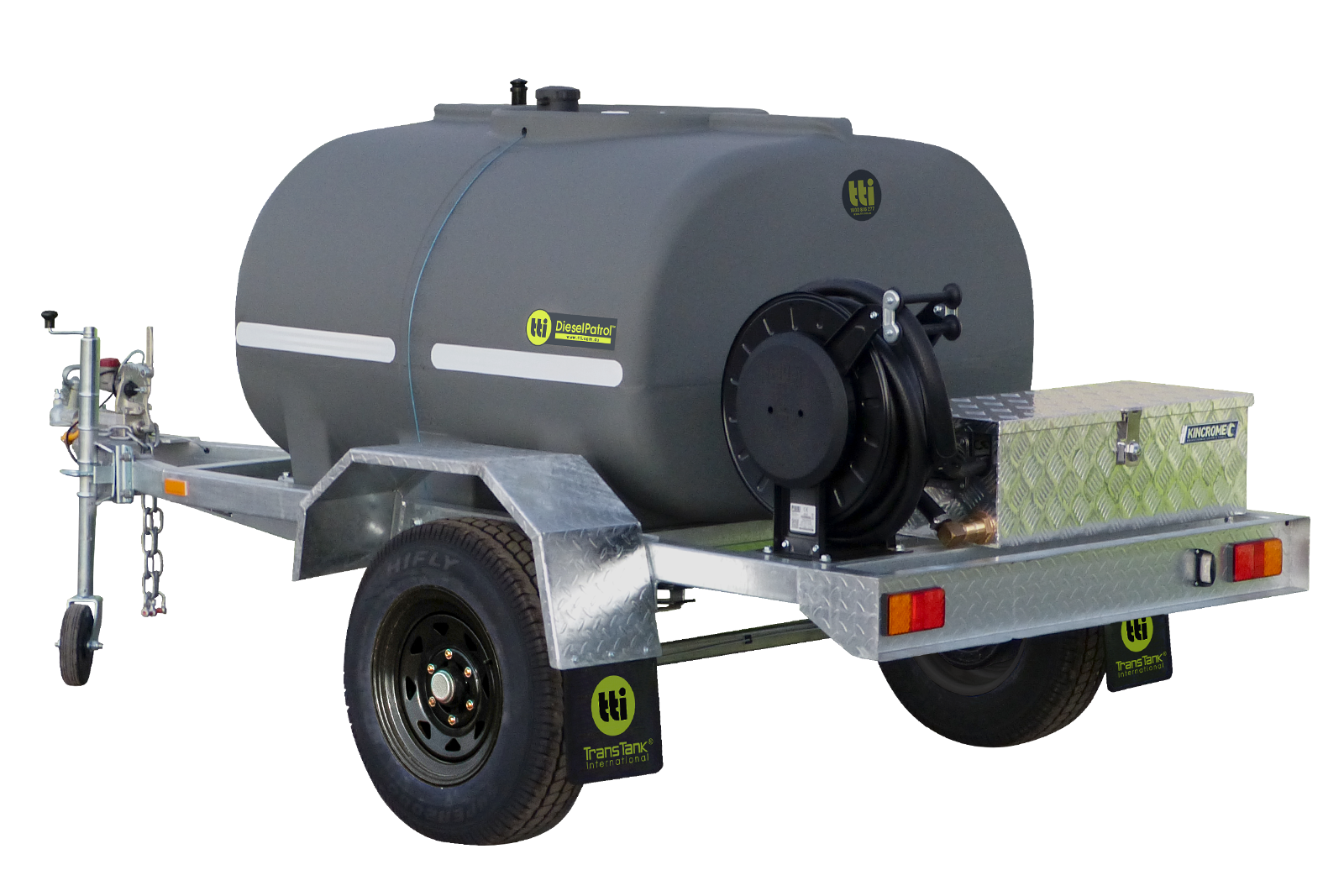

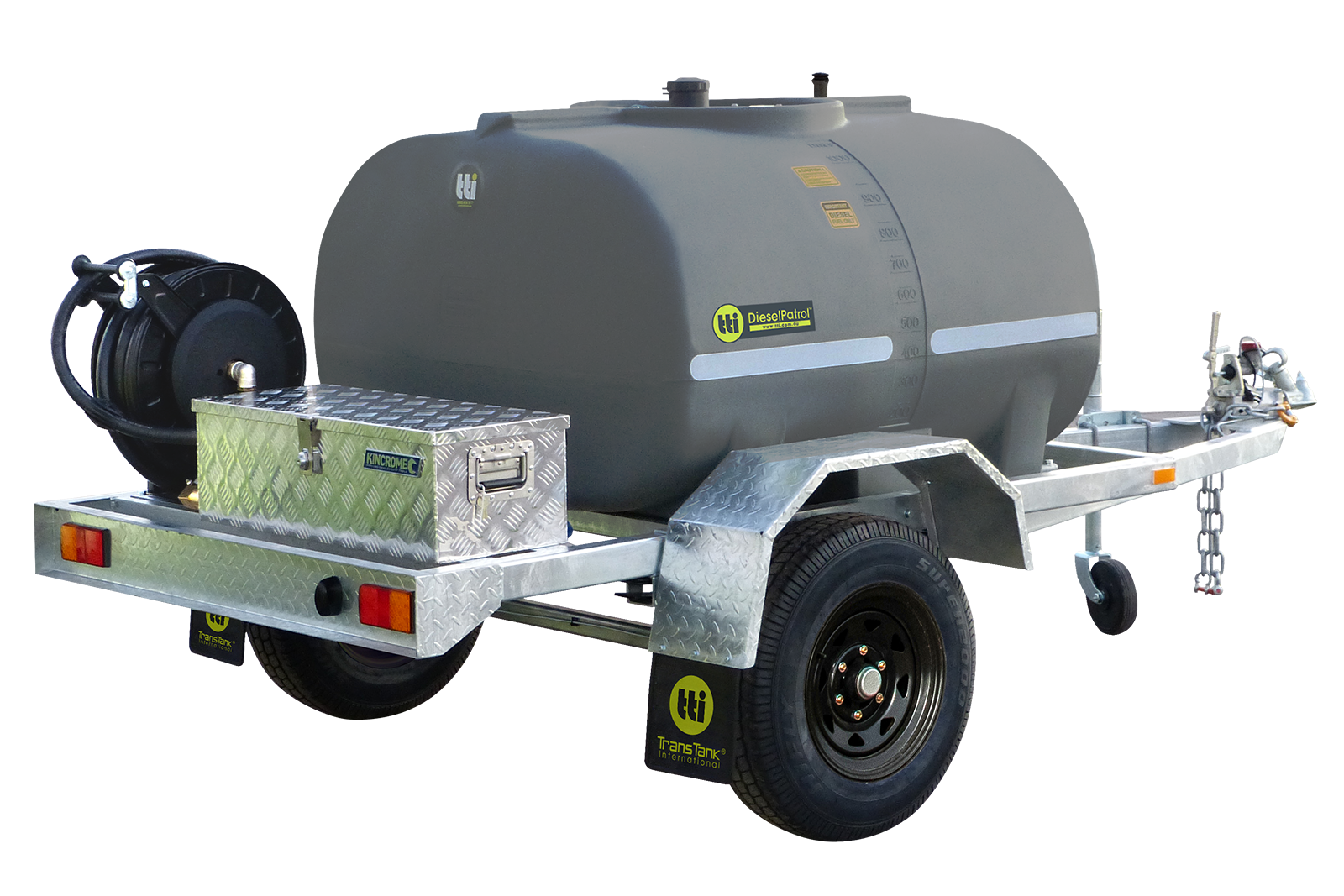

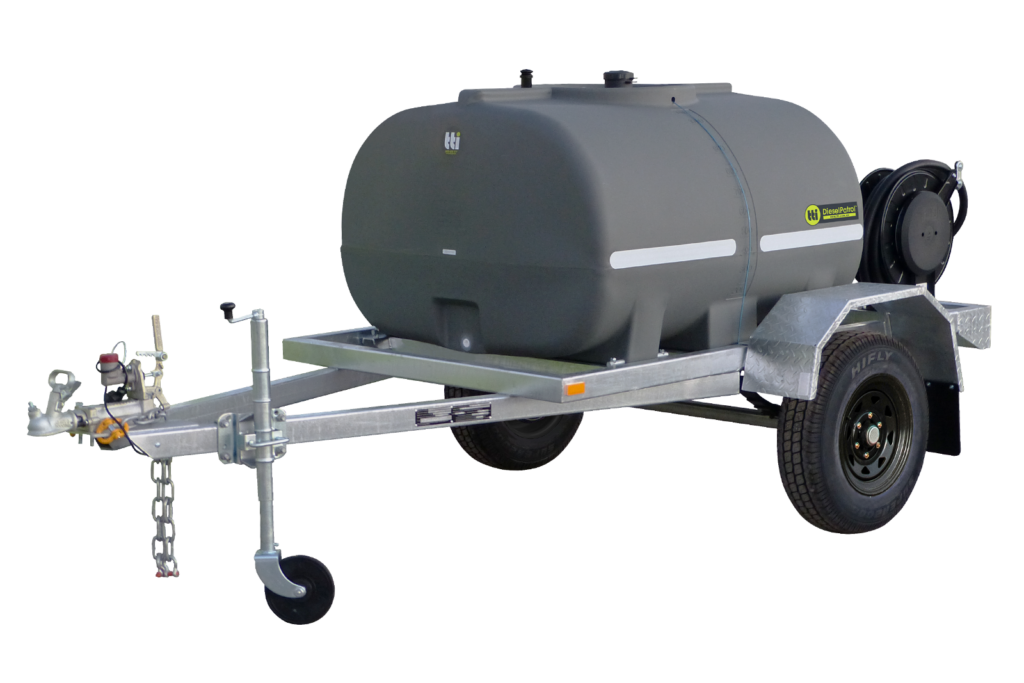

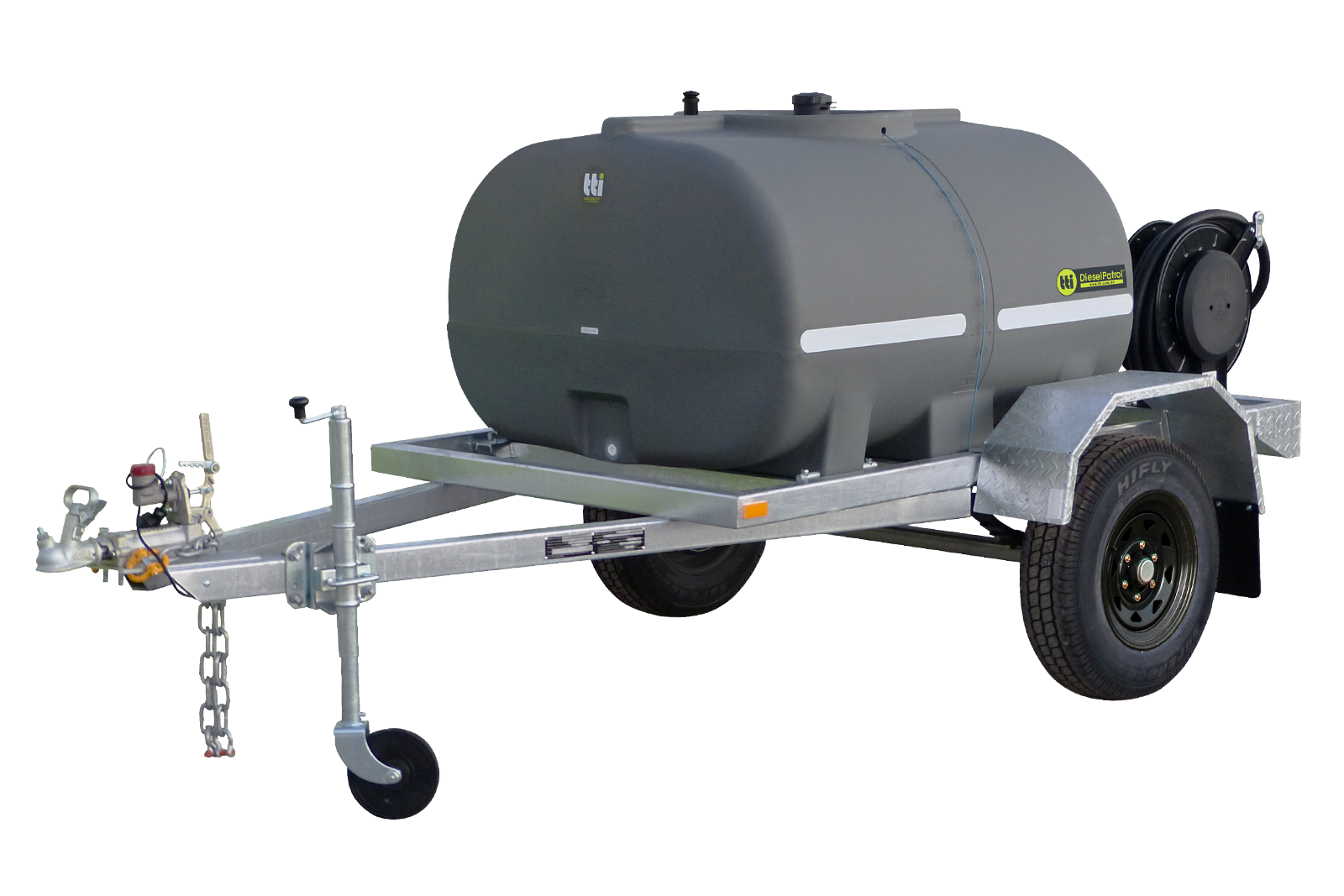

DieselPatrol14™ Refueling Trailer
1000L DieselPatrol14™ Diesel Fuel Trailer
1000L DieselPatrol14™
PRICING DISPLAYED IS THE FROM PRICE. COST MAY VARY DUE TO OPTIONAL INCLUSIONS
1800 816 277
Contact our team to find out:
- If this product is right for you
- Info and pricing on options & accessories
- Stock availability & delivery timeframe
- More about our nation-wide subsidised freight
- Exceptionally smooth towing with excellent weight distribution
- Heavy-duty poly tank fitted with LiquidLocker™ baffle system
- 25-year warranty
- Manufactured from specially formulated diesel-grade polyethylene, our diesel tanks comply with Australian Standards AS1940-2004 and AS2809.2-2008 for the safe transportation of flammable liquids and dangerous goods by road.
- Built to high level ADR requirements, with heavy duty steel hot-dipped galvanised chassis for maximum protection for tough, long term durable performance
- Large lid opening with breather and filler cap
- 60L/min 12v Piusi pump mounted in lockable toolbox
- 50mm 2T-rated galvanised axles with 14″ wheels
- 6m of ¾” delivery hose
- ¾” auto shut off nozzle
- 50mm tow hitch
- Heavy duty chequer plate mudguards
- LED combination tail & number plate lights
- ROVER Vehicle Type Approval – Certified & Compliant
- Hydraulic Override Braked (On-Road/Registrable) – On Farm (Unbraked) option available
| UnBraked | Braked | |
| Weight: | 350kg | 380kg |
| Length: | 3558mm | 3558mm |
| Width: | 1760mm | 1760mm |
| Height: | 1441mm | 1441mm |
Features
To reduce surge and increase stability
For maximum protection and tough, long term durable performance

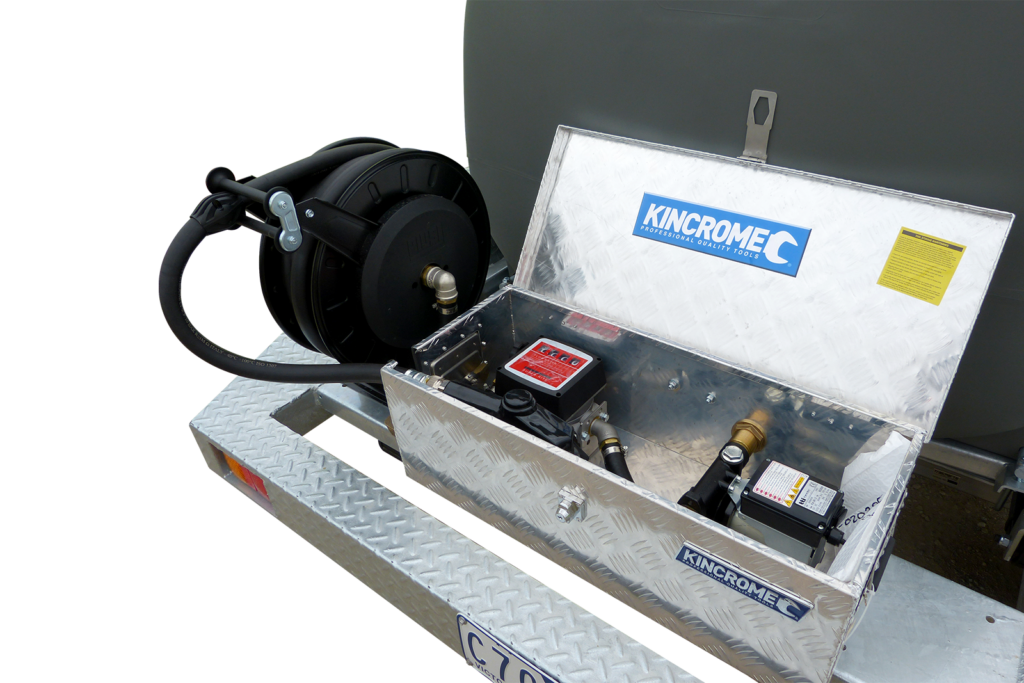

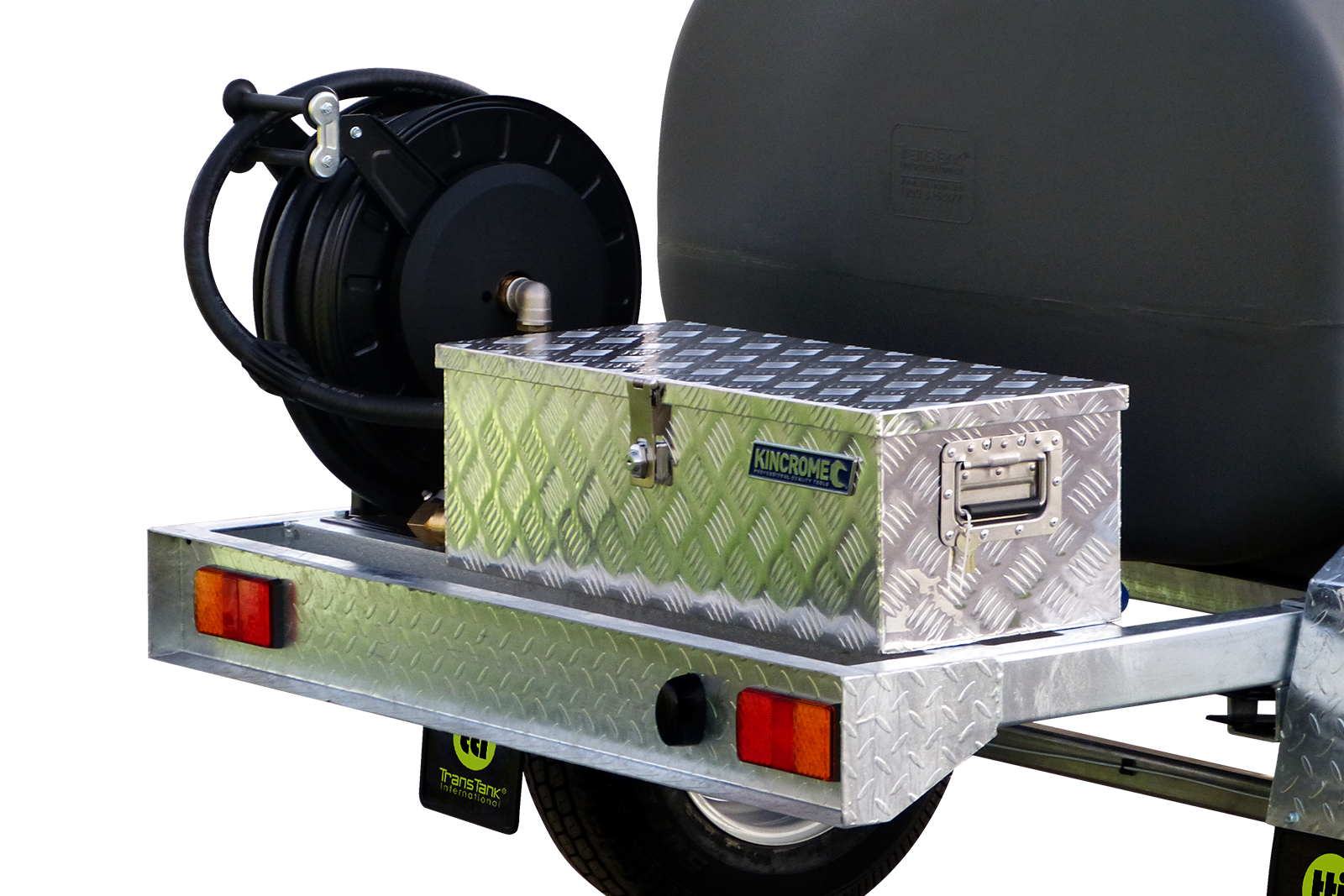

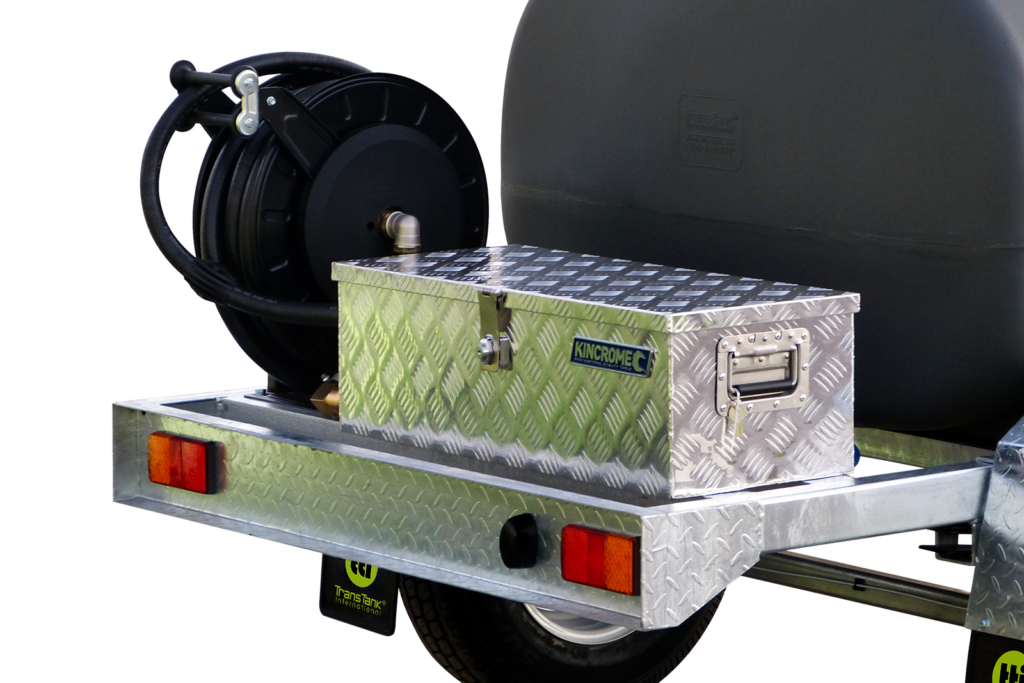

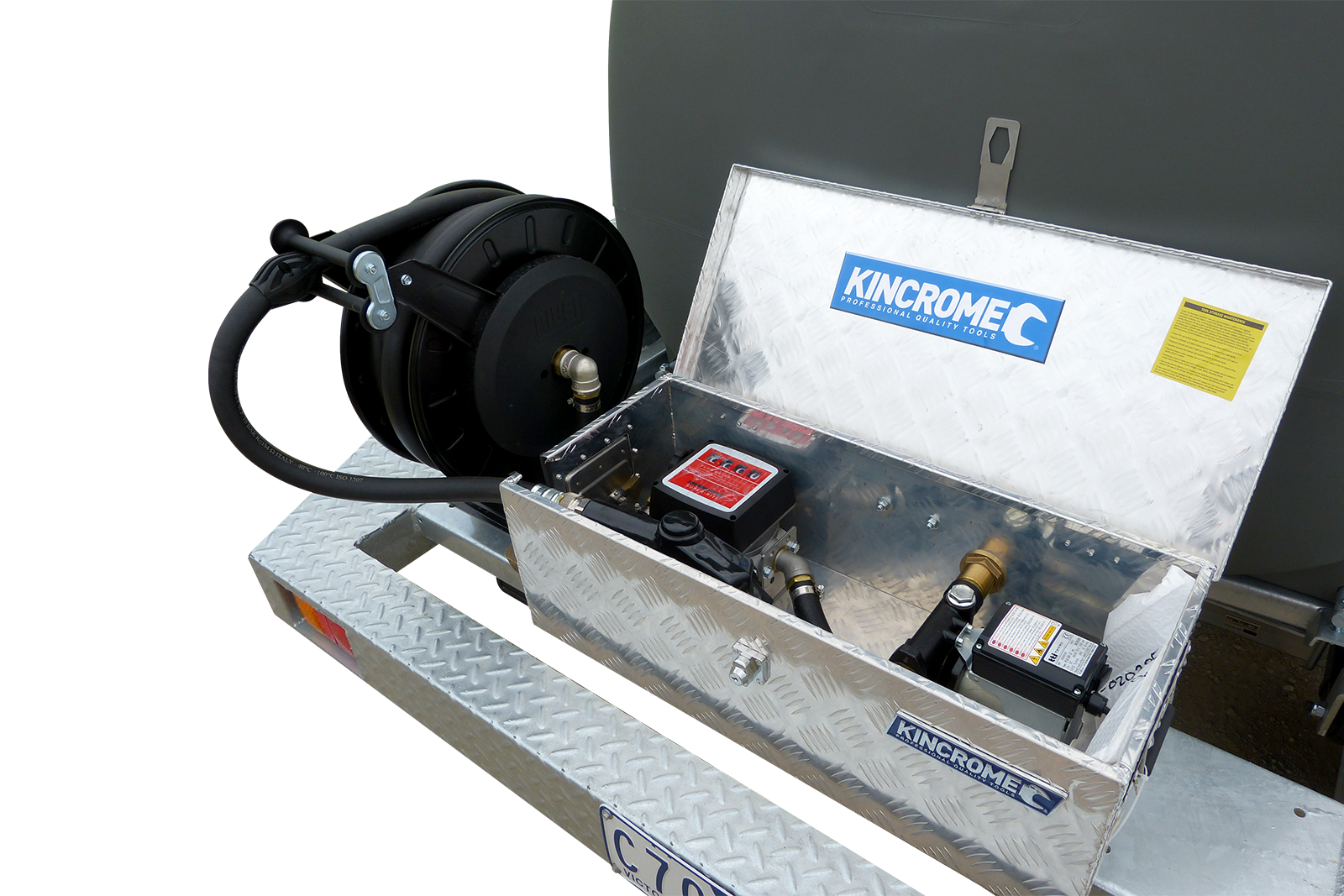

Mounted in Lockable Toolbox
Recessed LED Combination Tail Lights & License Plate Light
Complete with breather & filler cap for easy access for cleaning if required

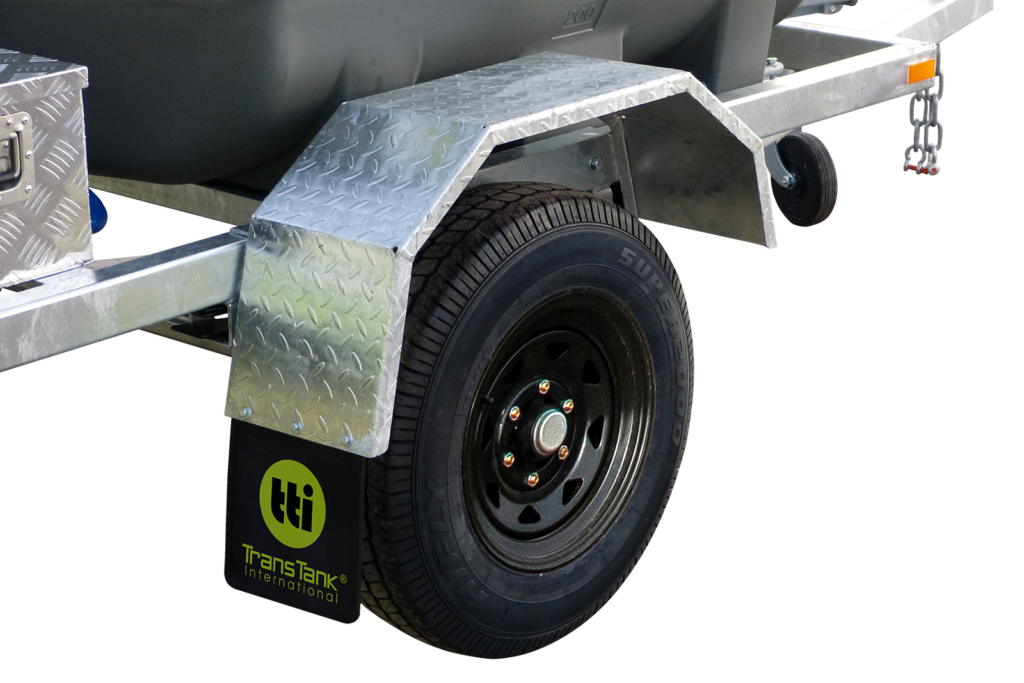

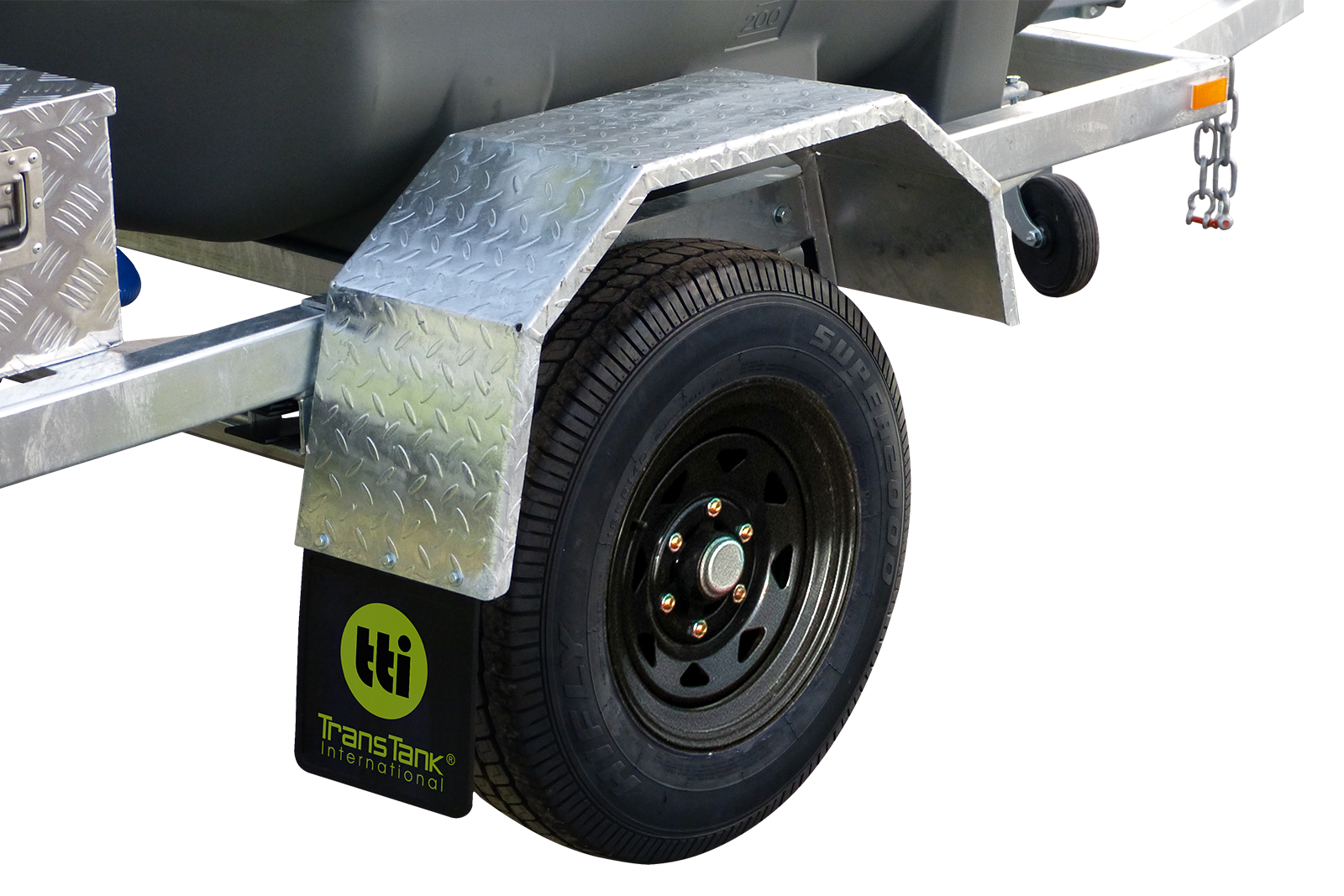

For strength, maximum ground clearance, and excellent maneuverability
(Optional 10m Reel Pictured)
For smooth towing on both the highway and rough terrain
“This [unit] has now pumped out 16,000L without an issue – good quality retractable hose, right down to good quality nozzles which pump out 85L/min …. Hasn’t had one hiccup – been extremely reliable. I fully recommend TTi, they produce a good quality product! “
Dean, Ho’s Hire – DieselPatrol™
FAQs
What is the best way to maintain the DieselPatrol14™ Diesel Fuel Trailer?
Inspect the pump and hose often and look for wear. Keep the tank free of contaminants. Check the chassis for corrosion and damage. Clean the unit and store it in a sheltered area to protect it.
Can I use the DieselPatrol14™ for transporting other types of liquids?
The trailer suits diesel only. Other liquids can affect tank integrity and safety. Follow the product guidelines to ensure correct use.
How should I store the DieselPatrol14™ when not in use?
Store the trailer in a cool and dry place. Protect it from harsh weather and direct sun. Keep the tank empty or store diesel at the correct level. Lock the unit to prevent unauthorised access.
Is the pump suitable for other fuel types?
The pump suits diesel. Other fuels can damage components and reduce safety. Use diesel only for proper performance.
What safety features should I be aware of when using the DieselPatrol14™?
The LiquidLocker™ baffle system reduces fuel surge and supports safer transport. A lockable toolbox protects the pump. Work in well-ventilated areas and follow safe refuelling practices.
Is the DieselPatrol14 1,000 litre refuelling trailer road registrable?
Yes. It has ROVER Vehicle Type Approval and hydraulic override brakes for on road registration, with LED combination tail and number plate lights. An on farm unbraked option is available.
What pump, hose and nozzle does the DieselPatrol14 1,000 litre have?
A 60L/min 12v Piusi pump mounted in a lockable toolbox, with 6m of ¾ inch delivery hose and a ¾ inch auto shut off nozzle.
What axles and wheels does the DieselPatrol14 1,000 litre have?
It has 50mm 2T rated galvanised axles with 14 inch wheels and a 50mm tow hitch. Heavy duty chequer plate mudguards are fitted.
How is the DieselPatrol14 1,000 litre filled?
It has a large lid opening with breather and filler cap. The poly tank has a 25 year warranty and the LiquidLocker baffle system fitted.
