- Strong 4m hot-dip galvanised steel boom
- Spring loaded heavy-duty breakaway
- Nozzles mounted behind boom to protect from damage
- Air induction spray tips for increased spraying accuracy
- Very easy to fold/unfold for spraying and traveling positions
- Spring-loaded breakaway with nozzle protection
- Non-drip nozzle bodies with Teejet AIXR Air Induction spray tips
- Easy to mount onto your existing sprayer!
- Ideal for firebreaks, access tracks, and fence lines
| Weight: | |
| Length: | 3574mm |
| Width: | 240mm |
| Height: | 220mm |

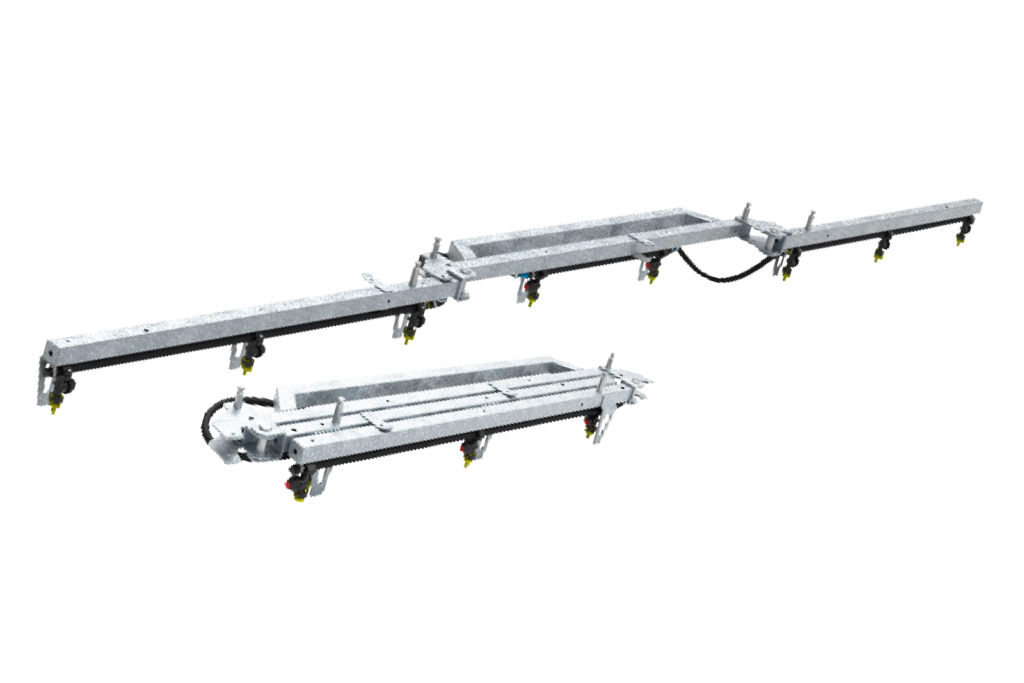

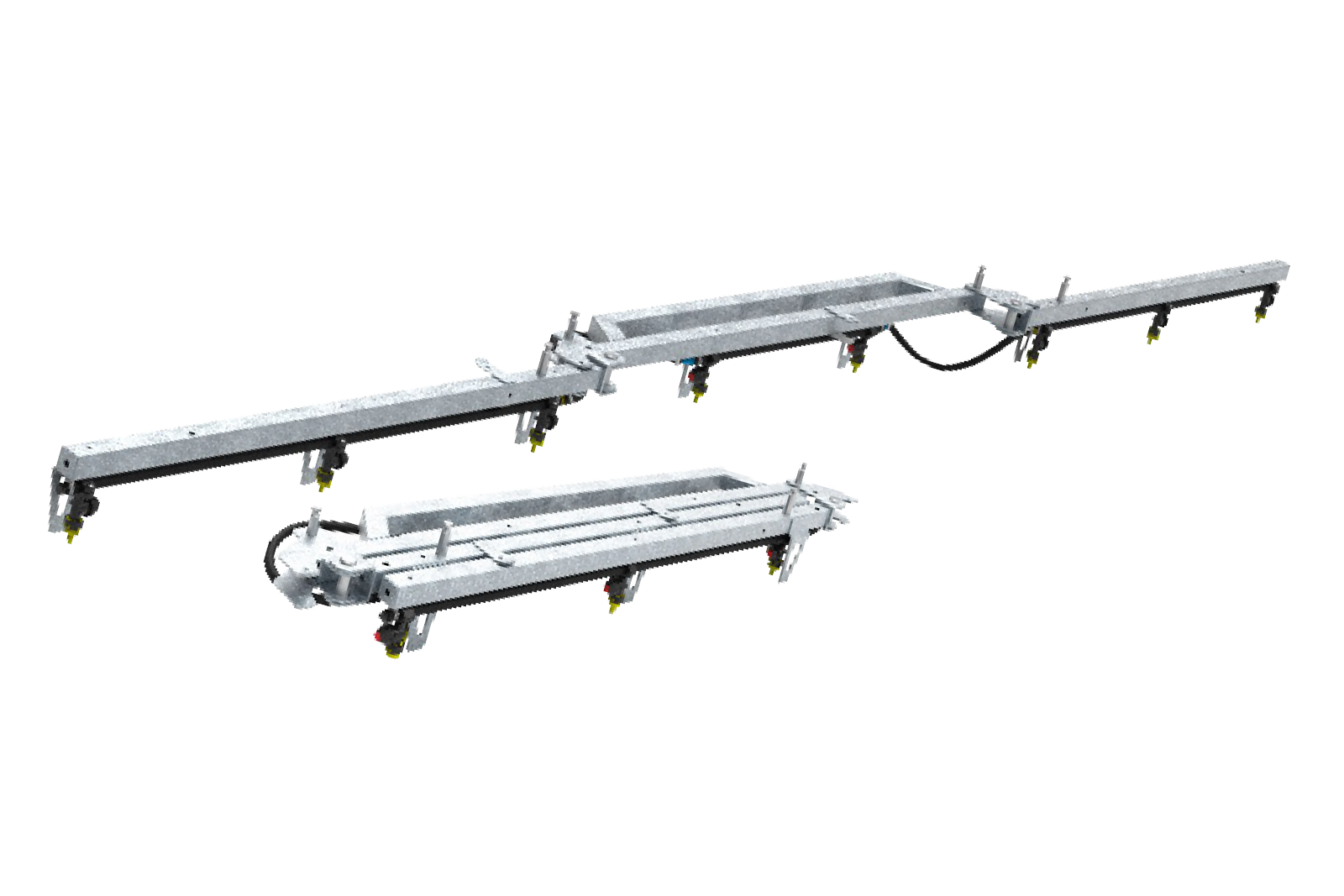

Compact 4m Spray Boom
ABM040PRICING DISPLAYED IS THE FROM PRICE. COST MAY VARY DUE TO OPTIONAL INCLUSIONS
TTi’s 4m galvanised steel boom is a popular choice for a range of boom spraying needs. The boom has inbuilt nozzle protection and comes spring loaded for heavy-duty breakaway, preventing damage to your spray gear and your property. We’ve designed this boom to be easily fitted to your existing sprayer, as well as adjustable. The flat-fold design keeps the centre of gravity low, minimising stress on both the boom and the sprayer. This boom comes standard with quality TeeJet air induction nozzles, providing even and reliable spraying. Looking for a quality boom to add to your sprayer? You won’t find a better solution than TTi’s Compact Spray Boom.
Contact our team to find out:
- If this product is right for you
- Info and pricing on options & accessories
- Stock availability & delivery timeframe
- More about our nation-wide subsidised freight
- Strong 4m hot-dip galvanised steel boom
- Spring loaded heavy-duty breakaway
- Nozzles mounted behind boom to protect from damage
- Air induction spray tips for increased spraying accuracy
- Very easy to fold/unfold for spraying and traveling positions
- Spring-loaded breakaway with nozzle protection
- Non-drip nozzle bodies with Teejet AIXR Air Induction spray tips
- Easy to mount onto your existing sprayer!
- Ideal for firebreaks, access tracks, and fence lines
| Weight: | |
| Length: | 3574mm |
| Width: | 240mm |
| Height: | 220mm |
FAQs
What types of liquids can be used with the Compact 4m Spray Boom?
The Compact 4m Spray Boom is suitable for a wide range of agricultural liquids, including herbicides, pesticides, and liquid fertilisers. Built tough for Australian conditions, its chemical-resistant components ensure long-term reliability. To confirm compatibility with specific liquids, contact TTi for a Liquid Compatibility Chart or refer to the chemical’s Safety Data Sheet (SDS).
Can the Compact 4m Spray Boom be used on uneven terrain?
Yes. The Compact 4m Spray Boom is designed to perform effectively on uneven or undulating terrain. For consistent spray coverage, maintain a steady boom height above the ground and adjust your driving speed to match surface variations. Using a height control system or manual adjustment can further improve accuracy and uniformity.
What is the recommended operating pressure for the spray tips?
The TeeJet AIXR Air Induction spray tips perform optimally at operating pressures between 200 and 400 kPa. Always confirm the ideal pressure for your specific nozzle model to achieve the correct droplet size, spray pattern, and application rate for your intended use.
Is it necessary to use a specific type of sprayer to mount the Compact 4m Spray Boom?
The Compact 4m Spray Boom is designed for simple mounting to most standard TTi and compatible sprayers. Ensure that your sprayer’s frame or mounting system has suitable connection points and that the boom is securely fastened before operation. Always follow TTi’s installation recommendations to ensure safe and stable performance.
What maintenance is required to keep the Compact 4m Spray Boom in good condition?
After each use, flush the system thoroughly with clean water to remove any chemical residues. Inspect and clean the nozzles regularly to prevent blockages, and check all fittings and hoses for wear or leaks. Store the boom in a clean, dry area out of direct sunlight to protect against UV exposure and extend its lifespan.
