- Use with ATV, 3PL or ute sprayers
- 7m Spray Width
- Can be used as 180˚ swath or 90˚ swath by swapping nozzle plates
- On / off ball valve tap

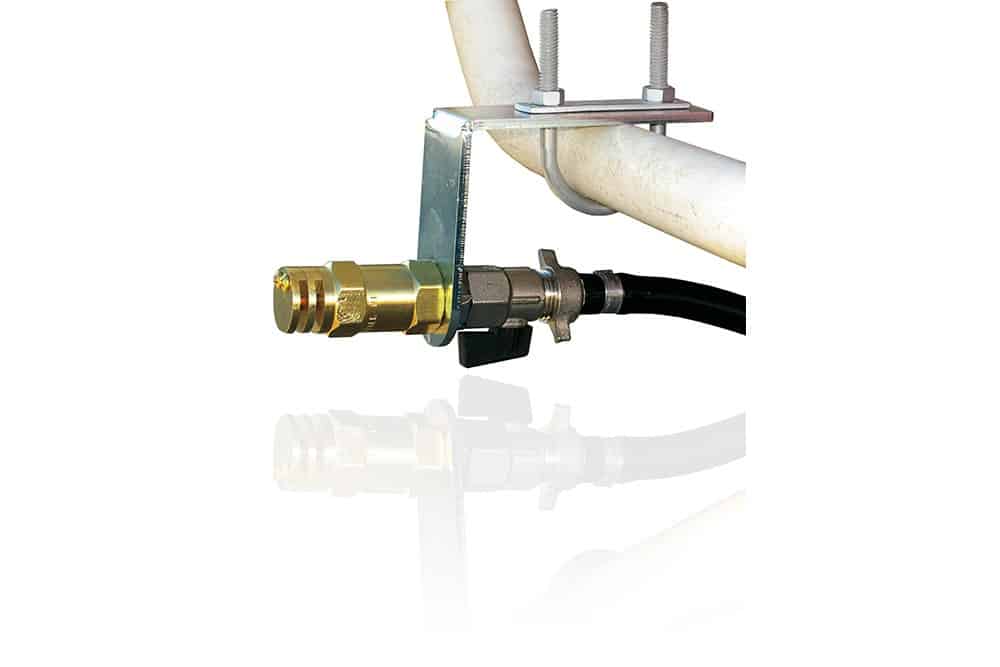

- Steel mounting bracket
- 10mm hose tail supplied
- Ideal for rough country spraying & locust control
- Optimum mounting height between 0.5m & 1.0m above ground
- Minimum pump capacity 7L/min
| Weight: | |
| Length: | 50mm |
| Width: | 69mm |
| Height: | 193mm |

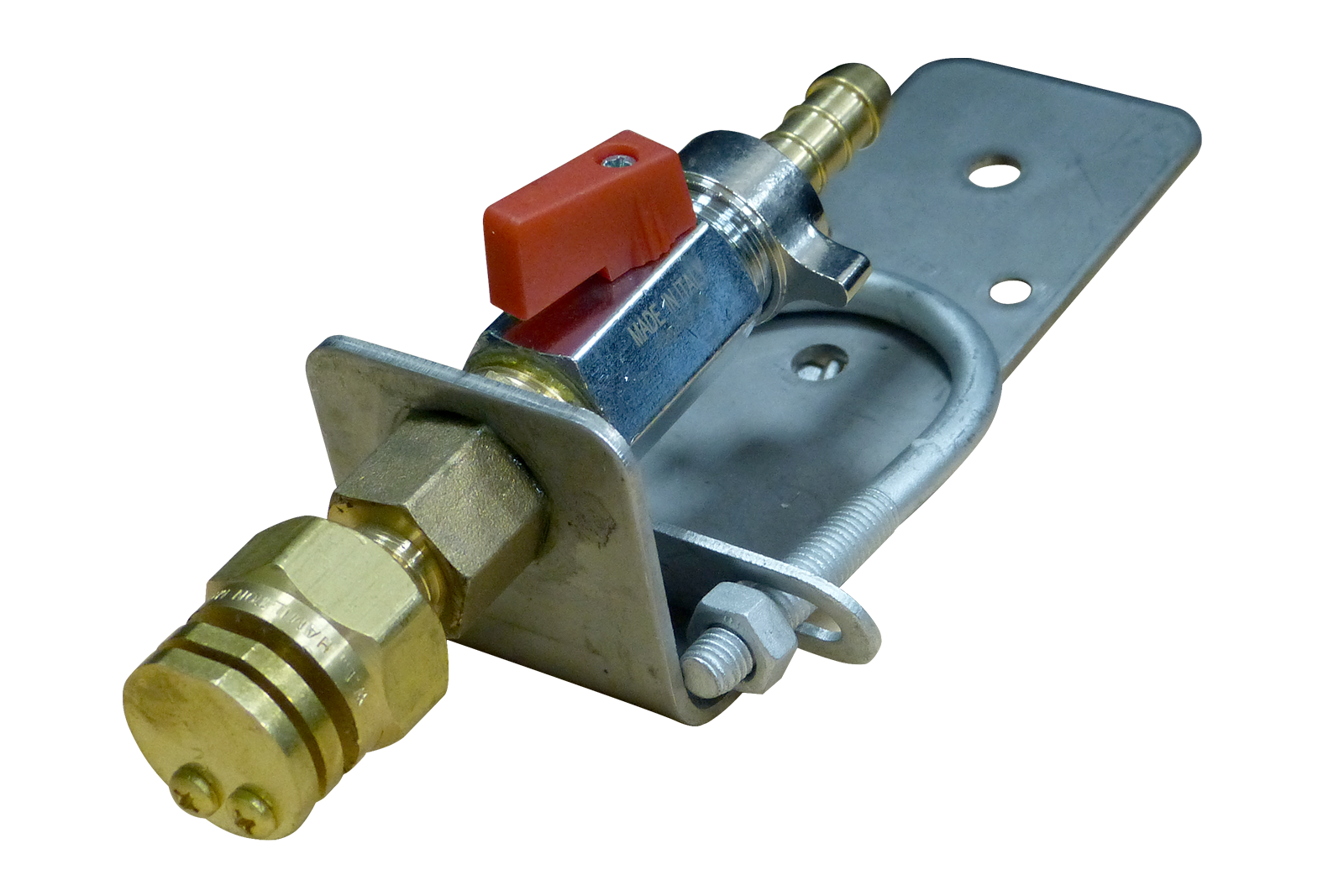

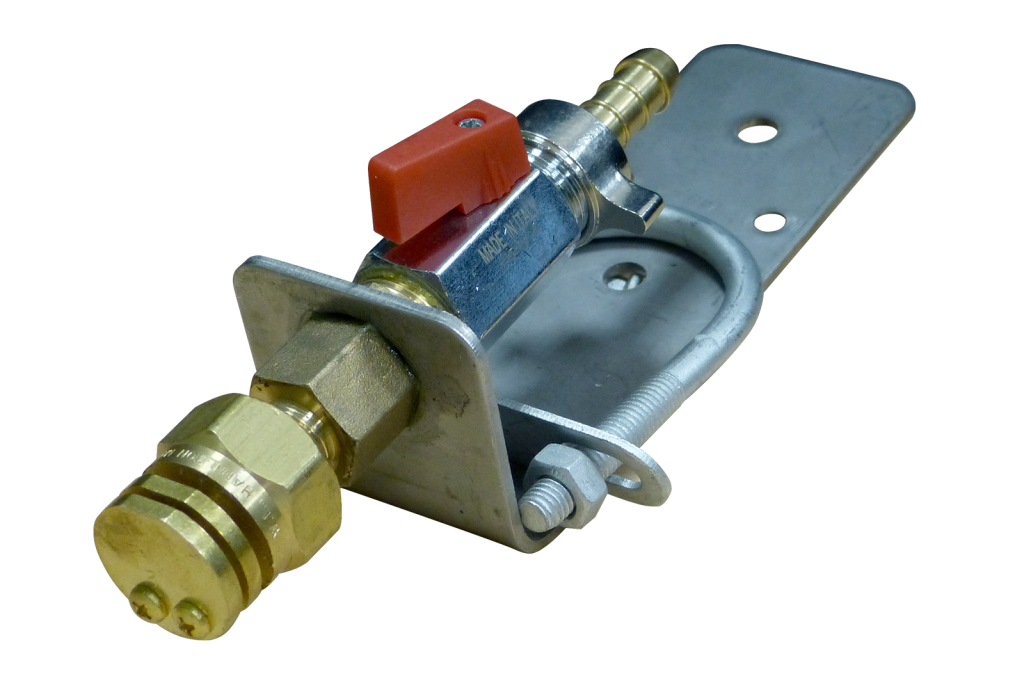

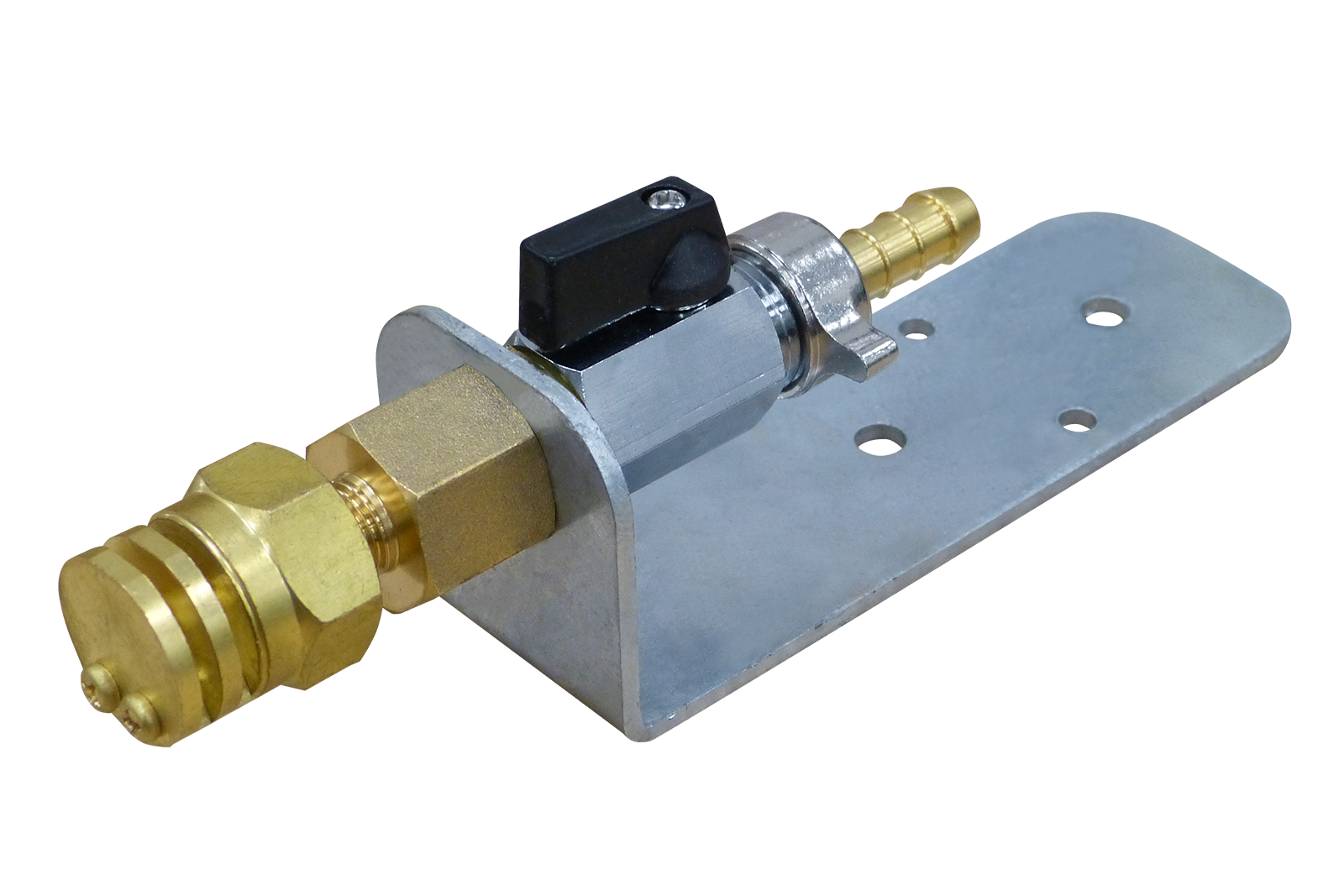

Boomless Nozzle Kit – 7m Spray Width
ABK02PRICING DISPLAYED IS THE FROM PRICE. COST MAY VARY DUE TO OPTIONAL INCLUSIONS

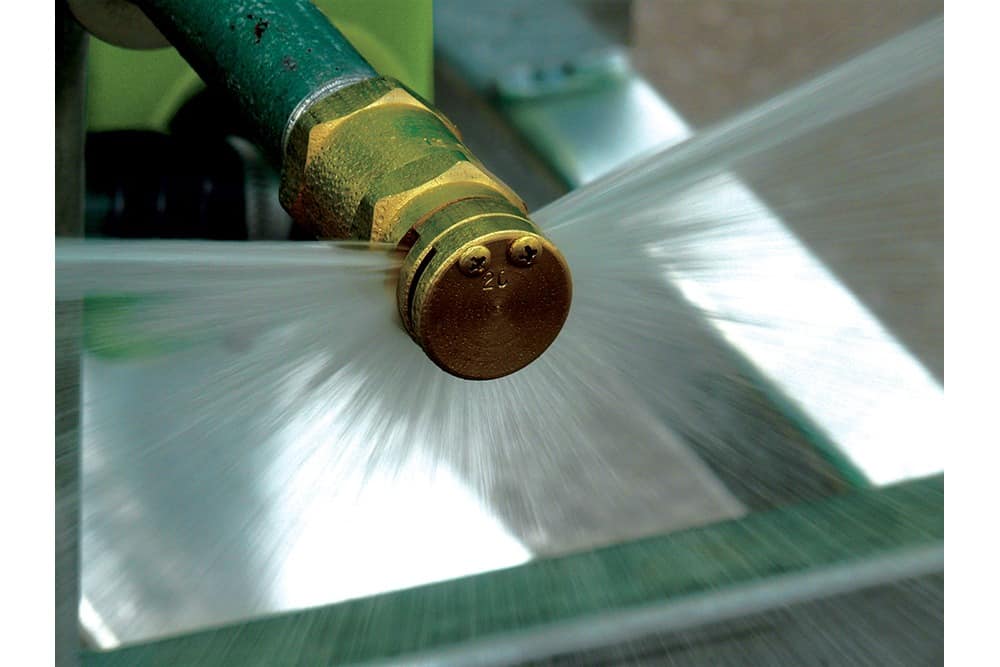

TTi’s boomless nozzle kits are perfect for rough terrain and hard-to-reach areas. They allow you to target those areas that standard booms cant get to, whether it be from trees, fences, pylons or uneven ground. The boomless range is well designed to give a consistent and even spray pattern. The boomless sprayer comes with interchangeable plates. With a quick and easy plate change, you can turn your sprayer from a 180-degree swath to a 90-degree swath to give the user greater control over their spraying and reduce chemical usage by not spraying areas unnecessarily.
Contact our team to find out:
- If this product is right for you
- Info and pricing on options & accessories
- Stock availability & delivery timeframe
- More about our nation-wide subsidised freight
- Use with ATV, 3PL or ute sprayers
- 7m Spray Width
- Can be used as 180˚ swath or 90˚ swath by swapping nozzle plates
- On / off ball valve tap
- Steel mounting bracket
- 10mm hose tail supplied
- Ideal for rough country spraying & locust control
- Optimum mounting height between 0.5m & 1.0m above ground
- Minimum pump capacity 7L/min
| Weight: | |
| Length: | 50mm |
| Width: | 69mm |
| Height: | 193mm |
FAQs
Can the Boomless Nozzle Kit be used for different types of sprayers?
Yes, the Boomless Nozzle Kit is compatible with a wide range of sprayers, including ATV, UTV, 3PL, and ute-mounted units. Its versatile design makes it suitable for various spraying applications across different vehicle types.
What are the advantages of using a boomless nozzle compared to a traditional boom system?
The Boomless Nozzle Kit provides greater flexibility and manoeuvrability, especially in rough or uneven terrain where a traditional boom may be difficult to use. It allows for wide spray coverage without the need for an extended boom structure, reducing the risk of damage from obstacles such as trees or fence posts.
What is the recommended method for adjusting the spray width?
Spray width can be easily adjusted by changing between the 180° and 90° nozzle plates supplied with the kit. Choose the 180° plate for maximum coverage or the 90° plate for more targeted applications, depending on your spraying requirements.
How should I maintain the Boomless Nozzle Kit for optimal performance?
Inspect the nozzles and fittings regularly for wear, blockages, or leaks. After each use, flush the system with clean water to remove chemical residues and prevent clogging. Store the kit in a clean, dry location to protect it from corrosion and UV exposure.
What is the impact of mounting height on spray performance?
For best results, mount the nozzles between 0.5 m and 1.0 m above ground level. Mounting outside this range may cause uneven spray distribution or reduced coverage, so it’s important to maintain the recommended height for consistent performance.
