- Use with ATV, 3PL or ute sprayers
- 16m Spray Width
- Can be used as 180˚ swath or 90˚ swath by swapping nozzle plates
- On / off ball valve tap

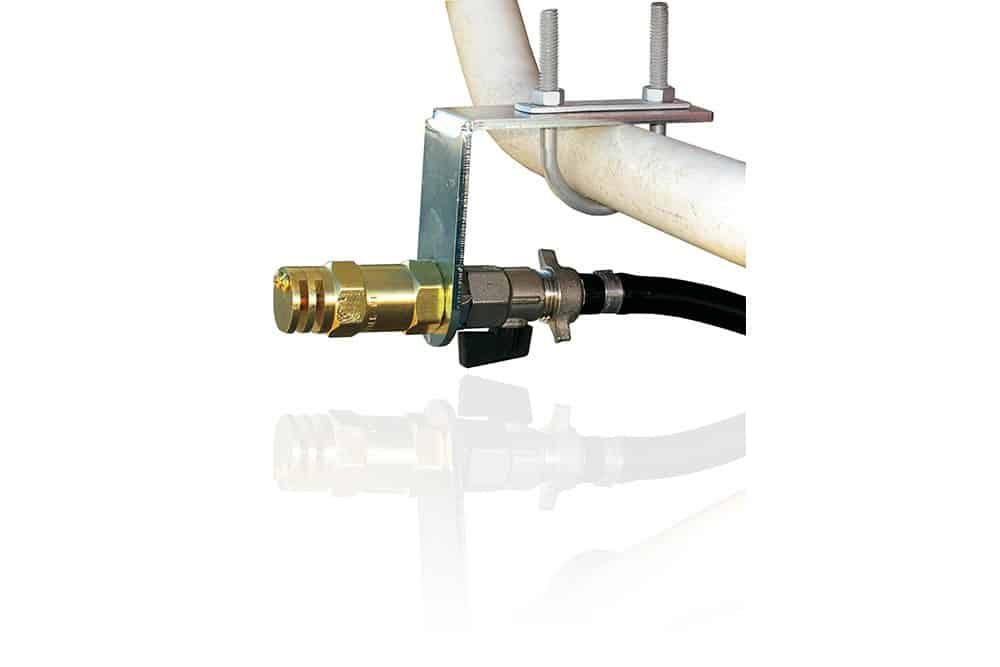

- Steel mounting bracket
- 10mm hose tail supplied
- Ideal for rough country spraying & locust control
- Optimum mounting height between 0.5m & 1.0m above ground
- Minimum pump capacity 20L/min
| Weight: | |
| Length: | 500mm |
| Width: | 69mm |
| Height: | 199mm |

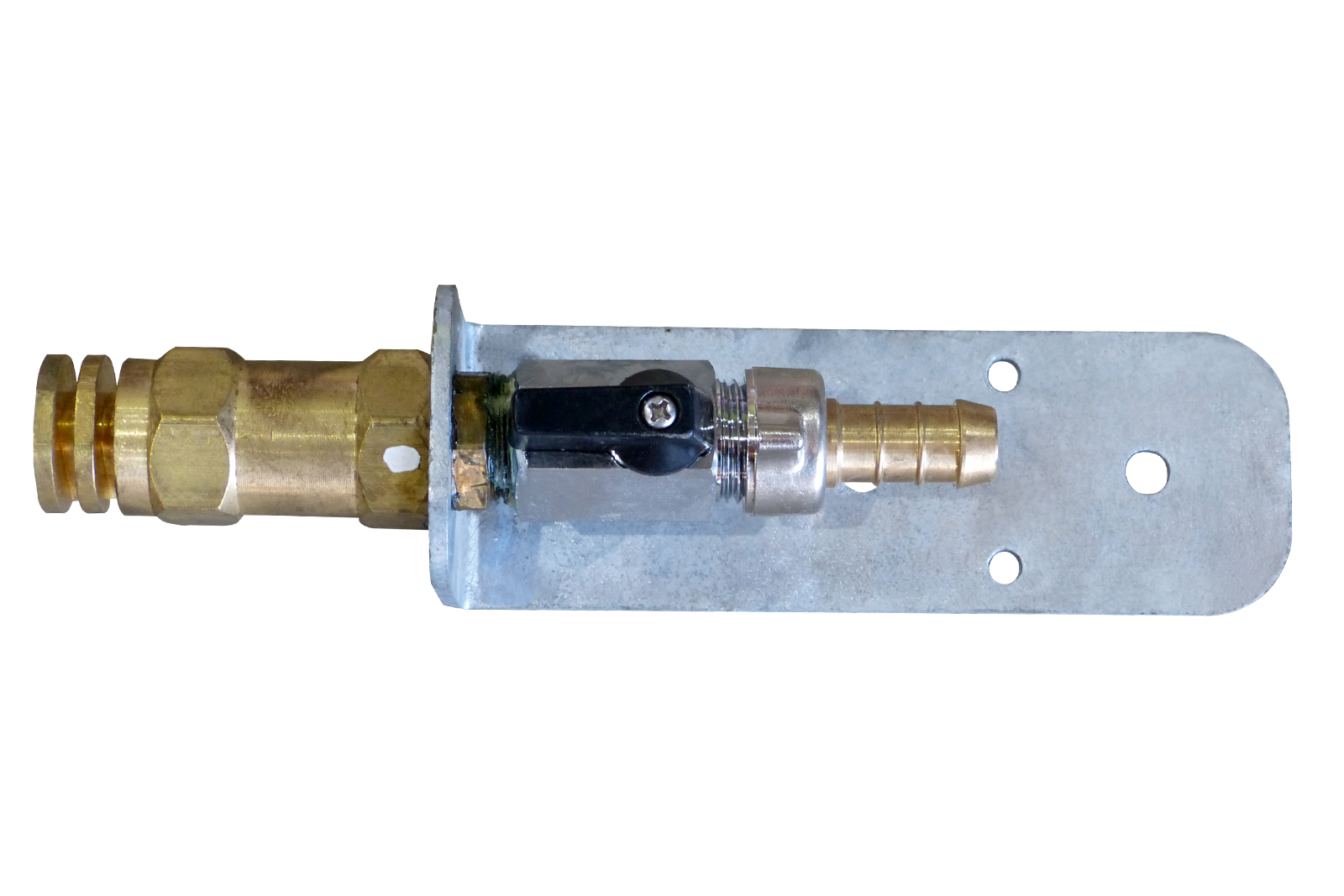

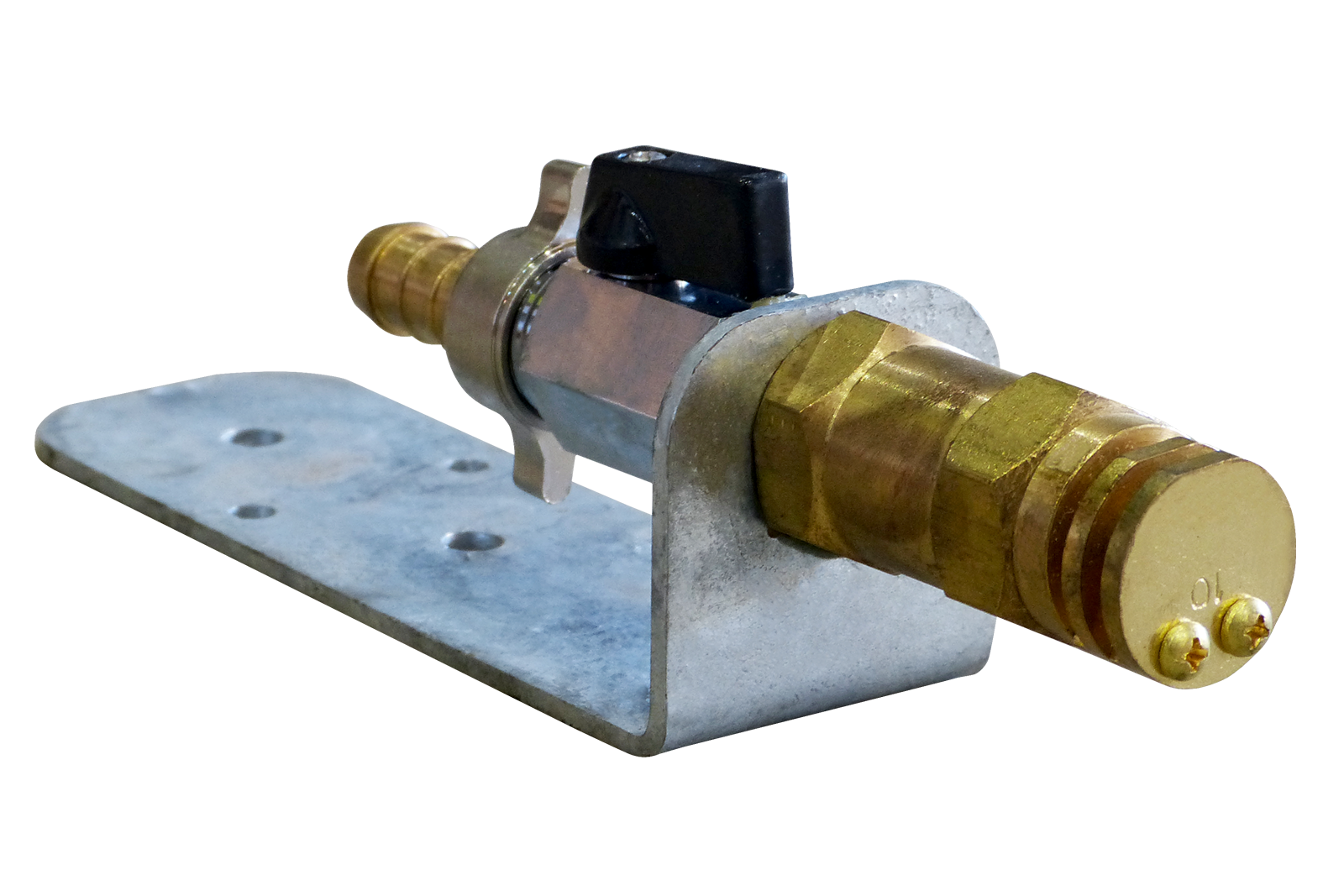

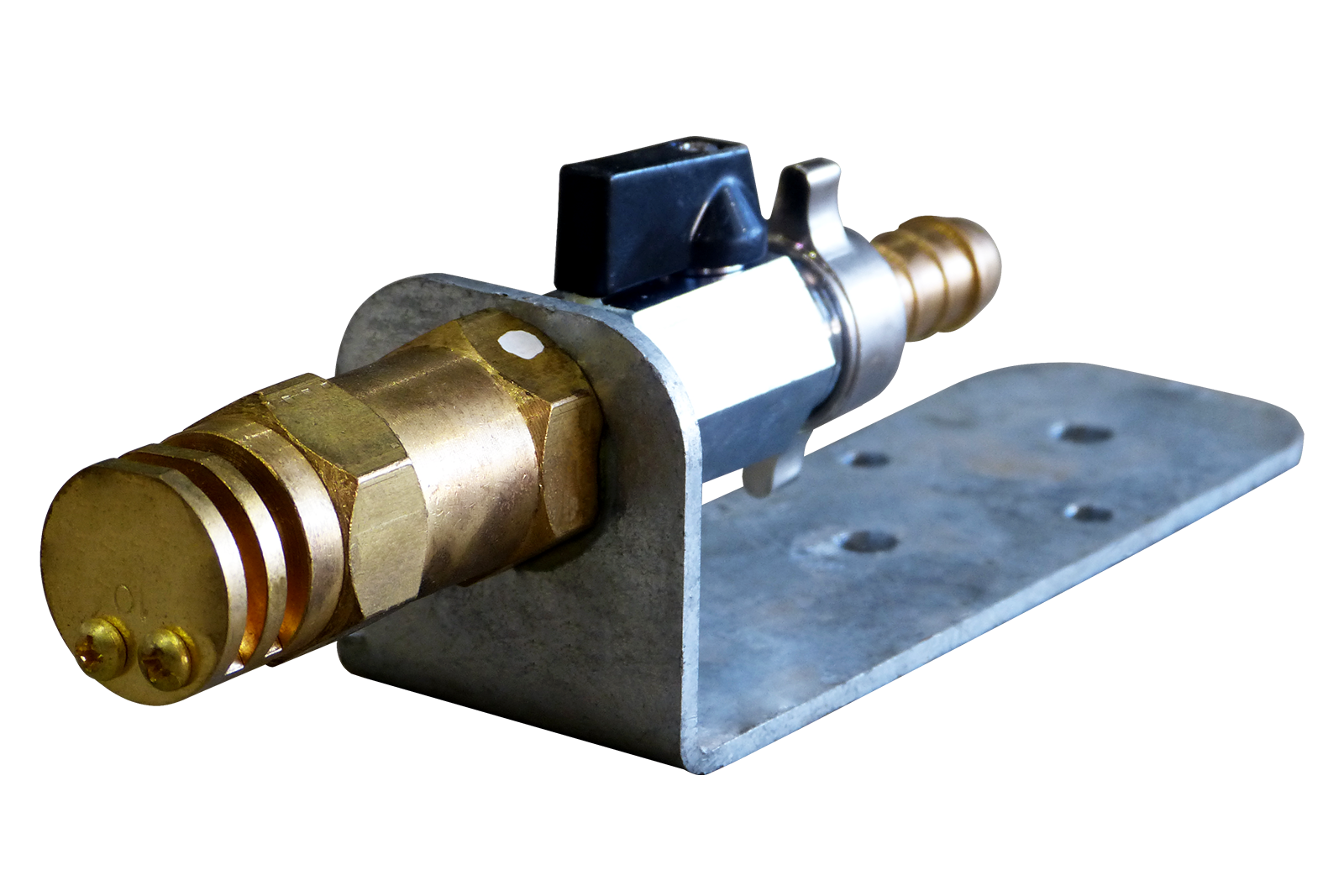

Boomless Nozzle Kit – 16m Spray Width
ABK10PRICING DISPLAYED IS THE FROM PRICE. COST MAY VARY DUE TO OPTIONAL INCLUSIONS
TTi’s boomless nozzle kits are perfect for rough terrain and hard-to-reach areas. This boomless spray nozzle setup allows you to target those areas that standard booms cant get to, whether it be from trees, fences, pylons or uneven ground. The boomless range is well designed to give a consistent and even spray pattern. The boomless sprayer comes with interchangeable plates. With a quick and easy plate change, you can turn your sprayer from a 180-degree swath to a 90-degree swath to give the user greater control over their spraying and reduce chemical usage by not spraying areas unnecessarily.
Contact our team to find out:
- If this product is right for you
- Info and pricing on options & accessories
- Stock availability & delivery timeframe
- More about our nation-wide subsidised freight
- Use with ATV, 3PL or ute sprayers
- 16m Spray Width
- Can be used as 180˚ swath or 90˚ swath by swapping nozzle plates
- On / off ball valve tap
- Steel mounting bracket
- 10mm hose tail supplied
- Ideal for rough country spraying & locust control
- Optimum mounting height between 0.5m & 1.0m above ground
- Minimum pump capacity 20L/min
| Weight: | |
| Length: | 500mm |
| Width: | 69mm |
| Height: | 199mm |
FAQs
What types of sprays can I achieve with the Boomless Nozzle Kit?
The Boomless Nozzle Kit delivers flexible spraying performance with two swath options — a 180° or 90° spray pattern, depending on the nozzle plate configuration. This boomless spray nozzle versatility allows you to achieve effective coverage for both targeted spot treatments and broad-area applications with ease.
What is the recommended mounting height for optimal performance?
For optimal results, mount the Boomless Nozzle Kit between 0.5m and 1.0m above the ground. This height provides excellent spray coverage while minimising drift and ensuring consistent application accuracy, even in uneven terrain when using a boomless spray nozzle setup.
How does the pump capacity affect the performance of the nozzle kit?
The Boomless Nozzle Kit requires a minimum pump capacity of 20L/min for proper operation. Pumps with lower flow rates may produce inconsistent spray patterns or reduced coverage. Always ensure your sprayer meets or exceeds this specification to achieve uniform results and efficient chemical distribution.
Can I use the Boomless Nozzle Kit for different types of liquid treatments?
Yes. The Boomless Nozzle Kit is suitable for spraying herbicides, pesticides, and liquid fertilisers. Built tough for Australian conditions, its components are designed to handle a wide range of agricultural liquids. This boomless spray nozzle system supports versatile field use. To confirm compatibility with specific chemicals, contact TTi for a Liquid Compatibility Chart and always follow safe handling and mixing practices.
What maintenance is required to keep the nozzle kit functioning properly?
After each use, flush the nozzles and lines thoroughly with clean water to prevent blockages and residue build-up. Inspect all fittings, hoses, and mounting hardware for signs of wear or leaks. Regular maintenance ensures consistent spray performance and extends the lifespan of your boomless spray nozzle equipment.
Are there any accessories that can enhance the functionality of the nozzle kit?
TTi offers a range of genuine accessories to enhance the Boomless Nozzle Kit, including alternative nozzle plates for varying spray patterns and a pressure gauge for precise monitoring of spray performance. These upgrades can further improve your boomless spray nozzle setup. For details on compatible accessories and upgrades, visit the product page or contact TTi for expert advice.
